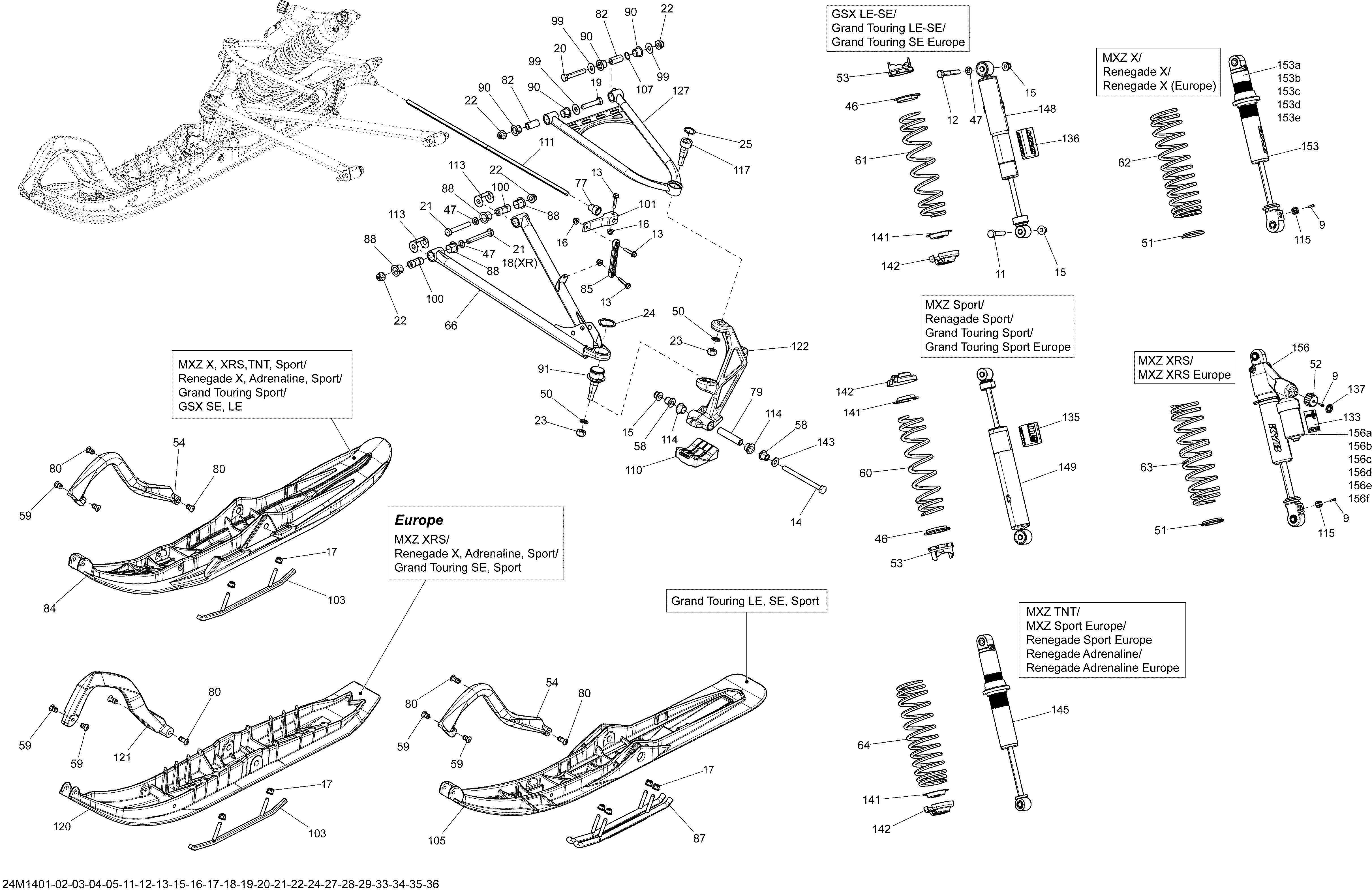

07- Front Suspension And Ski для BRP Ski-Doo GSX SE 12004TEC XR - 2014
-
№АртикулНазвание
-
11207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
12207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
13207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
14230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
15233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18250000218 Hex. Screw M10 X 75Hex. Screw M10 X 75
-
19250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
20250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
21250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
22250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
23232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
24293370035 CirclipCirclip
-
25293370070 CirclipCirclip
-
46503187500 Spring GuideSpring Guide
-
47503189564 WasherWasher
-
50503192491 WasherWasher
-
53505070150 Adjustment CamAdjustment Cam
-
54505071059 Viper Red Handle. Model-GSX LE Red-RedViper Red Handle. Model-GSX LE Red-Red
-
54505070963 Black Handle. Model-GSX SE Magnesium-MagnesiumBlack Handle. Model-GSX SE Magnesium-Magnesium
-
54505071556 Full Moon Handle. Model-GSX SE Black-BlackFull Moon Handle. Model-GSX SE Black-Black
-
58505071781 CushionCushion
-
59505071812 RetainerRetainer
-
61505072993 Deep Black SpringDeep Black Spring
-
66505072664 Black RH Lower Arm. Model-GSX LE Red-RedBlack RH Lower Arm. Model-GSX LE Red-Red
-
66505072665 Black LH Lower Arm. Model-GSX LE Red-RedBlack LH Lower Arm. Model-GSX LE Red-Red
-
66505072676 Full Moon RH Lower Arm. Model-GSX SE Black-BlackFull Moon RH Lower Arm. Model-GSX SE Black-Black
-
66505072677 Full Moon LH Lower Arm. Model-GSX SE Black-BlackFull Moon LH Lower Arm. Model-GSX SE Black-Black
-
66505072664 Black RH Lower Arm. Model-GSX SE Magnesium-MagnesiumBlack RH Lower Arm. Model-GSX SE Magnesium-Magnesium
-
66505072665 Black LH Lower Arm. Model-GSX SE Magnesium-MagnesiumBlack LH Lower Arm. Model-GSX SE Magnesium-Magnesium
-
77505072064 BushingBushing
-
79506133300 SpacerSpacer
-
80505072133 RetainerRetainer
-
82505072143 BushingBushing
-
84505072942 Black LH Pilot SkiBlack LH Pilot Ski
-
84505072943 Black RH Pilot SkiBlack RH Pilot Ski
-
85505072204 Double Ball Joint LinkDouble Ball Joint Link
-
88505072208 BushingBushing
-
90505072250 BushingBushing
-
91505072682 Lower Ball JointLower Ball Joint
-
99505072392 WasherWasher
-
100505072393 BushingBushing
-
101505072394 Stabilisator LeverStabilisator Lever
-
103860201044 Carbide Runner KitCarbide Runner Kit
-
107505072448 O-RingO-Ring
-
110505072594 Ski StopperSki Stopper
-
111505072602 StabilisatorStabilisator
-
113505072634 Wear PlateWear Plate
-
114505072690 Leg CushionLeg Cushion
-
117505072913 Upper Ball JointUpper Ball Joint
-
122505073173 Black LH Ski LegBlack LH Ski Leg
-
122505073174 Black RH Ski LegBlack RH Ski Leg
-
127505073462 Black LH Upper Arm, 42''. Model-GSX LE Red-RedBlack LH Upper Arm, 42''. Model-GSX LE Red-Red
-
127505073463 Black RH Upper Arm, 42''. Model-GSX LE Red-RedBlack RH Upper Arm, 42''. Model-GSX LE Red-Red
-
127505073464 Full Moon LH Upper Arm, 42''. Model-GSX SE Black-BlackFull Moon LH Upper Arm, 42''. Model-GSX SE Black-Black
-
127505073465 Full Moon RH Upper Arm, 42''. Model-GSX SE Black-BlackFull Moon RH Upper Arm, 42''. Model-GSX SE Black-Black
-
127505073462 Black LH Upper Arm, 42''. Model-GSX SE Magnesium-MagnesiumBlack LH Upper Arm, 42''. Model-GSX SE Magnesium-Magnesium
-
127505073463 Black RH Upper Arm, 42''. Model-GSX SE Magnesium-MagnesiumBlack RH Upper Arm, 42''. Model-GSX SE Magnesium-Magnesium
-
136516005533 Shock Decal, HPGShock Decal, HPG
-
141706200785 CapCap
-
142706200881 Spring StopperSpring Stopper
-
143503192496 WasherWasher
-
148505073139 Front ShockFront Shock
