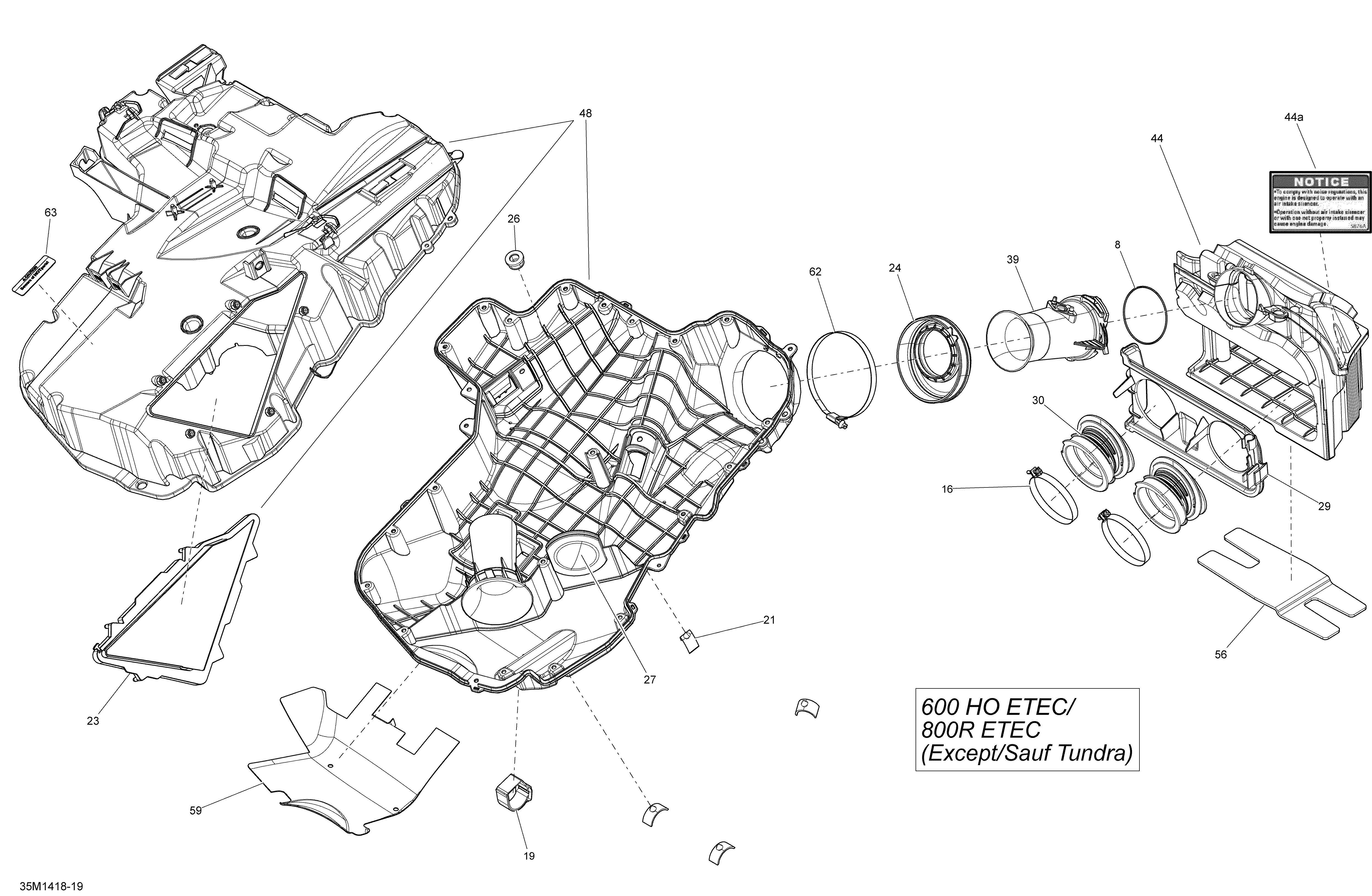

02- Air Intake System для BRP Ski-Doo GSX SE 600HOE XR - 2014
-
№АртикулНазвание
-
8293300115 O-RingO-Ring
-
16508000346 Gemi ClampGemi Clamp
-
19508000532 Velcro StripVelcro Strip
-
21508000537 StopperStopper
-
23508000546 Air FilterAir Filter
-
24508000548 BootBoot
-
26508000574 GrommetGrommet
-
27508000590 CapCap
-
29508000613 Plate AdapterPlate Adapter
-
30508000614 Air Intake AdapterAir Intake Adapter
-
39508000662 FluteFlute
-
44508000660 Primary Chamber Ass'yPrimary Chamber Ass'y
-
48508000695 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
56508000739 Insulated FoamInsulated Foam
-
59508000775 Heat shieldHeat shield
-
62514052983 Norma Gear ClampNorma Gear Clamp
-
63516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
44a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
