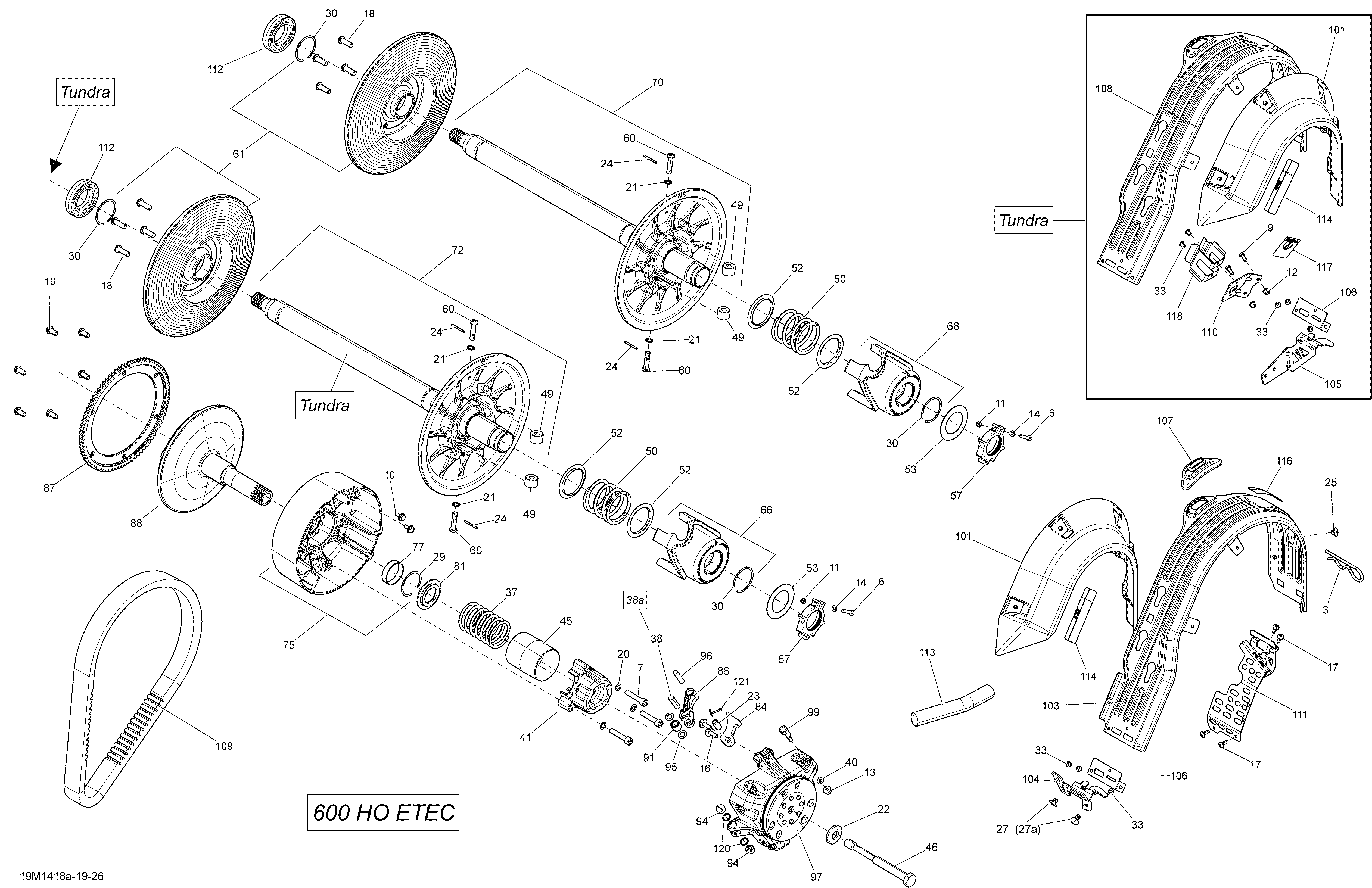

05- Pulley System 600 HO ETEC для BRP Ski-Doo GSX SE 600HOE XR - 2014
-
№АртикулНазвание
-
3114045200 Hair PinHair Pin
-
6205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
7205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14234051410 Flat Washer M5Flat Washer M5
-
16250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
17250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
18250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
19250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
20250200009 Lock Washer 8 mmLock Washer 8 mm
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22250200144 Conical Spring Washer M14Conical Spring Washer M14
-
23250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
24250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
25293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29293370037 CirclipCirclip
-
30293370049 CirclipCirclip
-
33390909200 Avex RivetAvex Rivet
-
37414689200 Spring ClutchSpring Clutch
-
38417004308 PinPin
-
40417005600 WasherWasher
-
41417007500 Spring Cover Ass'ySpring Cover Ass'y
-
45417009205 GuardGuard
-
46417120000 Drive Pulley BoltDrive Pulley Bolt
-
49417127016 RollerRoller
-
50417127137 SpringSpring
-
52417127116 Swivel AbutmentSwivel Abutment
-
53417127155 WasherWasher
-
57415129604 Calibration Ass'yCalibration Ass'y
-
60417127294 Pivot StudPivot Stud
-
61417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
68417127377 Cam Ass'yCam Ass'y
-
70417127387 Fix Flange Ass'yFix Flange Ass'y
-
75417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
77417222758 BushingBushing
-
81417222312 Spring SeatSpring Seat
-
84417222546 Ramp 414Ramp 414
-
86417222671 LeverLever
-
87417223738 Ring GearRing Gear
-
88417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
91417222947 RollerRoller
-
94417222992 Slider ShoeSlider Shoe
-
95417004302 Stopper WasherStopper Washer
-
96417223164 Lever AxleLever Axle
-
97417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
99417223501 Calibration ScrewCalibration Screw
-
101417300356 Side ProtectorSide Protector
-
103417300357 Belt GuardBelt Guard
-
104417300360 Front Belt Guard BracketFront Belt Guard Bracket
-
106417300380 ReinforcementReinforcement
-
107417300381 GuideGuide
-
109417300383 Drive BeltDrive Belt
-
111417300448 Belt Guard BracketBelt Guard Bracket
-
112504152574 Ball BearingBall Bearing
-
113219702532 Protector Tube 25mm - 210mmProtector Tube 25mm - 210mm
-
114516005503 Decal, EnglishDecal, English
-
116516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
120732401030 O-RingO-Ring
-
121250400060 Cotter PinCotter Pin
-
27a517225900 Flat WasherFlat Washer
