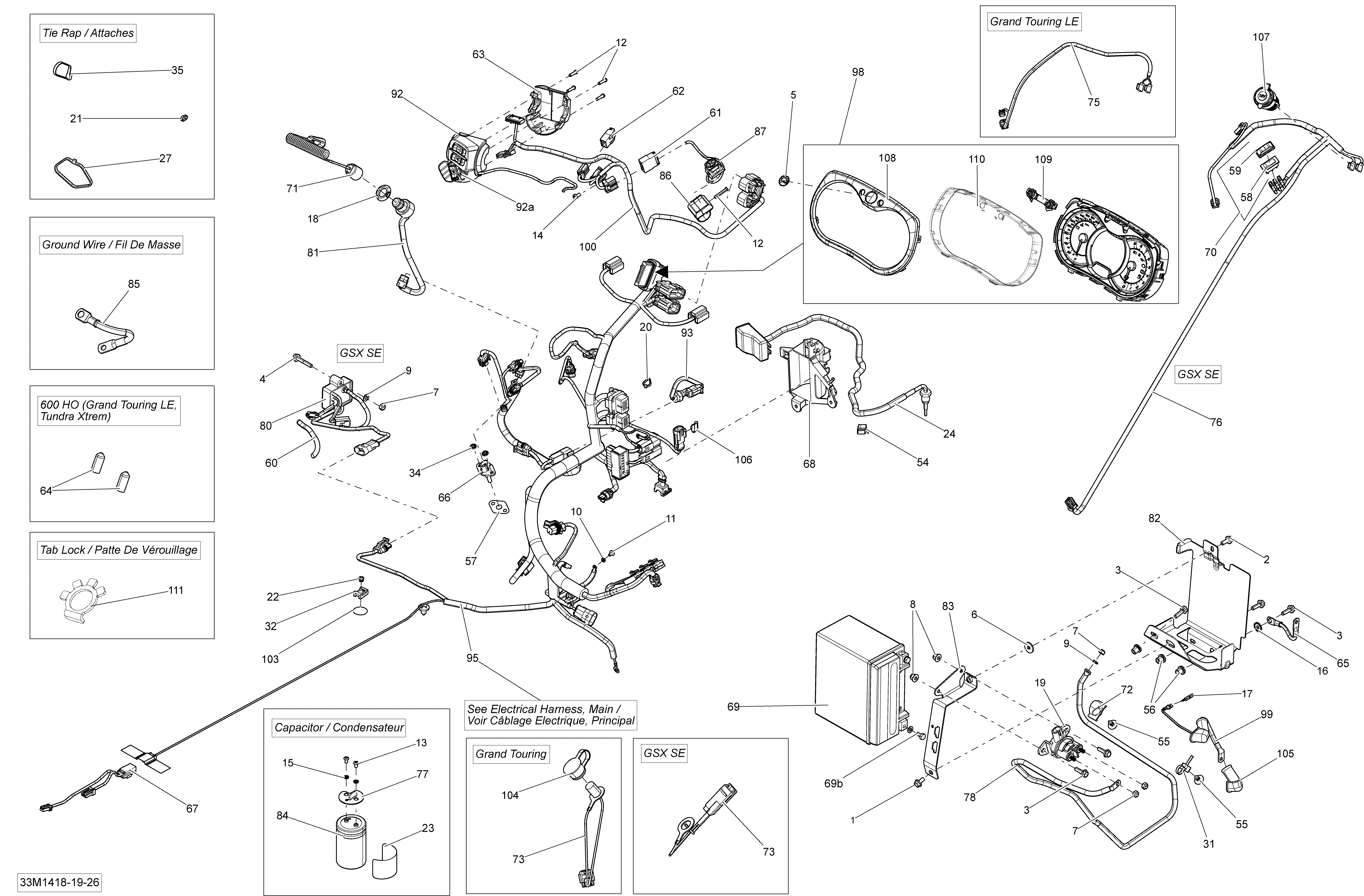

10- Electrical System 600HOETEC для BRP Ski-Doo GSX SE 600HOE XR - 2014
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6224061201 Flat WasherFlat Washer
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9234061410 Flat Washer 6 mmFlat Washer 6 mm
-
10234141601 Lock Washer 4 mmLock Washer 4 mm
-
11250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
12250000263 Torx Screw #8-18Torx Screw #8-18
-
13250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
14250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
15250200026 Lock washerLock washer
-
16250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
17278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
18278002963 Safety NutSafety Nut
-
19278003012 Starter RelayStarter Relay
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
22390909200 Avex RivetAvex Rivet
-
23516006206 Capacitor DecalCapacitor Decal
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
32515176795 ClipClip
-
34389804300 Push NutPush Nut
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
54414227300 ClipClip
-
55414644300 DartDart
-
56293450275 InsertInsert
-
57508000769 SealSeal
-
58510004413 Rocker SwitchRocker Switch
-
59510004414 Switch ProtectorSwitch Protector
-
60515175442 Tubing 6 mmTubing 6 mm
-
61515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
62515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
63515175926 Housing Switch PlateHousing Switch Plate
-
65515176358 Ground WireGround Wire
-
66515176366 Air Temperature SensorAir Temperature Sensor
-
68515176607 Capacitor SupportCapacitor Support
-
69410301203 Battery Ass'y, 18 Amperes. 600 HO ETECBattery Ass'y, 18 Amperes. 600 HO ETEC
-
70515176844 Rocker Switch Ass'yRocker Switch Ass'y
-
71515177057 DESS CapDESS Cap
-
72515177066 ClipClip
-
73515177187 Visor HarnessVisor Harness
-
76515177189 Seat HarnessSeat Harness
-
77515177193 CapCap
-
78515177208 Battery/Starter WireBattery/Starter Wire
-
80515177234 Compressor ModuleCompressor Module
-
81515177249 DESS SwitchDESS Switch
-
82515177264 Battery SupportBattery Support
-
83515177266 Battery StripBattery Strip
-
84515177272 CapacitorCapacitor
-
85515177289 Fil de MasseFil de Masse
-
86515177310 Kill Switch SupportKill Switch Support
-
87515177362 Kill SwitchKill Switch
-
92515177417 LH Switch HousingLH Switch Housing
-
92a515176088 Start/RER Button. Includes 82aStart/RER Button. Includes 82a
-
93515177471 Temperature SensorTemperature Sensor
-
95515177544 Main Harness. 600 HO ETECMain Harness. 600 HO ETEC
-
98515177590 SpeedometerSpeedometer
-
99515177576 Fuse Battery WireFuse Battery Wire
-
100515177610 Commodo HarnessCommodo Harness
-
104572103300 CapCap
-
105710000495 Protector CapProtector Cap
-
106710001038 ClipClip
-
107710001248 Outlet DCOutlet DC
-
108415129348 Gauge RingGauge Ring
-
109415129355 Speedometer ButtonSpeedometer Button
-
110415129349 LensLens
-
111514055100 Tab LockTab Lock
