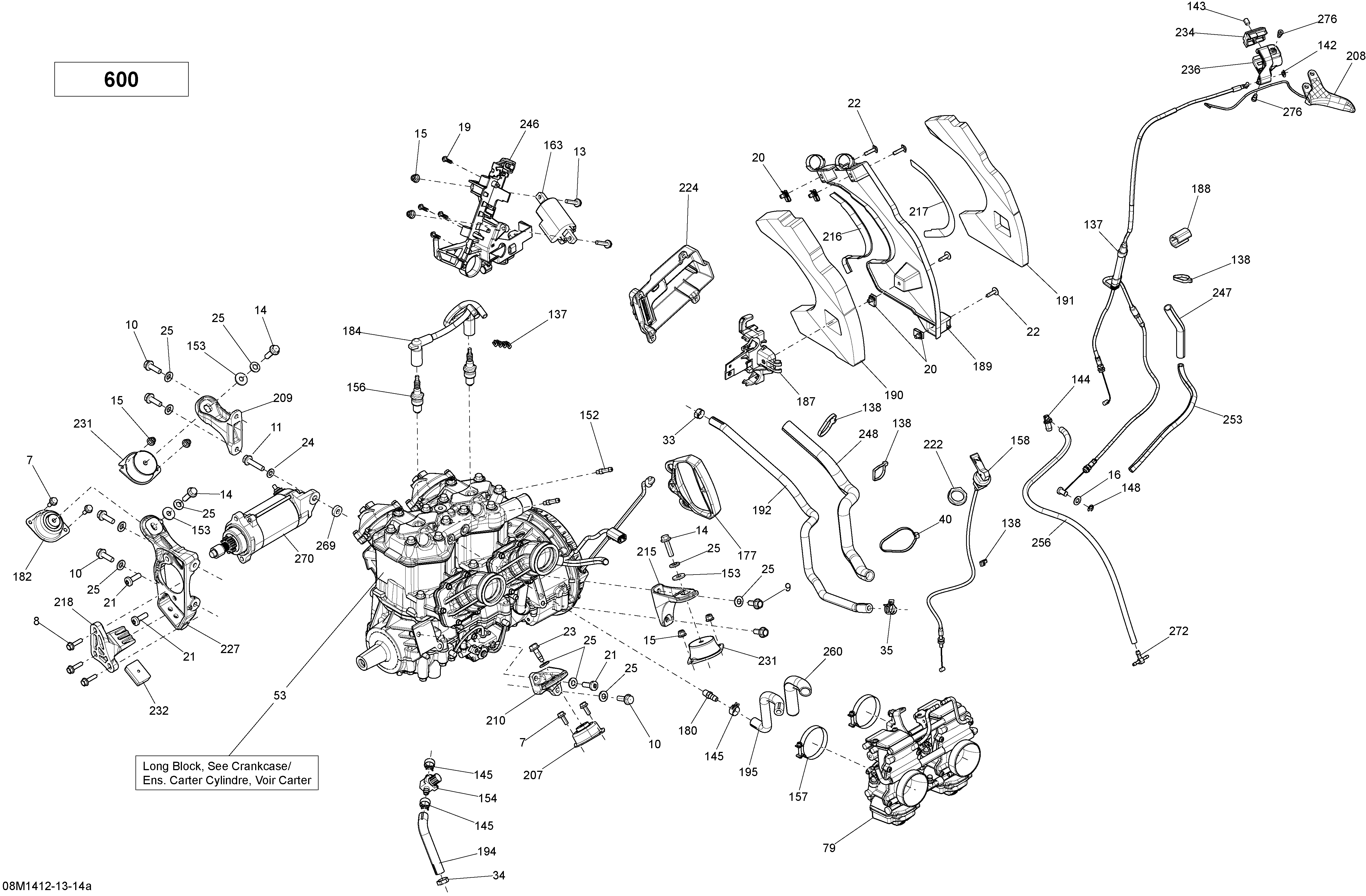

01- Engine And Engine Support _08M1412 для BRP Ski-Doo MXZ SPORT 600 REV-XP - 2014
-
№АртикулНазвание
-
7207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
8207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
9207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
10207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
11207583544 Hex Flanged Screw M8 X 35, Scotch Grip. DELEHex Flanged Screw M8 X 35, Scotch Grip. DELE
-
13207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
14207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
19241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
20250000079 Panel Nut M5 X 0.8. 600Panel Nut M5 X 0.8. 600
-
20250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
21250000248 Torx Screw M8 X 25, Scotch Grip. DELETorx Screw M8 X 25, Scotch Grip. DELE
-
21250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
22250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
23250000570 Hex. Screw M8Hex. Screw M8
-
24250200008 Flat Washer With Teflon 8 mm. DELEFlat Washer With Teflon 8 mm. DELE
-
25250200146 Conical Spring Washer M8Conical Spring Washer M8
-
25250200146 Conical Spring Washer M8Conical Spring Washer M8
-
25250200146 Conical Spring Washer M8Conical Spring Washer M8
-
25250200146 Conical Spring Washer M8Conical Spring Washer M8
-
25250200146 Conical Spring Washer M8Conical Spring Washer M8
-
33293650046 Oetiker ClampOetiker Clamp
-
34293650125 Oetiker ClampOetiker Clamp
-
35293650214 Norma Spring ClampNorma Spring Clamp
-
40293750008 Tie-Rap 350 mm. 600Tie-Rap 350 mm. 600
-
79403138815 Carburetor Kit, TM40-B418. 600Carburetor Kit, TM40-B418. 600
-
137410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
142414274500 CirclipCirclip
-
143414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
144414580700 Male ConnectorMale Connector
-
145414655700 Spring ClampSpring Clamp
-
148414753500 CirclipCirclip
-
152420924724 Hose Nipple. 600Hose Nipple. 600
-
153503183200 Washer, YellowWasher, Yellow
-
154512059324 Valve 5/16''Valve 5/16''
-
156415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
157512059835 Gemi ClampGemi Clamp
-
158512060672 Choke CableChoke Cable
-
163512059968 Ignition CoilIgnition Coil
-
177512060136 Starter GripStarter Grip
-
180512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
182512060387 Rubber MountRubber Mount
-
184512060291 CableCable
-
187512060298 Solenoid SupportSolenoid Support
-
188512060313 ProtectorProtector
-
189512060338 Noise ShieldNoise Shield
-
190512060341 Inner Noise FoamInner Noise Foam
-
191512060342 Outer Noise FoamOuter Noise Foam
-
192512060347 Hose FormedHose Formed
-
194512060353 Hose FormedHose Formed
-
195512060355 Hose Formed. 600Hose Formed. 600
-
207512060448 Rubber MountRubber Mount
-
208512060616 Throttle HandleThrottle Handle
-
209512060469 Front Support, MAGFront Support, MAG
-
210512060478 Rear Support, PTORear Support, PTO
-
215512060559 Rear Support, MAGRear Support, MAG
-
216512060574 Heat ShieldHeat Shield
-
217512060575 Heat ShieldHeat Shield
-
218512060576 Stopper SupportStopper Support
-
222512060671 Plastic NutPlastic Nut
-
224512060680 Calibrated Module, 600. 600Calibrated Module, 600. 600
-
227512060699 Front Support, PTO. 600Front Support, PTO. 600
-
231512060729 Rubber MountRubber Mount
-
232512060627 Stopper. 600Stopper. 600
-
234512060859 Upper HousingUpper Housing
-
236512060860 Lower HousingLower Housing
-
237512060886 Throttle Cable. MX-ZThrottle Cable. MX-Z
-
246512060924 Coils SupportCoils Support
-
248415079900 Tubing 10 mmTubing 10 mm
-
248415079900 Tubing 10 mmTubing 10 mm
-
253515175442 Tubing 6 mmTubing 6 mm
-
256415080200 Hose, Polyurethane. 600Hose, Polyurethane. 600
-
260415080000 Tubing 16 mmTubing 16 mm
-
269515176500 Washer. 600 DELEWasher. 600 DELE
-
270515177389 Starter. DELEStarter. DELE
-
272572045500 T-Fitting. 600T-Fitting. 600
-
276732601143 Flanged ScrewFlanged Screw
