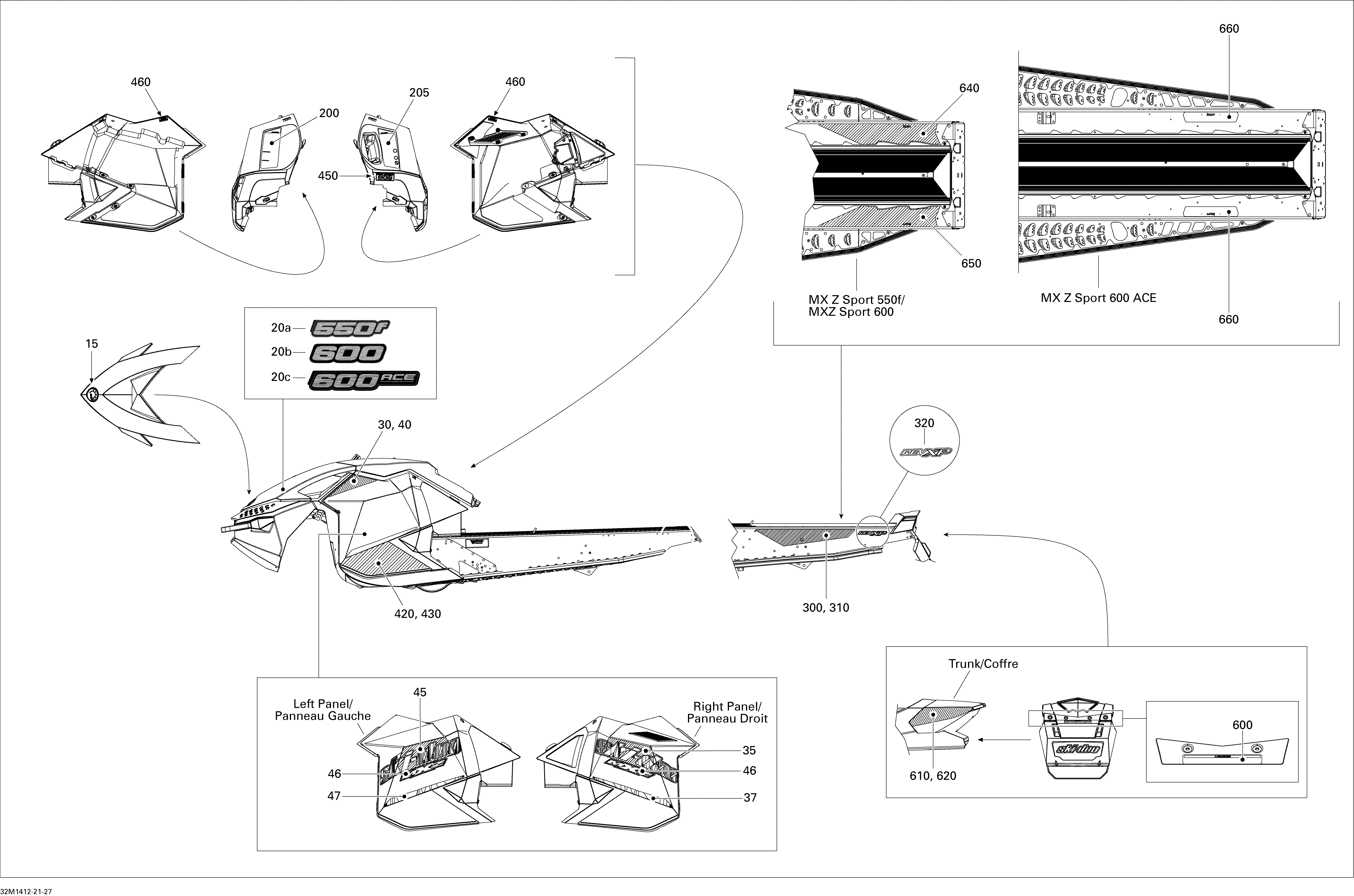

09- Decals _32M1412 для BRP Ski-Doo MXZ SPORT 600 REV-XP - 2014
-
№АртикулНазвание
-
15219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
20b516005991 Hood Decal, Rotax 600Hood Decal, Rotax 600
-
30516005240 RH Upper Side DecalRH Upper Side Decal
-
35516005255 RH Side DecalRH Side Decal
-
37516005259 RH Lower Side DecalRH Lower Side Decal
-
40516005239 LH Upper Side DecalLH Upper Side Decal
-
45516005254 LH Side DecalLH Side Decal
-
46516005256 Side Decal, MX-ZSide Decal, MX-Z
-
47516005258 LH Lower Side DecalLH Lower Side Decal
-
200516005227 Warning Decal, SecurityWarning Decal, Security
-
205516005228 Warning Decal, SecurityWarning Decal, Security
-
300516006261 RH Frame DecalRH Frame Decal
-
310516006260 LH Frame DecalLH Frame Decal
-
320516006311 Decal, REV XPDecal, REV XP
-
420516006176 RH Lower DecalRH Lower Decal
-
430516006175 LH Lower DecalLH Lower Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
600516006117 Warning Decal, TrackWarning Decal, Track
-
610516005267 RH Cover DecalRH Cover Decal
-
620516005266 LH Cover DecalLH Cover Decal
-
640516005994 RH Frame Top DecalRH Frame Top Decal
-
650516005993 LH Frame Top DecalLH Frame Top Decal
