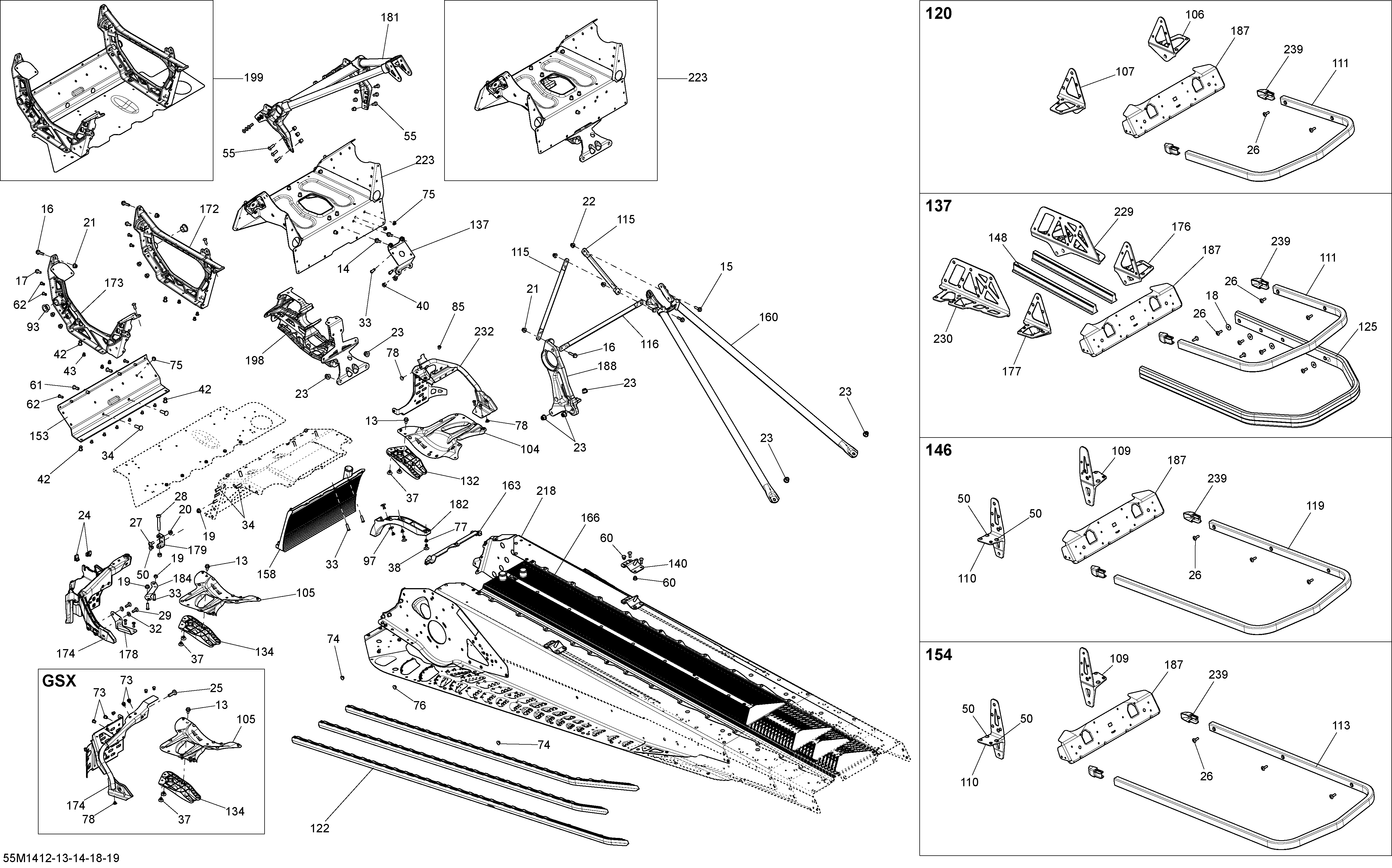

09- Frame And Components _55M1412 для BRP Ski-Doo MXZ SPORT 600 REV-XP - 2014
-
№АртикулНазвание
-
13207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
14207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
17210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18224061201 Flat WasherFlat Washer
-
19232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
27250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
28250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
29250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
32250200039 Flat WasherFlat Washer
-
33250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
34250300038 Clinch StudClinch Stud
-
37293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
38293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
40293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
42293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
43293150144 Stavex RivetStavex Rivet
-
50293150147 Hemlock RivetHemlock Rivet
-
55293150146 Henrob RivetHenrob Rivet
-
60293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
61293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
62293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
74293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
75293730053 Black Dart 5 mmBlack Dart 5 mm
-
76293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
78293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
85390909200 Avex RivetAvex Rivet
-
93505073317 Leg CushionLeg Cushion
-
97517124300 WasherWasher
-
104518324874 RH ReinforcementRH Reinforcement
-
105518324875 LH ReinforcementLH Reinforcement
-
106518324885 RH Slide BracketRH Slide Bracket
-
107518324886 LH Slide BracketLH Slide Bracket
-
111518324980 Clear Rear BumperClear Rear Bumper
-
115518325114 Upper Column SupportUpper Column Support
-
116518325115 Center Column SupportCenter Column Support
-
122518324812 RH RollerRH Roller
-
122518324813 LH RollerLH Roller
-
132518325782 RH DeflectorRH Deflector
-
134518325783 LH DeflectorLH Deflector
-
137518325943 MAG Engine SupportMAG Engine Support
-
140518325973 RH Rear BaseRH Rear Base
-
140518325974 LH Rear BaseLH Rear Base
-
153518326198 Front MemberFront Member
-
158518326485 Front RadiatorFront Radiator
-
160518326559 Rear MemberRear Member
-
163518326656 SealSeal
-
166518327580 Rear Radiator 120''Rear Radiator 120''
-
172518326795 RH MemberRH Member
-
173518326796 LH MemberLH Member
-
174518326820 LH StirupLH Stirup
-
178518326960 SupportSupport
-
179518326961 U-AttachU-Attach
-
181518326970 Front MemberFront Member
-
182518326973 Front ProtectorFront Protector
-
184518326986 AttachAttach
-
187518327105 Rear CapRear Cap
-
188518327133 Driven Pulley SupportDriven Pulley Support
-
198518327475 Front Suspension SupportFront Suspension Support
-
199518327567 Front E ModuleFront E Module
-
218415129808 Frame 120Frame 120
-
223518327721 ''S'' Module''S'' Module
-
232518327863 RH StirupRH Stirup
-
239520000567 Full Moon CapFull Moon Cap
