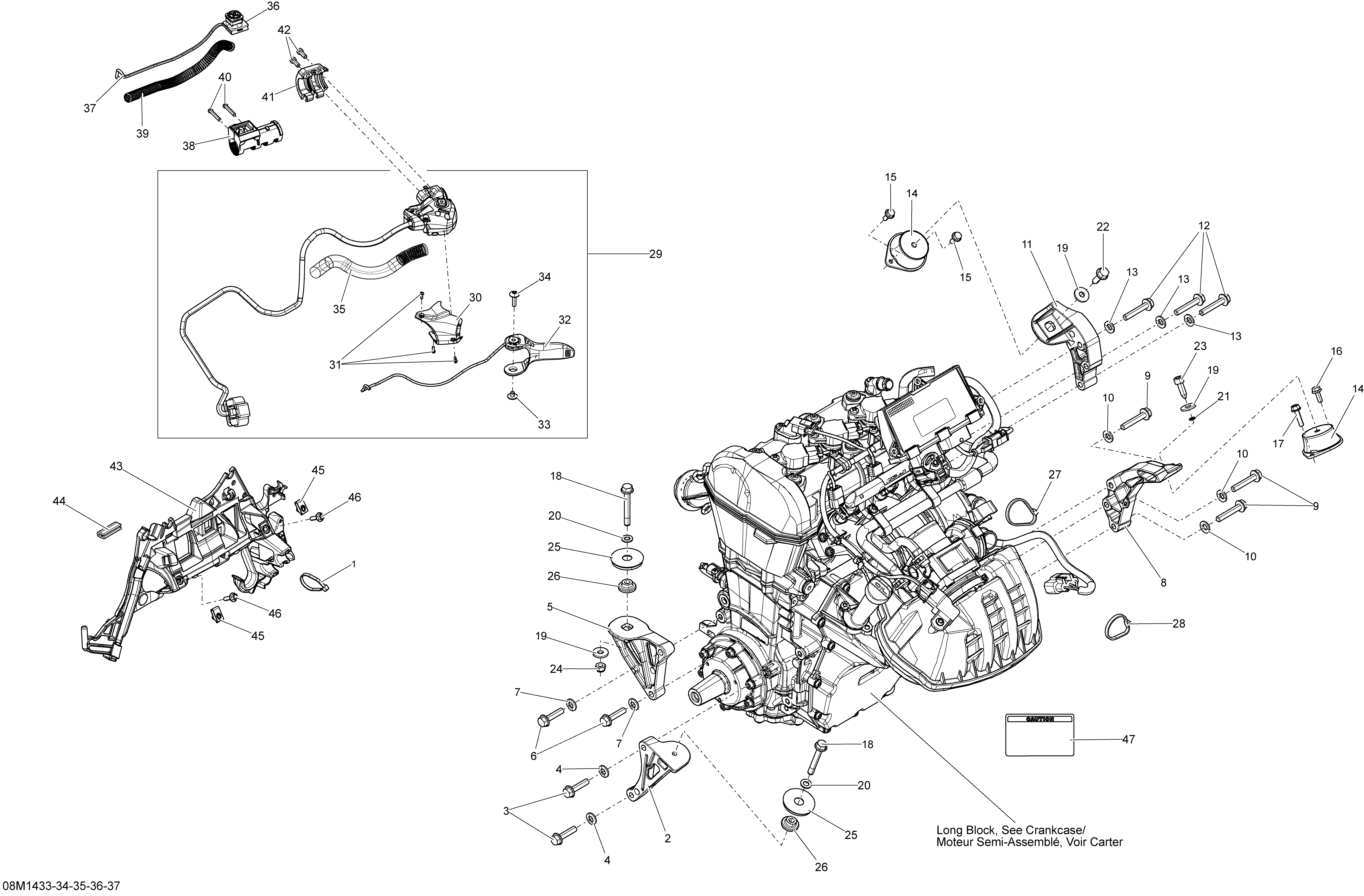

01- Engine And Engine Support _08M1433 для BRP Ski-Doo MXZ TNT 900ACE XS - 2014
-
№АртикулНазвание
-
1293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2512060660 Rear Support, PTORear Support, PTO
-
3207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
4250200146 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support, PTOFront Support, PTO
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7250200146 Conical Spring Washer M8Conical Spring Washer M8
-
8512060894 Rear Support, MAGRear Support, MAG
-
9207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
10250200146 Conical Spring Washer M8Conical Spring Washer M8
-
11512060663 Front Support, MAGFront Support, MAG
-
12207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
13250200146 Conical Spring Washer M8Conical Spring Washer M8
-
14512060729 Rubber MountRubber Mount
-
15207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
18207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
19503183200 Washer, YellowWasher, Yellow
-
20250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
21293300123 O-RingO-Ring
-
22250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
23250000639 Cone Screw, M8 X 25Cone Screw, M8 X 25
-
24232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
25512060826 StopperStopper
-
26512060285 SpacerSpacer
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29512060990 Accelerator Housing Ass'y. Includes 29 to 35Accelerator Housing Ass'y. Includes 29 to 35
-
30512060862 CapCap
-
31250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
32415130047 Handle Assembly kitHandle Assembly kit
-
35415129879 Corrugated TubeCorrugated Tube
-
36515177362 Kill Switch. Includes 36 to 37Kill Switch. Includes 36 to 37
-
37515175232 Male TerminalMale Terminal
-
38512060844 SupportSupport
-
39515177716 Tubing 11 mmTubing 11 mm
-
40250000263 Torx Screw #8-18Torx Screw #8-18
-
41512060803 Front HousingFront Housing
-
42250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
43512060994 Module SupportModule Support
-
44271000110 Protection TrimProtection Trim
-
45250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
46207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
47516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
