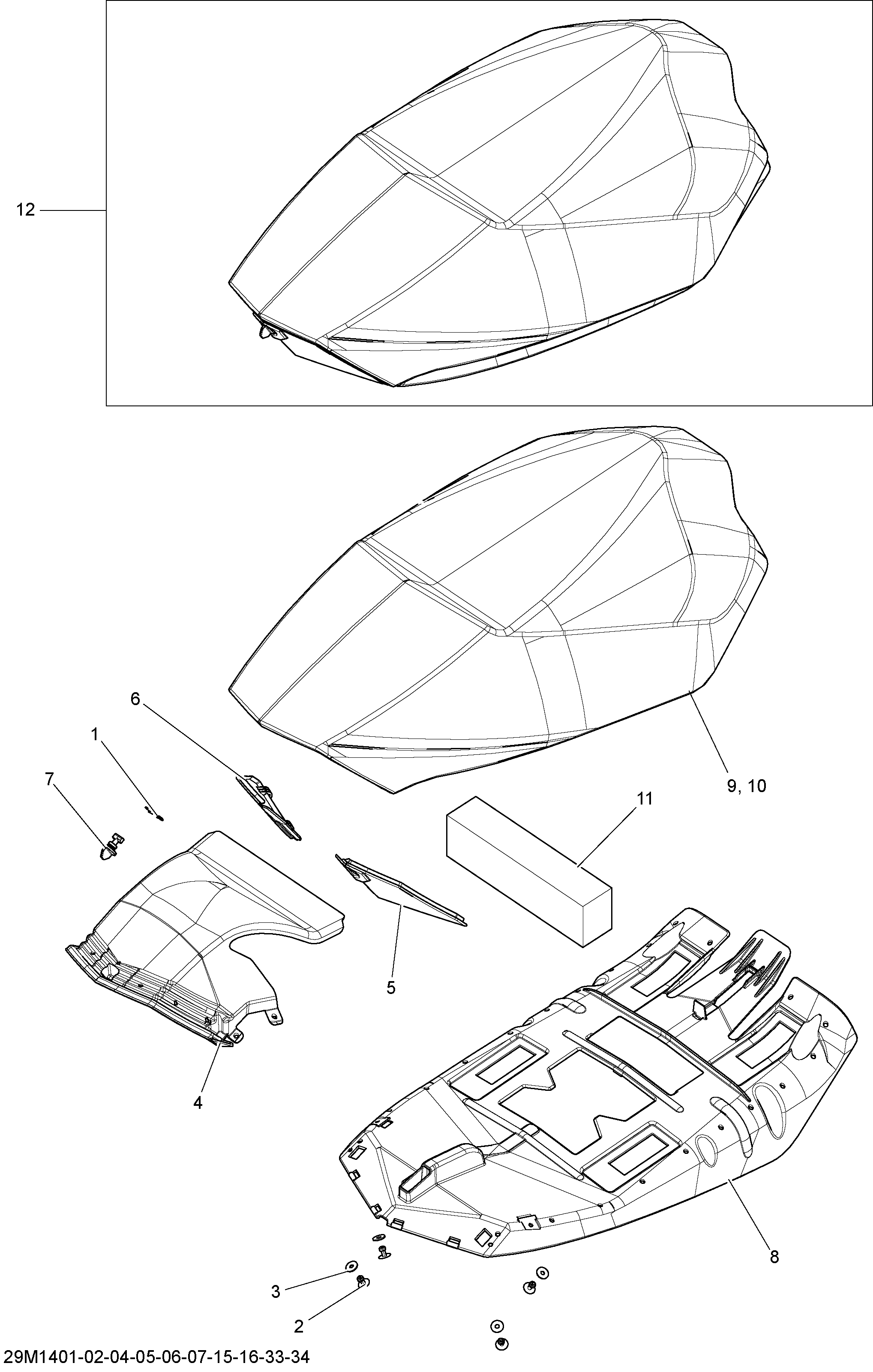

09- Seat _29M1433 для BRP Ski-Doo MXZ TNT 900ACE XS - 2014
-
№АртикулНазвание
-
1250400055 Hairpin Clip. MX-Z TNT XSHairpin Clip. MX-Z TNT XS
-
2293150104 Pop Rivet 3/16''. MX-Z TNT XSPop Rivet 3/16''. MX-Z TNT XS
-
3391301600 Washer. MX-Z TNT XSWasher. MX-Z TNT XS
-
4510005413 Seat Box. MX-Z TNT XSSeat Box. MX-Z TNT XS
-
5510005414 RH Door. MX-Z TNT XSRH Door. MX-Z TNT XS
-
6510005415 LH Door. MX-Z TNT XSLH Door. MX-Z TNT XS
-
7510005416 Lock. MX-Z TNT XSLock. MX-Z TNT XS
-
8510005417 Seat Base. MX-Z TNT XSSeat Base. MX-Z TNT XS
-
9510005477 Seat Foam. MX-Z TNT XSSeat Foam. MX-Z TNT XS
-
10510005673 Seat Cover. MX-Z TNT XSSeat Cover. MX-Z TNT XS
-
11510005504 Foam. MX-Z TNT XSFoam. MX-Z TNT XS
