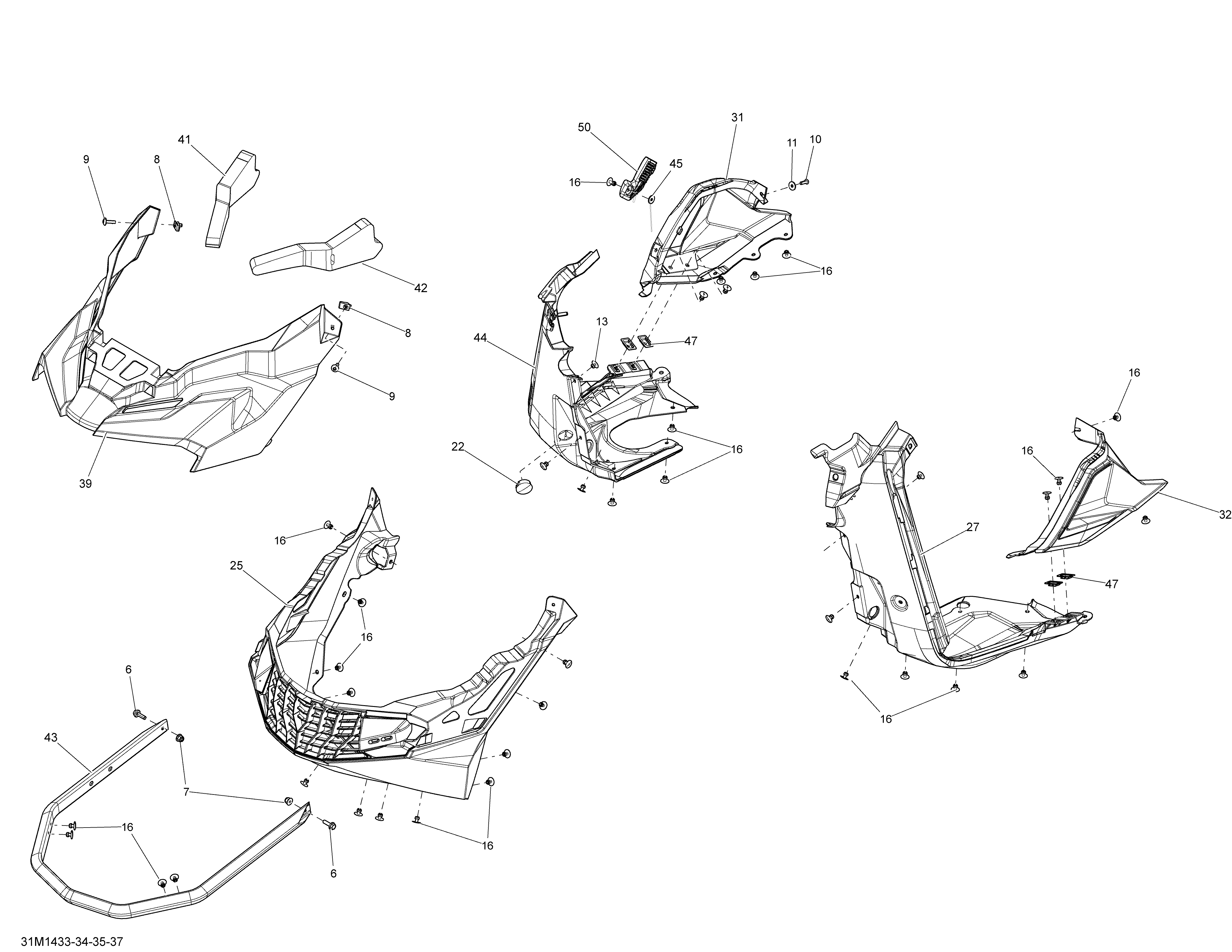

09- Bottom Pan _31M1433 для BRP Ski-Doo MXZ TNT 900ACE XS - 2014
-
№АртикулНазвание
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
9250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
10250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
11250200025 Washer M5Washer M5
-
13293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22414916600 Nylon CapNylon Cap
-
25502007172 Deep Black Front Bottom PanDeep Black Front Bottom Pan
-
27502007175 Deep Black LH Bottom PanDeep Black LH Bottom Pan
-
31502007227 Yellow RH Side Bottom Pan PanelYellow RH Side Bottom Pan Panel
-
32502007228 Yellow LH Side Bottom Pan PanelYellow LH Side Bottom Pan Panel
-
39502007173 Deep Black Bottom Pan CapDeep Black Bottom Pan Cap
-
41502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
42502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
43502007281 Black Front BumperBlack Front Bumper
-
44502007340 Deep Black RH Bottom PanDeep Black RH Bottom Pan
-
45517124300 WasherWasher
-
47517305109 Rivet PlateRivet Plate
-
50517305280 Stopper BumperStopper Bumper
