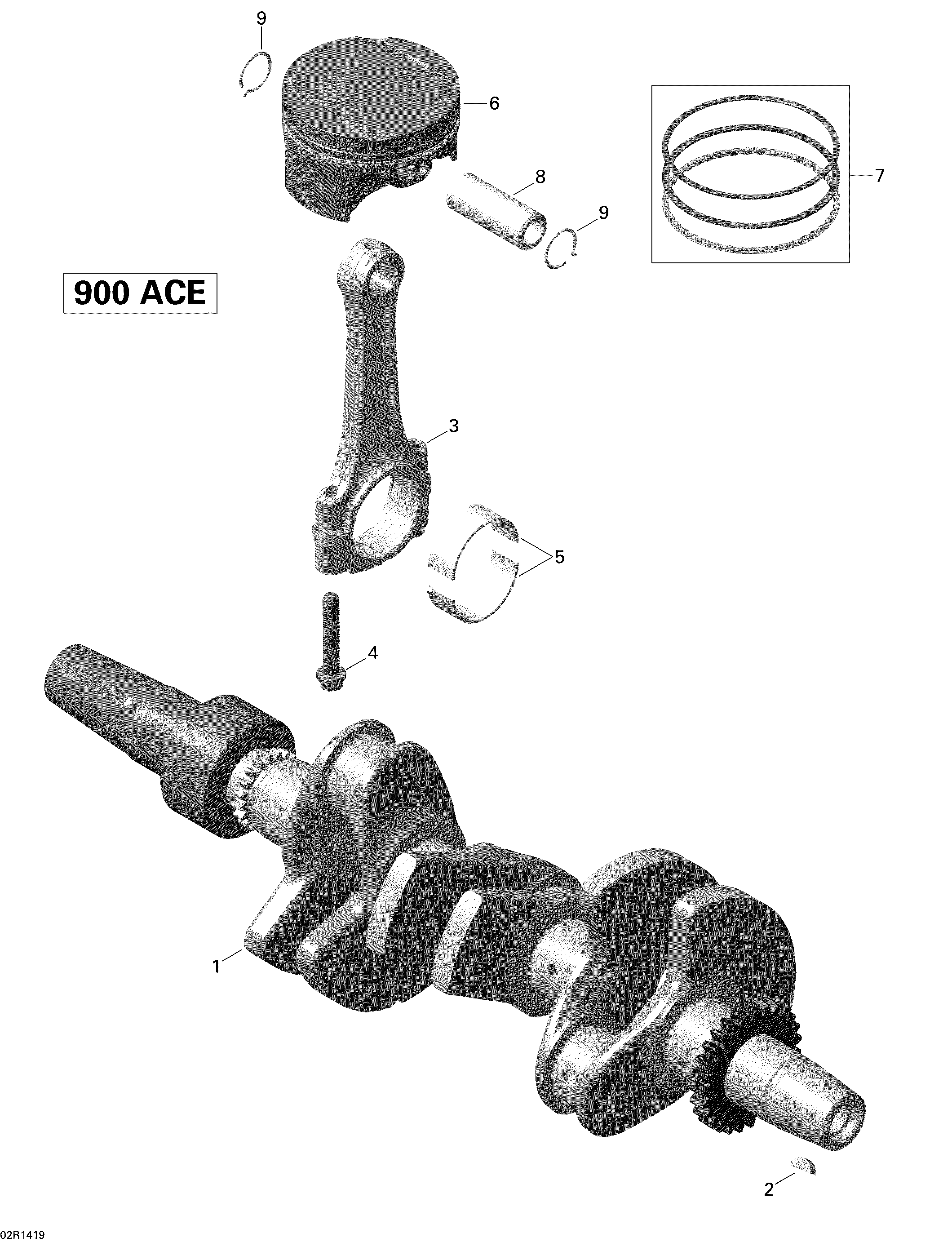

01- Crankshaft And Pistons для BRP Ski-Doo RENEGADE ADRENALINE 900ACE XS - 2014
-
№АртикулНазвание
-
1420819786 Crankshaft Ass'y. Includes 1 to 2Crankshaft Ass'y. Includes 1 to 2
-
2420246571 Woodruff KeyWoodruff Key
-
3420917705 Connecting Rod Ass'y. Includes 3 to 4Connecting Rod Ass'y. Includes 3 to 4
-
4420641790 Connecting Rod Screw M7 X 1Connecting Rod Screw M7 X 1
-
5420933191 Plain BearingPlain Bearing
-
6420892825 Piston Ass'y, 73.958 mm. Includes 6 to 7Piston Ass'y, 73.958 mm. Includes 6 to 7
-
7420892824 Piston Ring SetPiston Ring Set
-
8420916510 Piston PinPiston Pin
-
9420845810 Piston CirclipPiston Circlip
