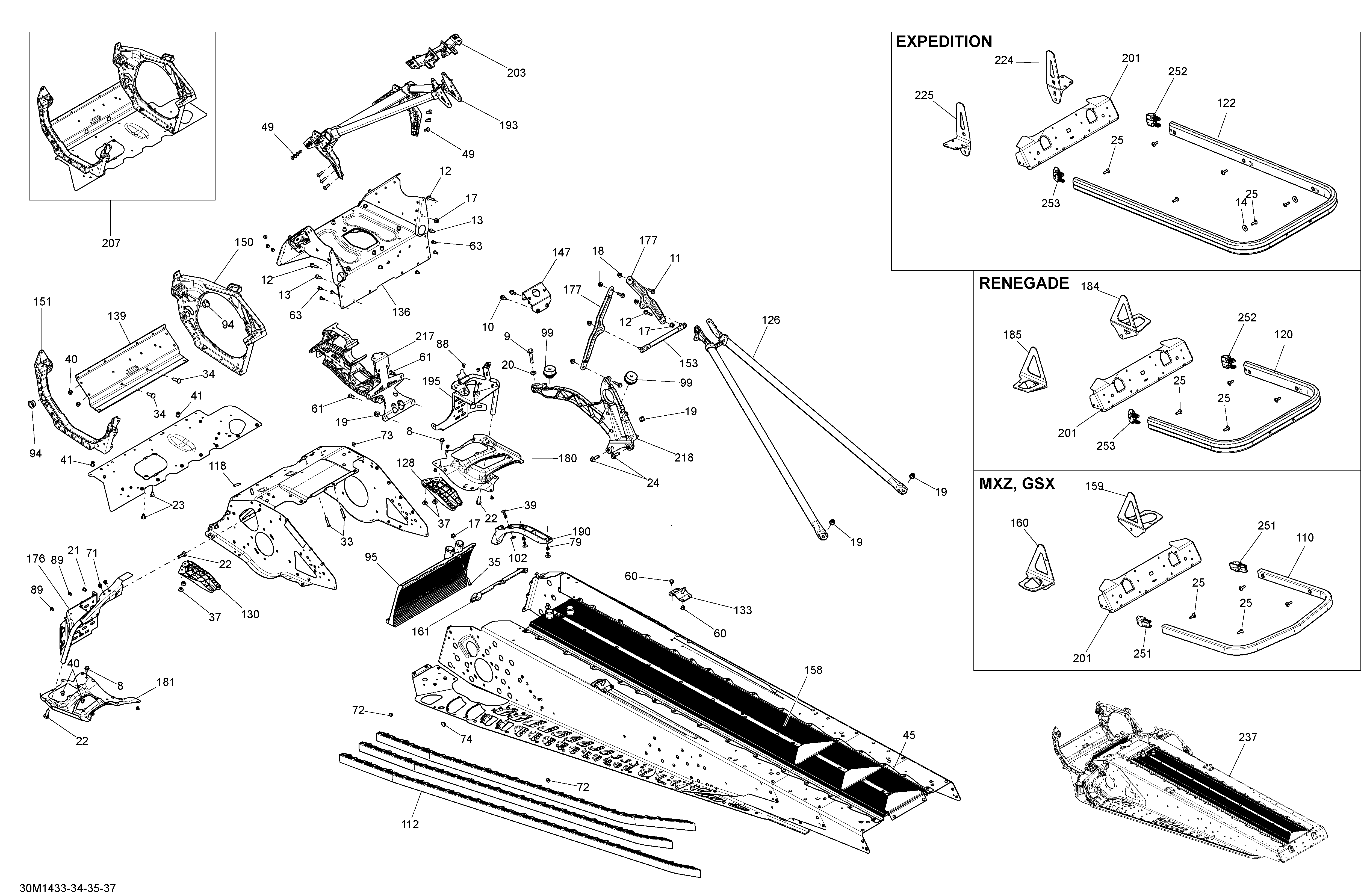

09- Frame 137 для BRP Ski-Doo RENEGADE ADRENALINE 900ACE XS - 2014
-
№АртикулНазвание
-
8207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
9207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
10207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
11207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
23250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
24250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
25250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
33250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
34250300038 Clinch StudClinch Stud
-
35293450275 InsertInsert
-
37293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
39293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
40293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
41293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
45293150144 Stavex RivetStavex Rivet
-
49293150146 Henrob RivetHenrob Rivet
-
60293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
61293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
63293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
71293450268 InsertInsert
-
72293730047 Black Dart 8 mmBlack Dart 8 mm
-
73293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
74293730060 Black Dart 10 mmBlack Dart 10 mm
-
88390909100 Avex RivetAvex Rivet
-
89390909200 Avex RivetAvex Rivet
-
94505073317 Leg CushionLeg Cushion
-
95518327907 Front Radiator Ass'yFront Radiator Ass'y
-
99512060295 Rubber MountRubber Mount
-
102517124300 WasherWasher
-
112518327093 RH RollerRH Roller
-
112518327094 LH RollerLH Roller
-
118518325560 Adhesive PatchAdhesive Patch
-
120518326414 Black Rear BumperBlack Rear Bumper
-
126518326559 Rear MemberRear Member
-
128518325782 RH DeflectorRH Deflector
-
130518325783 LH DeflectorLH Deflector
-
133518325973 RH Rear BaseRH Rear Base
-
133518325974 LH Rear BaseLH Rear Base
-
136518327721 ''S'' Module''S'' Module
-
139518326198 Front MemberFront Member
-
147518326178 Engine SupportEngine Support
-
150518326328 RH Side MemberRH Side Member
-
151518326330 LH Side MemberLH Side Member
-
153518326355 Center Column SupportCenter Column Support
-
158518326641 Rear Radiator Ass'yRear Radiator Ass'y
-
161518326656 SealSeal
-
176518327937 LH StirupLH Stirup
-
177518326848 Upper Column SupportUpper Column Support
-
180518326937 RH ReinforcementRH Reinforcement
-
181518326938 LH ReinforcementLH Reinforcement
-
184518326954 RH Suspension BracketRH Suspension Bracket
-
185518326955 LH Suspension BracketLH Suspension Bracket
-
190518326973 Front ProtectorFront Protector
-
193518327565 Front MemberFront Member
-
195518327014 RH StirupRH Stirup
-
201518327105 Rear CapRear Cap
-
203518327145 Sub A SupportSub A Support
-
207518328078 'E'' Module'E'' Module
-
217518327475 Front Suspension SupportFront Suspension Support
-
218518327535 Brace Ass'yBrace Ass'y
-
237415129841 Frame RENEGADEFrame RENEGADE
-
252520000965 Black RH CapBlack RH Cap
-
253520000964 Black LH CapBlack LH Cap
