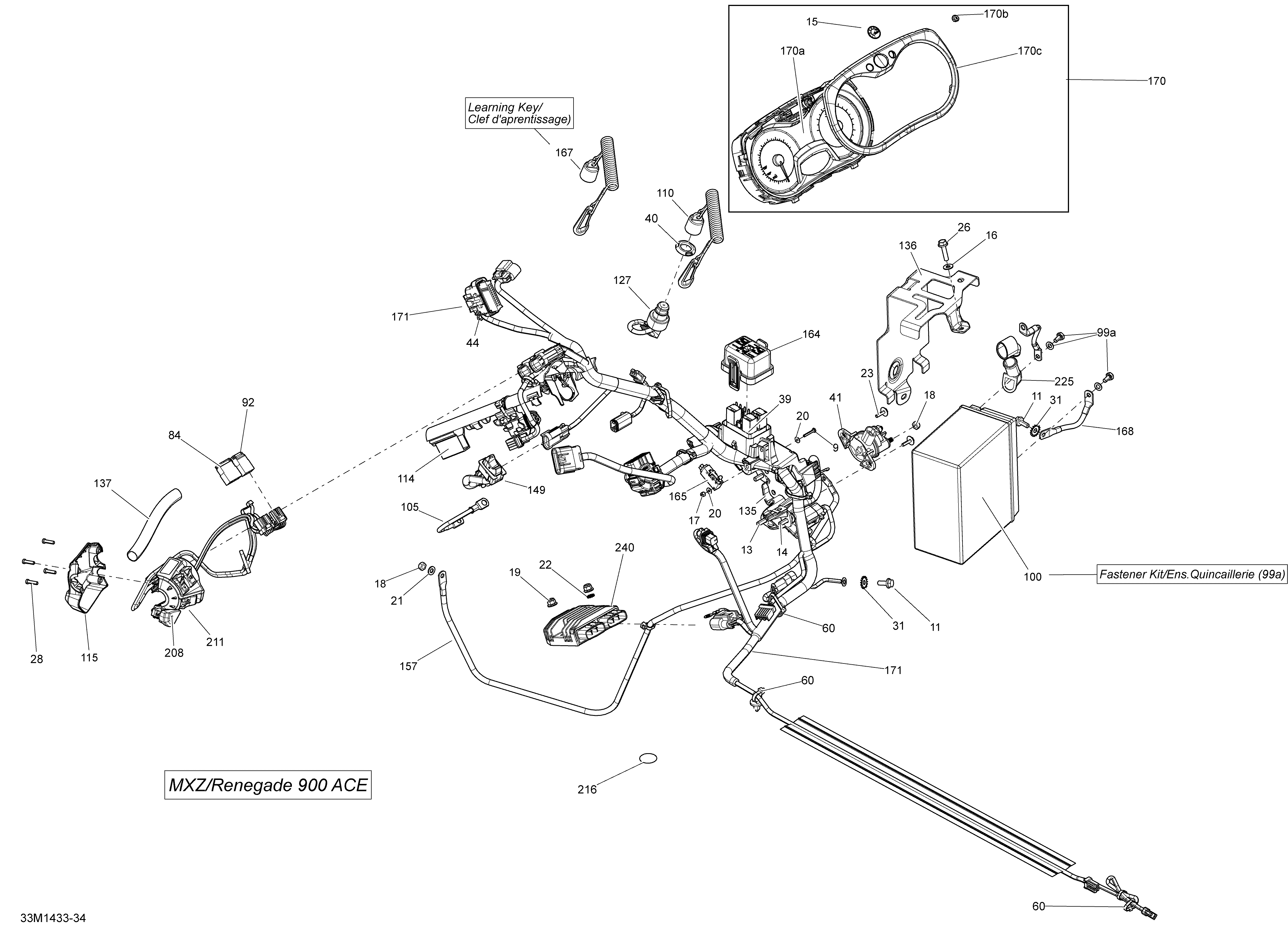

10- Electrical System для BRP Ski-Doo RENEGADE ADRENALINE 900ACE XS - 2014
-
№АртикулНазвание
-
9207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
11207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
15219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
16224061121 Flat WasherFlat Washer
-
17232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
21234061410 Flat Washer 6 mmFlat Washer 6 mm
-
22234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
23250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
26250000504 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
28250000671 Torx ScrewTorx Screw
-
29250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
30250200039 Flat WasherFlat Washer
-
31250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
39278002824 Case Ass'yCase Ass'y
-
40278002963 Safety NutSafety Nut
-
41278003012 Starter RelayStarter Relay
-
44293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
60414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
84515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
92515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
100296000295 Battery 18 AmpBattery 18 Amp
-
105515177014 Ground WireGround Wire
-
110515177057 DESS CapDESS Cap
-
114515177134 Connector PlateConnector Plate
-
115515177147 Housing PlateHousing Plate
-
127515177249 DESS SwitchDESS Switch
-
135515177347 PlatePlate
-
136515177348 SupportSupport
-
137415129879 Corrugated TubeCorrugated Tube
-
149515177394 SwitchSwitch
-
157515177427 Battery WireBattery Wire
-
164515177671 Fuse Box CoverFuse Box Cover
-
165515177460 Switch Ass'ySwitch Ass'y
-
167515177480 Key (Learning)Key (Learning)
-
168515177500 Ground WireGround Wire
-
170515177597 SpeedometerSpeedometer
-
171515177591 Frame HarnessFrame Harness
-
208515176088 Start/RER ButtonStart/RER Button
-
211515177613 HousingHousing
-
216518325560 Adhesive PatchAdhesive Patch
-
225710000495 Protector CapProtector Cap
-
240710001103 Voltage RegulatorVoltage Regulator
-
170a415129349 LensLens
-
170b415129355 Speedometer ButtonSpeedometer Button
-
170c415129370 Gauge RingGauge Ring
-
99a295500849 Battery Fastener KitBattery Fastener Kit
