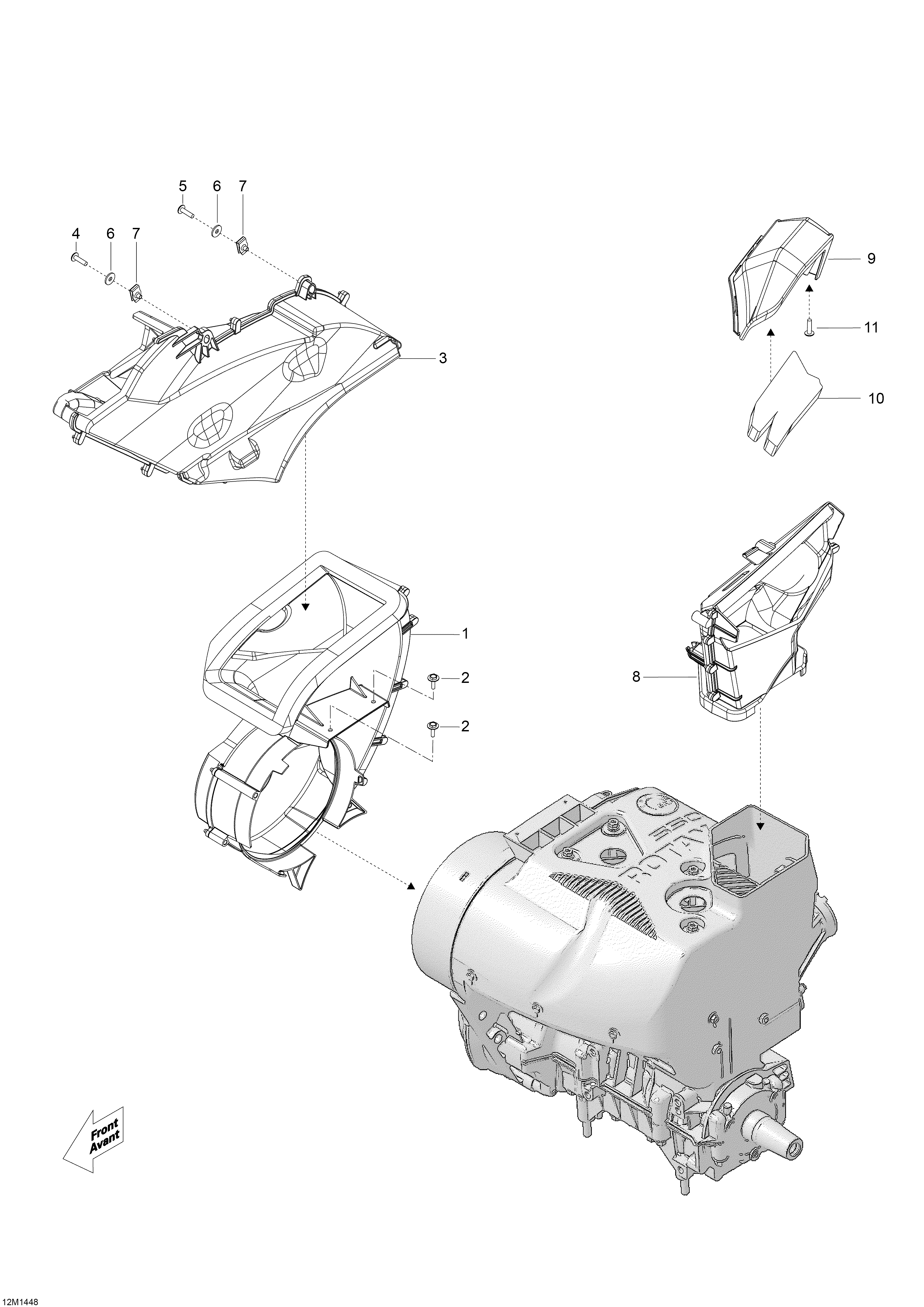

01- Cooling System для BRP Ski-Doo Skandic SWT 550F XU - 2014
-
№АртикулНазвание
-
1509000840 Inlet DuctInlet Duct
-
2250000377 Plastite Screw Type K-40 M4 X 16Plastite Screw Type K-40 M4 X 16
-
3509000684 Chamber Ass'yChamber Ass'y
-
4250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
5250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
6391301600 WasherWasher
-
7250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
8509000683 Duct-Outlet Ass'yDuct-Outlet Ass'y
-
9509000687 Air Out DeflecAir Out Deflec
-
10509000831 Foam-InFoam-In
-
11293700048 Screw Plastofast Mp 6 X 16 PzScrew Plastofast Mp 6 X 16 Pz
