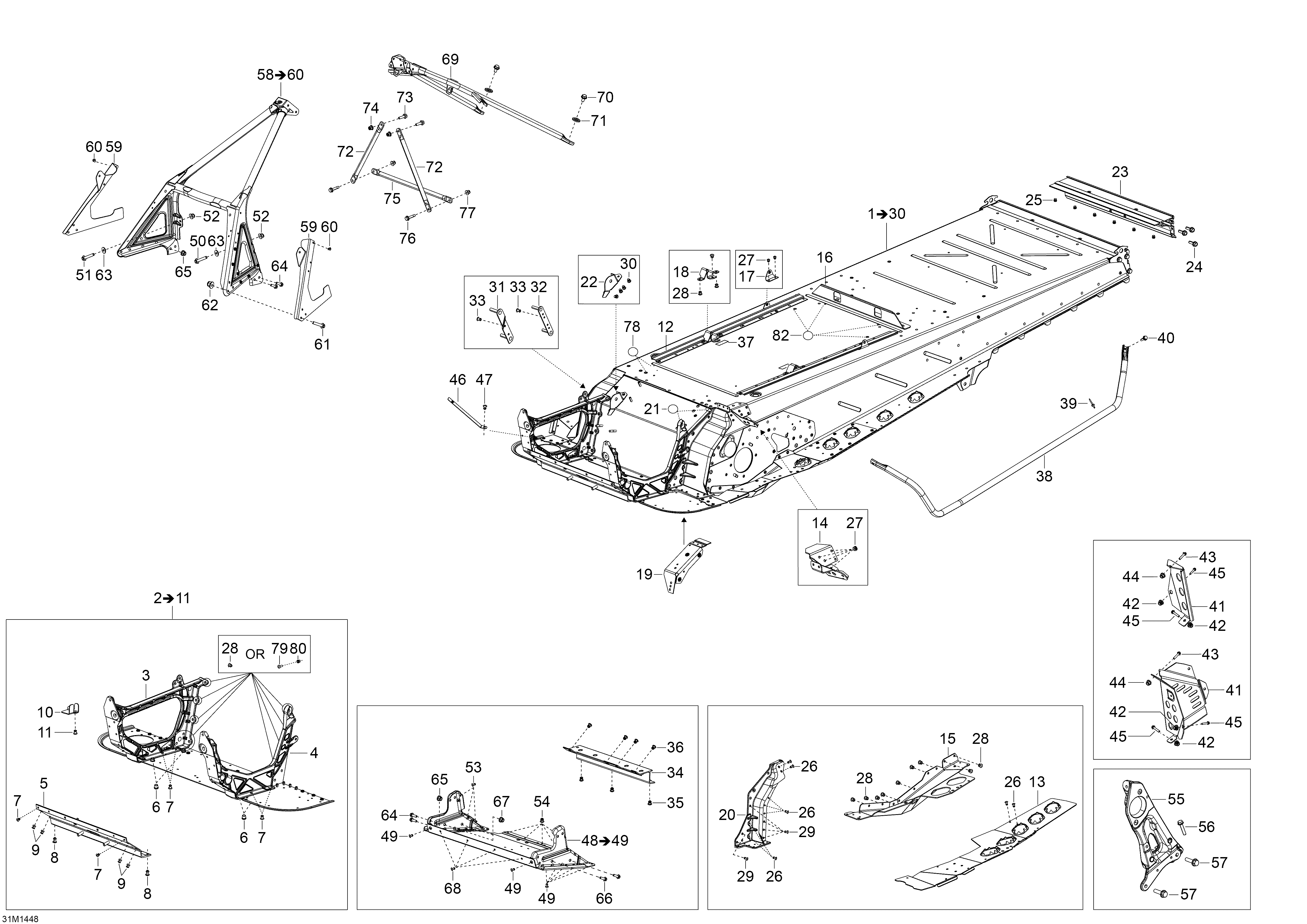

09- Frame для BRP Ski-Doo Skandic SWT 550F XU - 2014
-
№АртикулНазвание
-
1518327480 Frame. Includes 1 To 30Frame. Includes 1 To 30
-
2518326515 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326795 RH MemberRH Member
-
4518325558 LH MemberLH Member
-
5518325818 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10518327219 Muffler SupportMuffler Support
-
11293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
12518326107 Fastening railFastening rail
-
13518327481 Footrest LHFootrest LH
-
13518327482 Footrest RHFootrest RH
-
14518327884 Fastening BracketFastening Bracket
-
16518327003 Battery SupportBattery Support
-
17518327457 Seat Box BracketSeat Box Bracket
-
18518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
18518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
19518328096 Clinch Nut PlateClinch Nut Plate
-
20518325643 Frame Corner LHFrame Corner LH
-
20518325644 Frame Corner RHFrame Corner RH
-
21518325560 Adhesive PatchAdhesive Patch
-
22518326520 Rh.SupportRh.Support
-
23518325645 Rear ProfileRear Profile
-
24207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
25293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
26390909100 Avex RivetAvex Rivet
-
27390909200 Avex RivetAvex Rivet
-
28293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
29293150183 RivetRivet
-
30293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518326719 Engine SupportEngine Support
-
35293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
36390909200 Avex RivetAvex Rivet
-
37518326357 Rubber CoverRubber Cover
-
38518327595 Footboard Support Tube LHFootboard Support Tube LH
-
38518327596 Footboard Support Tube RHFootboard Support Tube RH
-
39390909100 Avex RivetAvex Rivet
-
40207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
41518327445 Toe Hook LHToe Hook LH
-
41518327447 Toe Hook RHToe Hook RH
-
42605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
43207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
46514054846 Spring BracketSpring Bracket
-
47390909200 Avex RivetAvex Rivet
-
48518326213 S Module. Includes 48 To 49S Module. Includes 48 To 49
-
49390909200 Avex RivetAvex Rivet
-
50207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
51207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
52233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
53390909100 Avex RivetAvex Rivet
-
54390909200 Avex RivetAvex Rivet
-
55518326714 Pulley SupportPulley Support
-
56207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
57207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
58518327004 Front Member Assy. Includes 58 To 60Front Member Assy. Includes 58 To 60
-
59502007077 Bumper Fastener LHBumper Fastener LH
-
59502007078 Bumper Fastener RHBumper Fastener RH
-
60390909200 Avex RivetAvex Rivet
-
61207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
62233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
63224061201 Flat WasherFlat Washer
-
64207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
65233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
66207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
67233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
68390909200 Avex RivetAvex Rivet
-
69518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
70207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
72518325114 Upper Column SupportUpper Column Support
-
73207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
74233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
75518325115 Center Column SupportCenter Column Support
-
76250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
78518325560 Adhesive PatchAdhesive Patch
-
79207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
