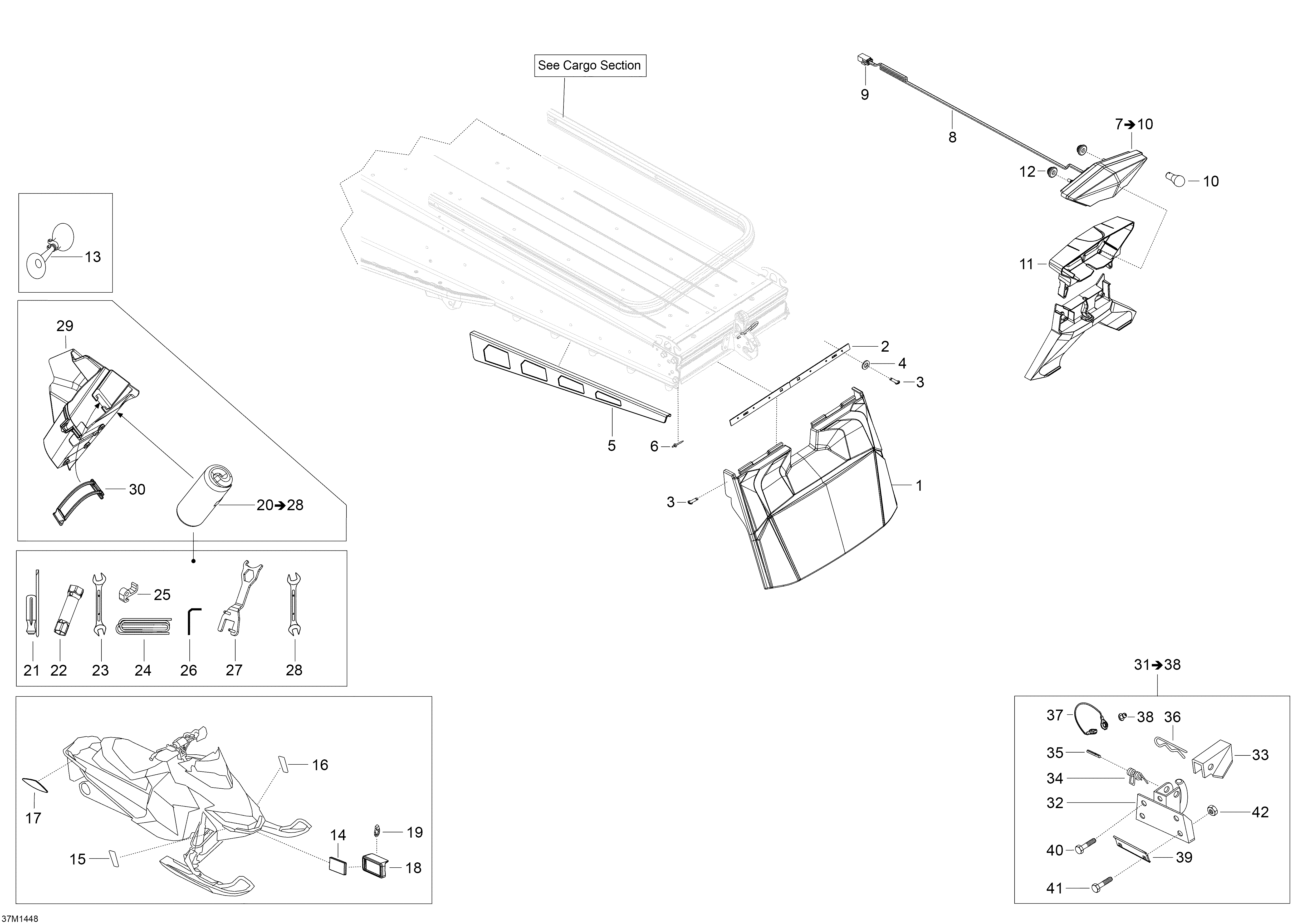

09- Utilities для BRP Ski-Doo Skandic SWT 550F XU - 2014
-
№АртикулНазвание
-
1520001430 Snow GuardSnow Guard
-
2520001022 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13549011291 HornHorn
-
14M21118 Reflector (White)Reflector (White)
-
15520000843 RH ReflectorRH Reflector
-
16520000844 LH ReflectorLH Reflector
-
17705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
18520000871 Reflector SupportReflector Support
-
19M27120 Tie Rap 2.4x200Tie Rap 2.4x200
-
20529000065 Tool Kit. Includes 20 To 28Tool Kit. Includes 20 To 28
-
21529000004 Screw DriverScrew Driver
-
22529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
23529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
24412500200 Starter Rope, MeterStarter Rope, Meter
-
25529000060 Starter GripStarter Grip
-
26520001142 Spacing ToolSpacing Tool
-
27520000988 Wrench SuspensionWrench Suspension
-
28M34017 WrenchWrench
-
29520000894 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
31520001039 Hitch Ass'y. Includes 31To 38Hitch Ass'y. Includes 31To 38
-
33520001041 Locking PlateLocking Plate
-
34M545693 SpringSpring
-
35M41012 Retainer PinRetainer Pin
-
36M41029 PinPin
-
37M5446839 Retainer CableRetainer Cable
-
38390909100 Avex RivetAvex Rivet
-
39520000727 PlatePlate
-
40207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
41207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
42233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
