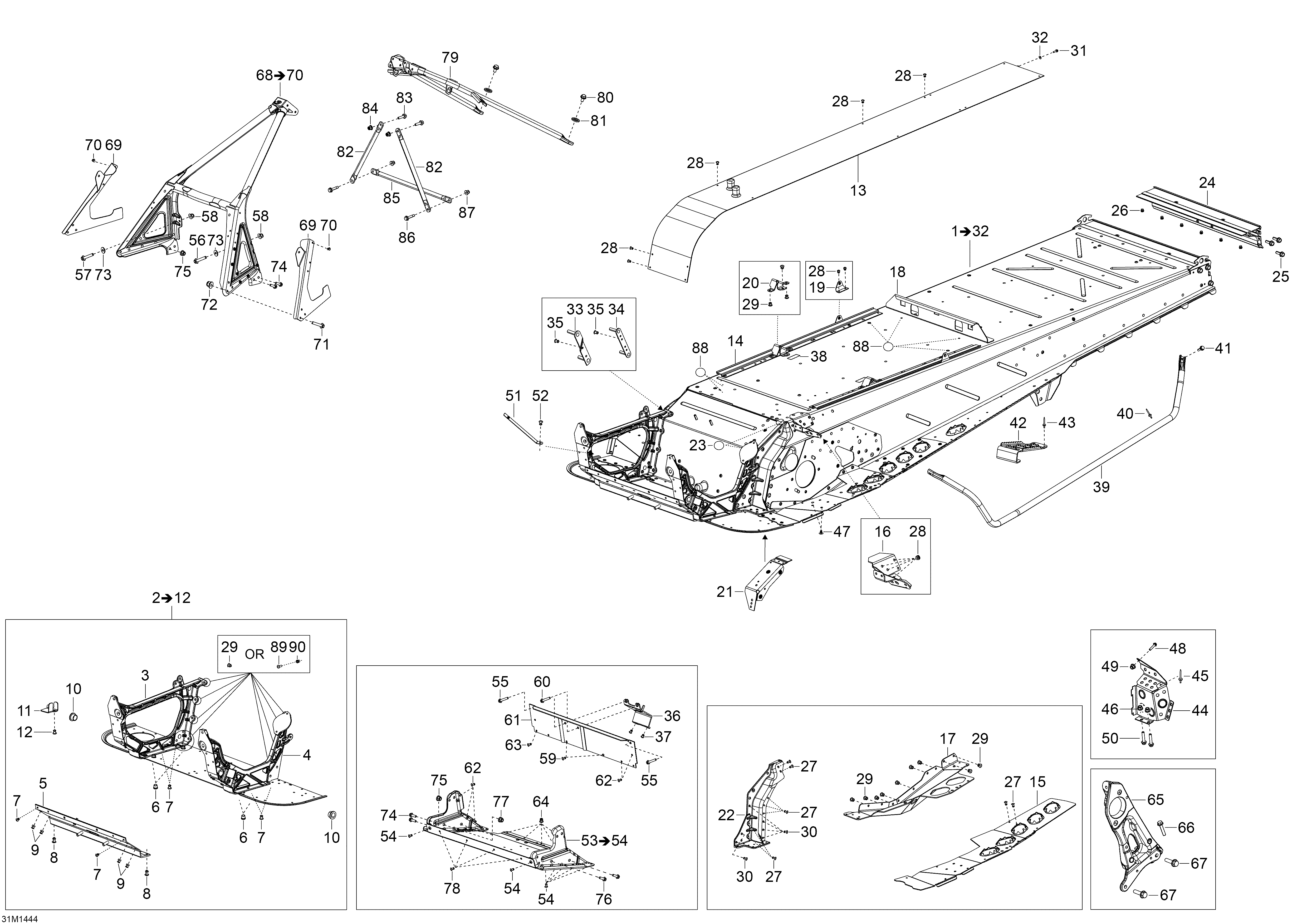

09- Frame для BRP Ski-Doo Skandic WT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1518328030 Frame. Includes 1 To 32Frame. Includes 1 To 32
-
2518326660 E Module. Includes 2 To 12E Module. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg CushionLeg Cushion
-
11518326642 Muffler support plateMuffler support plate
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000626 RadiatorRadiator
-
14518326107 Fastening railFastening rail
-
15518326895 Footrest LHFootrest LH
-
15518326896 Footrest RHFootrest RH
-
16605355235 Fastening BracketFastening Bracket
-
18518325986 Battery support plateBattery support plate
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch nut plateClinch nut plate
-
22518325524 Frame Corner LHFrame Corner LH
-
22518328024 Frame Corner RHFrame Corner RH
-
23518325560 Adhesive PatchAdhesive Patch
-
24518327194 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31205061244 Socket ScrewSocket Screw
-
33518326123 Gearbox Front PlateGearbox Front Plate
-
34518326124 Gearbox Rear PlateGearbox Rear Plate
-
35390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
36518325943 MAG Engine SupportMAG Engine Support
-
37293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
38518326357 Rubber CoverRubber Cover
-
39518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
39518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
40390909100 Avex RivetAvex Rivet
-
41207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
42520000492 FootrestFootrest
-
43390909100 Avex RivetAvex Rivet
-
44518326671 Toe Hook LHToe Hook LH
-
44518326672 Toe Hook RHToe Hook RH
-
45390909200 Avex RivetAvex Rivet
-
46605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
47414644300 DartDart
-
48207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
51514054616 Spring BracketSpring Bracket
-
52390909200 Avex RivetAvex Rivet
-
53518326213 S Module. Includes 53 To 54S Module. Includes 53 To 54
-
54390909200 Avex RivetAvex Rivet
-
55210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
56207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
57207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
58233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
59293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
60207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
61518325620 Support PlateSupport Plate
-
62390909100 Avex RivetAvex Rivet
-
63293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
64390909200 Avex RivetAvex Rivet
-
65518327644 Pulley SupportPulley Support
-
66207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
67207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
68518326754 Front Member Ass'y. Includes 68 To 70Front Member Ass'y. Includes 68 To 70
-
69502007077 Bumper Fastener LHBumper Fastener LH
-
69502007078 Bumper Fastener RHBumper Fastener RH
-
70390909200 Avex RivetAvex Rivet
-
71207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
72233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
73224061201 Flat WasherFlat Washer
-
74207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
75233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
76207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
78390909200 Avex RivetAvex Rivet
-
79518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
80207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
82518325114 Upper Column SupportUpper Column Support
-
83207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
84233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
85518325115 Center Column SupportCenter Column Support
-
86250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
87233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
88518325560 Adhesive PatchAdhesive Patch
-
89207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
