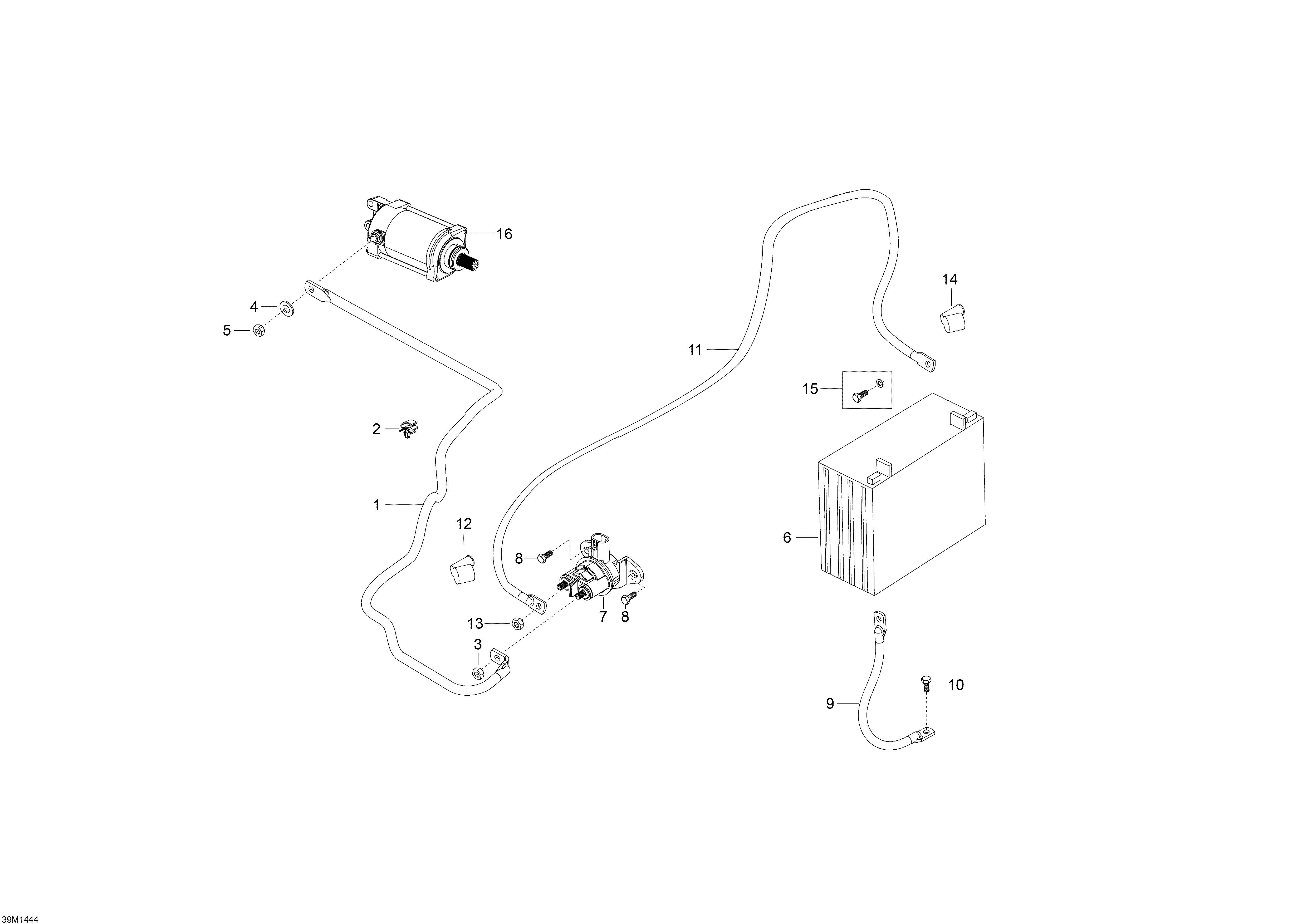

10- Battery And Starter для BRP Ski-Doo Skandic WT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1515176806 Start CableStart Cable
-
2515176795 ClipClip
-
3232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
4234061410 Flat Washer 6 mmFlat Washer 6 mm
-
5232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
6410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
7278003012 Starter RelayStarter Relay
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
9515176780 Ground WireGround Wire
-
10207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
11515176805 Battery CableBattery Cable
-
12570151000 Protection CapProtection Cap
-
13232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
14710000495 Protector CapProtector Cap
-
15295500849 Battery Fastener KitBattery Fastener Kit
-
16515177389 StarterStarter
