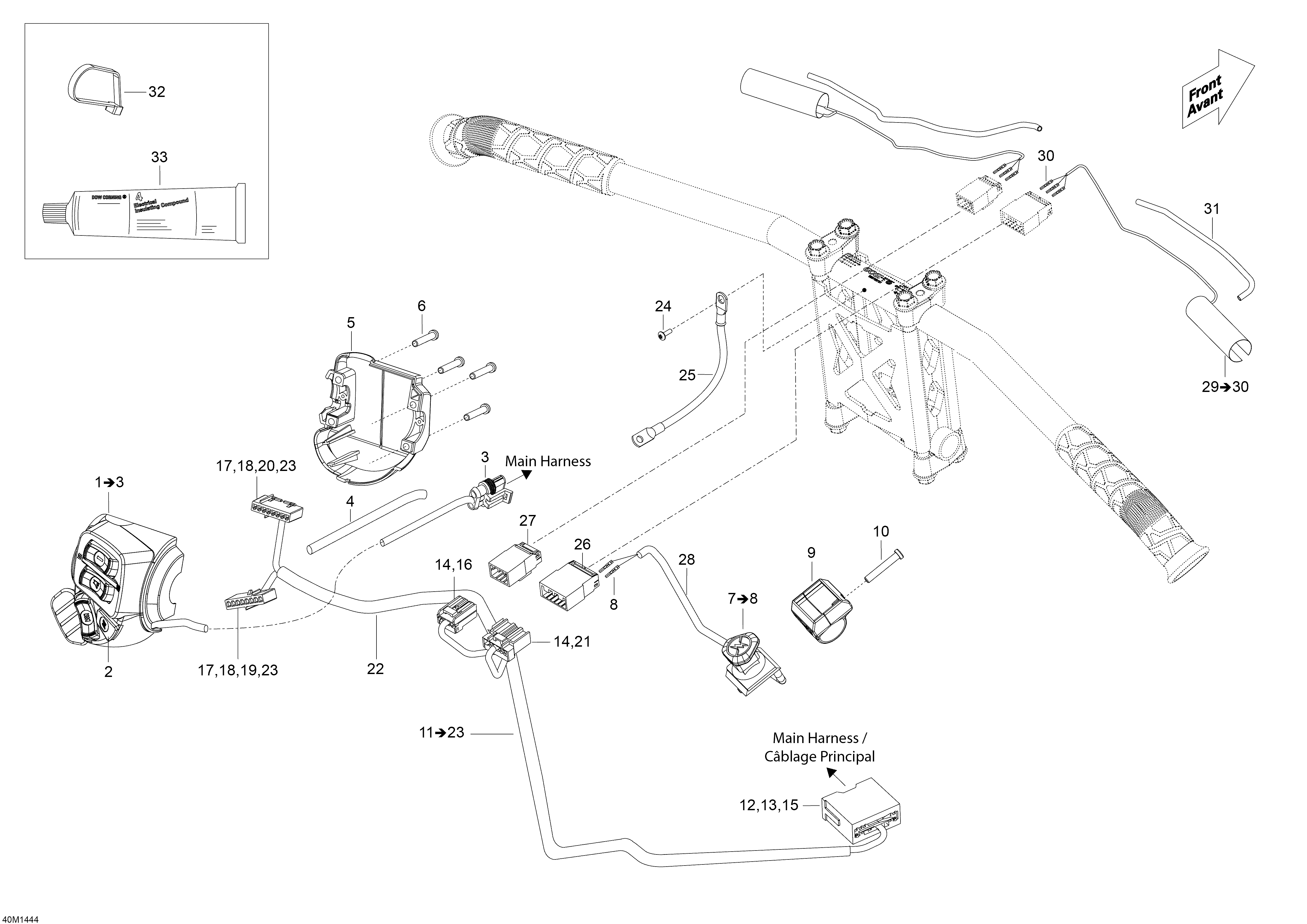

10- Steering Wiring Harness для BRP Ski-Doo Skandic WT 600HOETEC XU - 2014
-
№АртикулНазвание
-
1515177508 LH Housing Switch. Includes 1 To 3LH Housing Switch. Includes 1 To 3
-
2515176088 Start/RER ButtonStart/RER Button
-
3409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
4515175442 Tubing 6 mmTubing 6 mm
-
5515175926 Housing Switch PlateHousing Switch Plate
-
6250000263 Torx Screw #8-18Torx Screw #8-18
-
7515177362 Kill Switch. Includes 7 To 8Kill Switch. Includes 7 To 8
-
8515175232 Male TerminalMale Terminal
-
9515176825 Kill Switch SupportKill Switch Support
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11515176867 Steering Wiring Harness Ass'y. Includes 11 To 23Steering Wiring Harness Ass'y. Includes 11 To 23
-
12515175232 Male TerminalMale Terminal
-
13515175273 Male TerminalMale Terminal
-
14515175231 Female TerminalFemale Terminal
-
15515175351 Male Terminal Housing, 15 CircuitsMale Terminal Housing, 15 Circuits
-
16515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
17515175808 Female TerminalFemale Terminal
-
18515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
19515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
20515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
21515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
22515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
23515175941 Female TerminalFemale Terminal
-
24250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
25515177668 Ground CableGround Cable
-
26515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
27515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
28515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
29506152467 Heating Element. Includes 29 To 30Heating Element. Includes 29 To 30
-
30515175232 Male TerminalMale Terminal
-
31515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
32414115200 Tie-Rap 180 mmTie-Rap 180 mm
