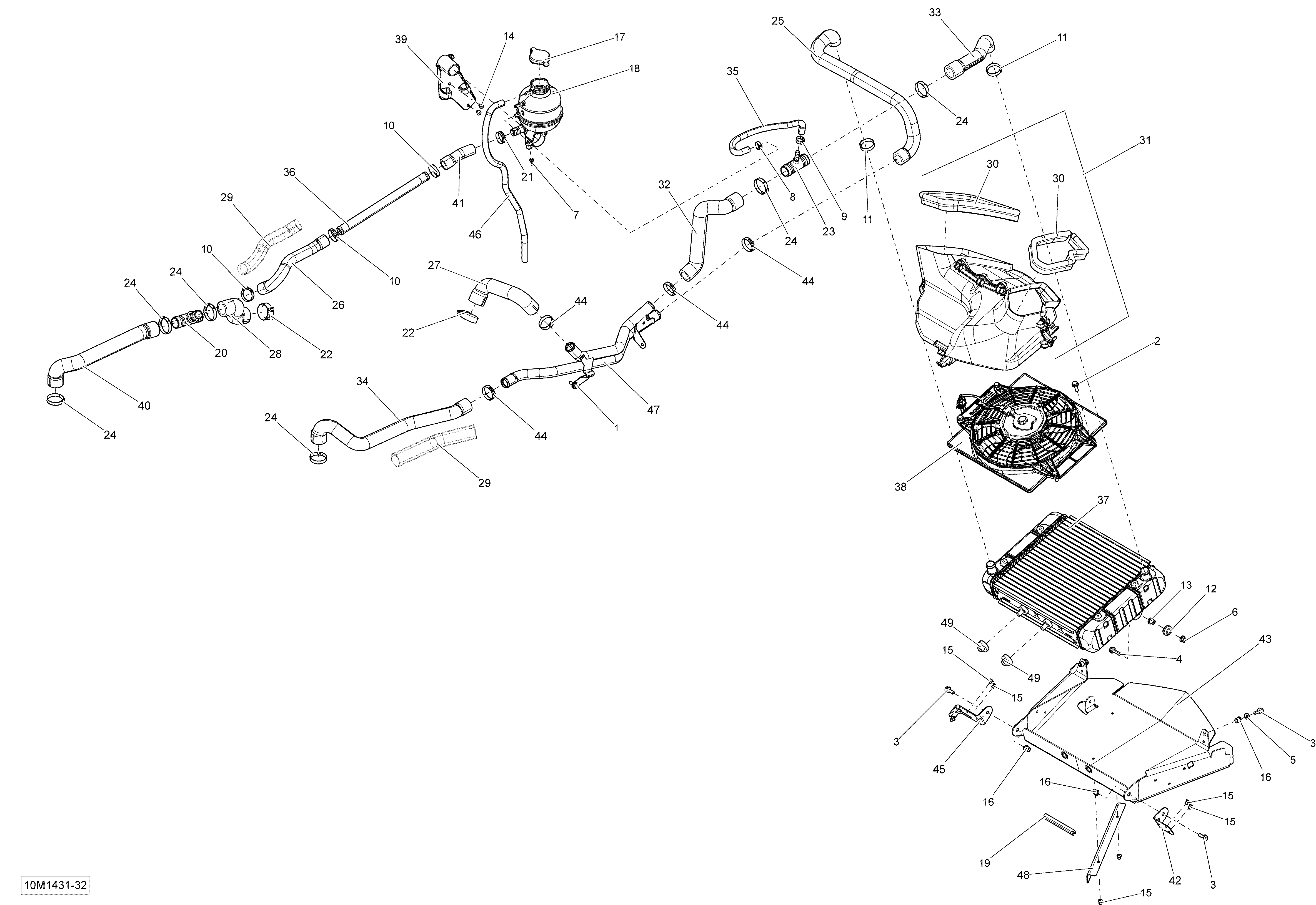

01- Cooling System для BRP Ski-Doo TUNDRA LT 600ACE XU - 2014
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
2207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
3207661684 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5224061121 Flat WasherFlat Washer
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
8293650025 Oetiker Gear ClampOetiker Gear Clamp
-
9293650047 Crimp ClampCrimp Clamp
-
10293650099 Crimp ClampCrimp Clamp
-
11293650165 Oetiker ClampOetiker Clamp
-
12293720053 GrommetGrommet
-
13293900100 BushingBushing
-
14390909100 Avex RivetAvex Rivet
-
15390909200 Avex RivetAvex Rivet
-
16293450275 InsertInsert
-
17509000180 Pressure CapPressure Cap
-
18509000368 Coolant TankCoolant Tank
-
19271000110 Protection TrimProtection Trim
-
20509000372 T-FittingT-Fitting
-
21509000442 Oetiker Gear ClampOetiker Gear Clamp
-
22509000443 Aba Gear ClampAba Gear Clamp
-
23509000510 T-FittingT-Fitting
-
24509000529 Oetiker Gear ClampOetiker Gear Clamp
-
25509000560 Radiator HoseRadiator Hose
-
26509000563 HoseHose
-
27509000564 Engine Outlet HoseEngine Outlet Hose
-
28509000565 Engine Inlet HoseEngine Inlet Hose
-
29509000513 Protector Tube 32 mmProtector Tube 32 mm
-
30293250047 Neoprene SealNeoprene Seal
-
31509000612 Air Outlet Deflector Ass'yAir Outlet Deflector Ass'y
-
32509000617 Radiator HoseRadiator Hose
-
33509000618 Radiator HoseRadiator Hose
-
34509000634 HoseHose
-
35509000635 Breather HoseBreather Hose
-
36509000644 PipePipe
-
37509000691 RadiatorRadiator
-
38509000692 Fan Ass'yFan Ass'y
-
39509000694 Front BracketFront Bracket
-
40509000697 Radiator Return HoseRadiator Return Hose
-
41509000698 HoseHose
-
42509000715 SupportSupport
-
43509000721 Radiator SupportRadiator Support
-
44509000735 ClampClamp
-
45509000772 SupportSupport
-
46509000775 HoseHose
-
47509000800 Water PipeWater Pipe
-
48509000892 DeflectorDeflector
-
49709200285 GrommetGrommet
-
XXX250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
