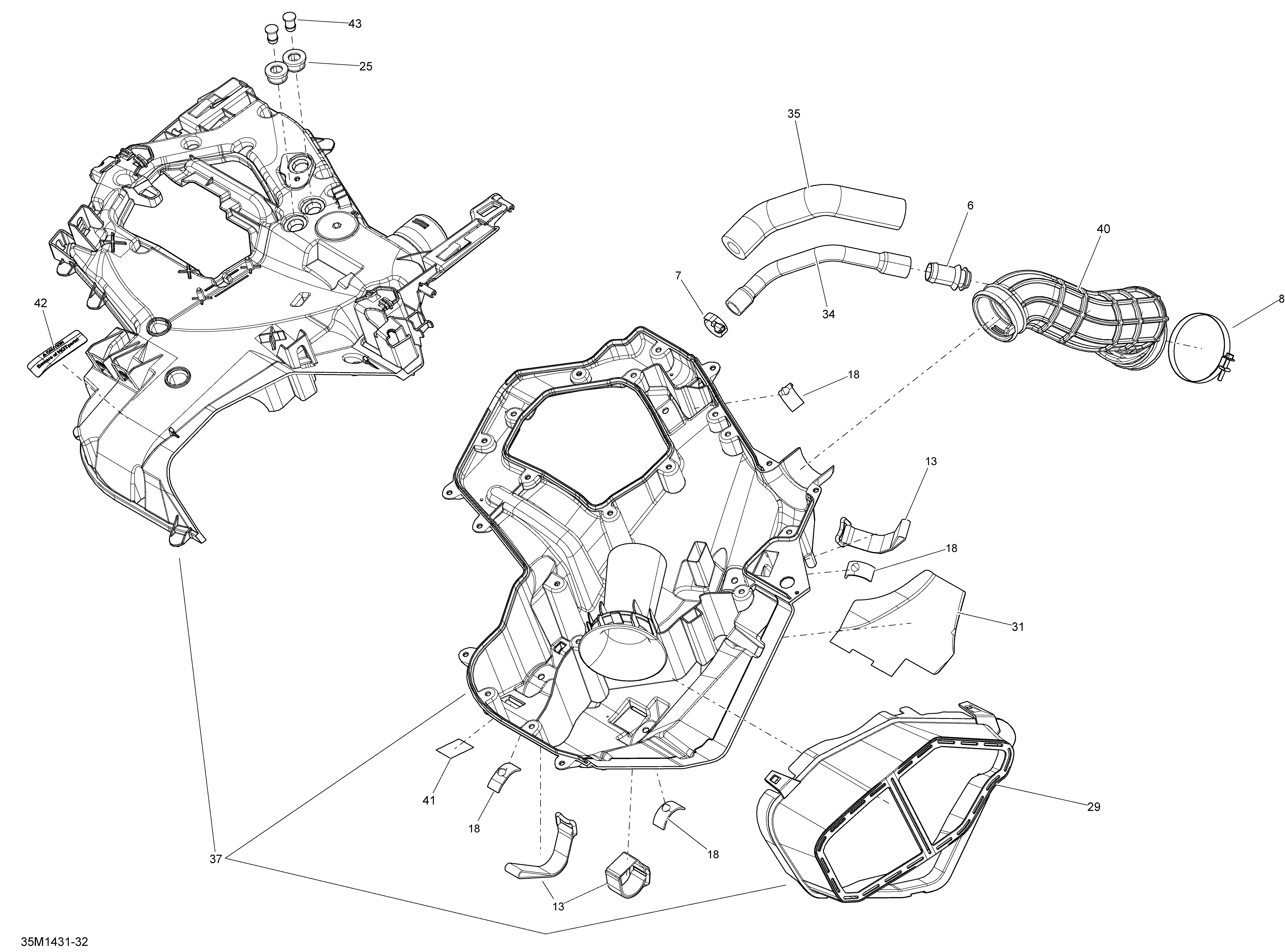

02- Air Intake System для BRP Ski-Doo TUNDRA LT 600ACE XU - 2014
-
№АртикулНазвание
-
6273000234 BreatherBreather
-
7293650172 Tridon Gear ClampTridon Gear Clamp
-
8293650212 GEMI ClampGEMI Clamp
-
13508000532 Velcro StripVelcro Strip
-
18508000537 StopperStopper
-
25508000574 GrommetGrommet
-
29508000595 Air Intake FilterAir Intake Filter
-
31508000622 Reflective SheetReflective Sheet
-
34508000647 Formed Vent HoseFormed Vent Hose
-
35508000648 Tube IsolatorTube Isolator
-
37508000715 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
40508000718 Air Intake HoseAir Intake Hose
-
41509000688 Reflective SheetReflective Sheet
-
42516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
43572092900 CapCap
