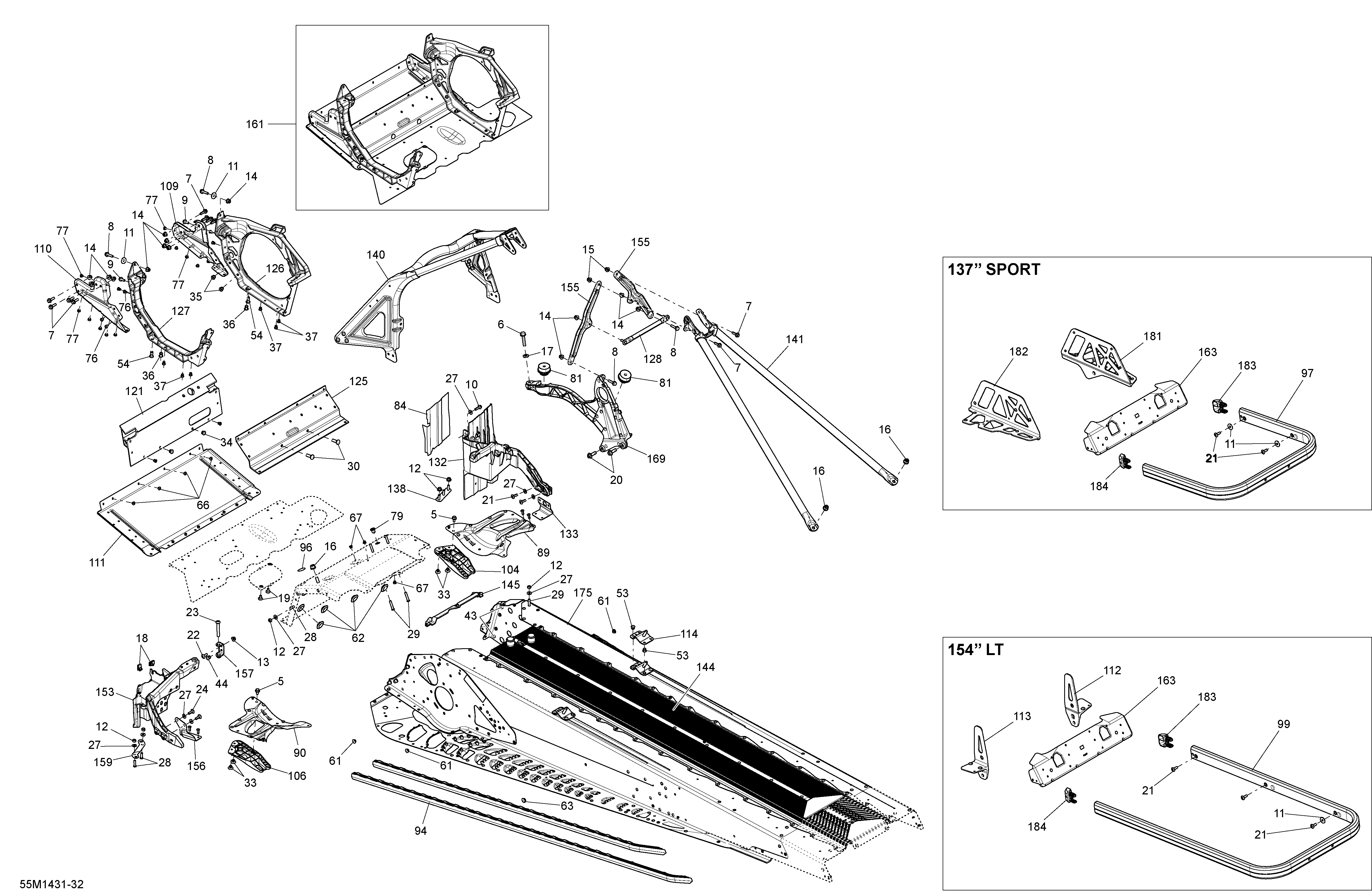

09- Frame And Components для BRP Ski-Doo TUNDRA LT 600ACE XU - 2014
-
№АртикулНазвание
-
5207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
6207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
10210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
11224061201 Flat WasherFlat Washer
-
12232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
13233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
20250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
21250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
22250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
23250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
24250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
27250200039 Flat WasherFlat Washer
-
27250200039 Flat WasherFlat Washer
-
28250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
29250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
30250300038 Clinch StudClinch Stud
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
36293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
37293150144 Stavex RivetStavex Rivet
-
43293150146 Henrob RivetHenrob Rivet
-
44293150147 Hemlock RivetHemlock Rivet
-
53293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
54293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
61293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
62293730052 Black PlugBlack Plug
-
63293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
66390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
67390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
76390909100 Avex RivetAvex Rivet
-
77390909200 Avex RivetAvex Rivet
-
79293450275 InsertInsert
-
81512060295 Rubber MountRubber Mount
-
84514054755 Heat ShieldHeat Shield
-
89518324874 RH ReinforcementRH Reinforcement
-
90518324875 LH ReinforcementLH Reinforcement
-
91518325159 RH RollerRH Roller
-
92518325160 LH RollerLH Roller
-
96518325560 Adhesive PatchAdhesive Patch
-
99518325579 Clear Rear BumperClear Rear Bumper
-
104518325782 RH DeflectorRH Deflector
-
106518325783 LH DeflectorLH Deflector
-
109518325949 RH Front MemberRH Front Member
-
110518325950 LH Front MemberLH Front Member
-
111518325951 Front Bottom PlateFront Bottom Plate
-
112518325955 RH Slide BracketRH Slide Bracket
-
113518325956 LH Slide BracketLH Slide Bracket
-
114518325973 RH Rear BaseRH Rear Base
-
116518325974 LH Rear BaseLH Rear Base
-
121518326140 Engine SupportEngine Support
-
125518326198 Front MemberFront Member
-
126518326328 RH Side MemberRH Side Member
-
127518326330 LH Side MemberLH Side Member
-
128518326355 Center Column SupportCenter Column Support
-
131518326472 Battery SupportBattery Support
-
133518326482 RH SupportRH Support
-
138518326550 Retaining PlateRetaining Plate
-
140518326557 Front Member, S ModuleFront Member, S Module
-
141518326559 Rear MemberRear Member
-
145518326656 SealSeal
-
148518326692 Rear Radiator Ass'y, 154''Rear Radiator Ass'y, 154''
-
153518326820 LH StirupLH Stirup
-
155518326848 Upper Column SupportUpper Column Support
-
156518326960 SupportSupport
-
157518326961 U-AttachU-Attach
-
159518326986 AttachAttach
-
161518327006 E-ModuleE-Module
-
163518327105 Rear CapRear Cap
-
169518327535 Brace Ass'yBrace Ass'y
-
175415129825 Frame TUNDRA 154'' LLFFrame TUNDRA 154'' LLF
-
183520000711 Full Moon RH CapFull Moon RH Cap
-
184520000712 Full Moon LH CapFull Moon LH Cap
