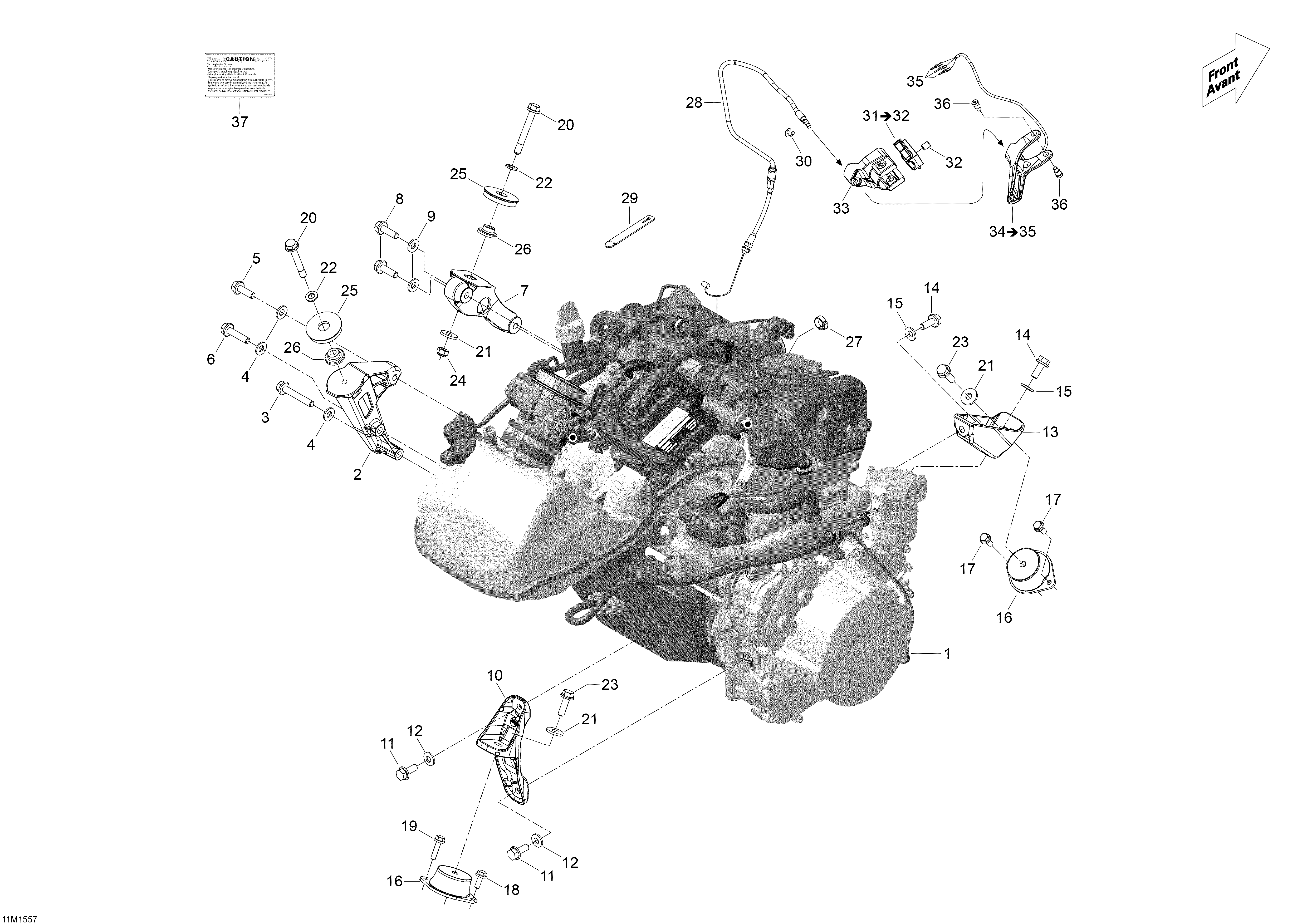

01- Engine _11M1557 для BRP Ski-Doo Expedition LE 1200 4-TEC - 2015
-
№АртикулНазвание
-
2512060591 Rear Support, PTORear Support, PTO
-
3207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7512060593 Front Support, PTOFront Support, PTO
-
8207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10512060594 Rear Support, MAGRear Support, MAG
-
11207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13512060596 Front Support, MAGFront Support, MAG
-
14207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16512060729 Rubber MountRubber Mount
-
17207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
18207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
20207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
21503183200 Washer, YellowWasher, Yellow
-
22250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
23250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
24232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
25512060244 StopperStopper
-
26512060285 SpacerSpacer
-
27293650046 Oetiker ClampOetiker Clamp
-
28512060702 Throttle CableThrottle Cable
-
29293850117 Rubber StrapRubber Strap
-
30414274500 CirclipCirclip
-
31512060859 Upper Housing. Includes 31 To 32Upper Housing. Includes 31 To 32
-
32414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
33512060860 Lower HousingLower Housing
-
34512061051 Handle Ass'y. Includes 34 To 35Handle Ass'y. Includes 34 To 35
-
35515175232 Male TerminalMale Terminal
-
36732601143 Flanged ScrewFlanged Screw
-
37516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
