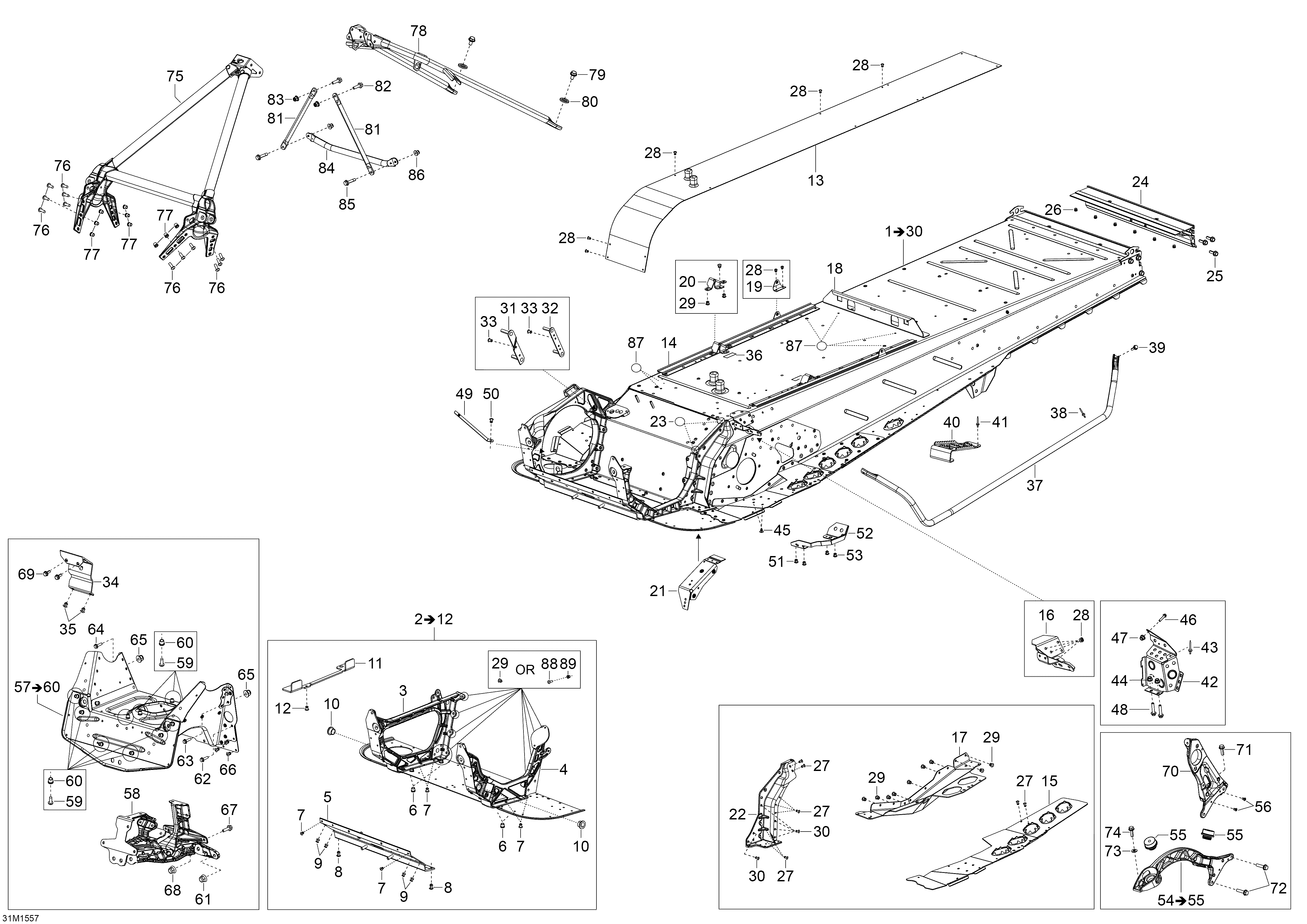

09- Frame _31M1557 для BRP Ski-Doo Expedition LE 1200 4-TEC - 2015
-
№АртикулНазвание
-
1518328439 Frame. Includes 1 To 30Frame. Includes 1 To 30
-
2518328187 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg CushionLeg Cushion
-
11518327448 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000867 Tunnel RadiatorTunnel Radiator
-
14518326107 Fastening railFastening rail
-
15518326895 Footrest LHFootrest LH
-
15518326896 Footrest RHFootrest RH
-
16605355235 Fastening BracketFastening Bracket
-
18518325986 Battery support plateBattery support plate
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch nut plateClinch nut plate
-
22518325524 Frame Corner LHFrame Corner LH
-
22518328024 Frame Corner RHFrame Corner RH
-
23518325560 Adhesive PatchAdhesive Patch
-
24518327194 Rear ProfileRear Profile
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518325371 MAG Engine SupportMAG Engine Support
-
35293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
36518326357 Rubber CoverRubber Cover
-
37518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
37518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
38390909100 Avex RivetAvex Rivet
-
39207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
40520000492 FootrestFootrest
-
41390909100 Avex RivetAvex Rivet
-
42518326464 Toe Hook LHToe Hook LH
-
42518326465 Toe Hook RHToe Hook RH
-
43390909200 Avex RivetAvex Rivet
-
44605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
45414644300 DartDart
-
46207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
47233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
48250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
49514054616 Spring BracketSpring Bracket
-
50390909100 Avex RivetAvex Rivet
-
51390909200 Avex RivetAvex Rivet
-
52518326566 Pulley Cover PlatePulley Cover Plate
-
53293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
54518327392 Brace Ass'y. Includes 54 To 55Brace Ass'y. Includes 54 To 55
-
55512060295 Rubber MountRubber Mount
-
5636087 RivetRivet
-
57518328395 Module S. Includes 57 To 60Module S. Includes 57 To 60
-
58518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
59207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
60233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
61233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
62210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
63207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
64207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
65233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
66293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
67207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
68233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
70518328434 Pulley SupportPulley Support
-
71207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
72207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
73234281474 Conical Spring Washer M8Conical Spring Washer M8
-
74207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
75518326970 Front MemberFront Member
-
76207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
78518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
79207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
81518325114 Upper Column SupportUpper Column Support
-
82207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
83233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
84518326657 Center Column SupportCenter Column Support
-
85207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
86233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
87518325560 Adhesive PatchAdhesive Patch
-
88207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
89233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
