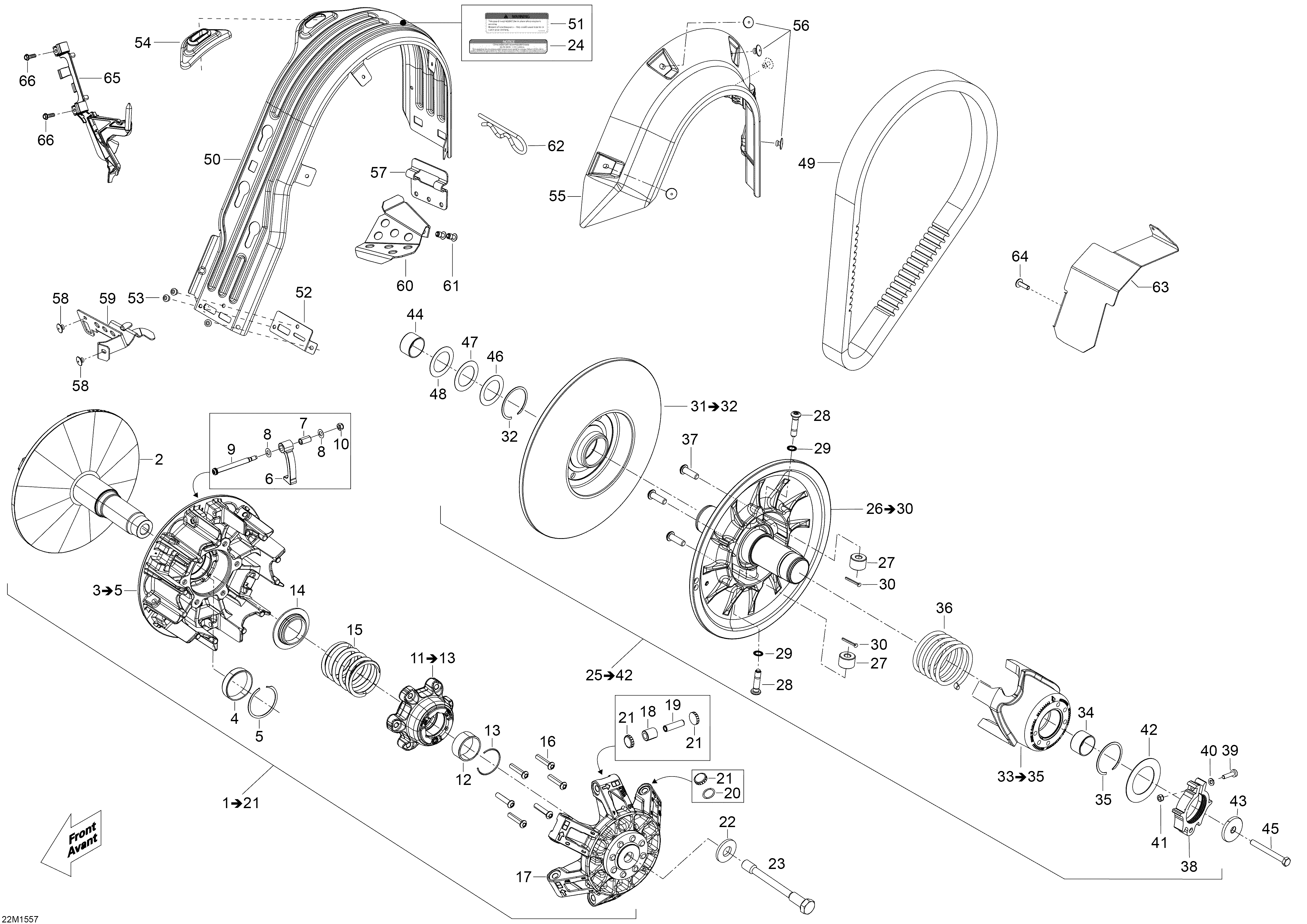

05- Pulley System _22M1557 для BRP Ski-Doo Expedition LE 1200 4-TEC - 2015
-
№АртикулНазвание
-
2417223867 Fixe Flange Ass'yFixe Flange Ass'y
-
3417223763 Slider Flange Ass'y. Includes 3 To 6Slider Flange Ass'y. Includes 3 To 6
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417223679 Rampe 735Rampe 735
-
8417223660 Stopper WasherStopper Washer
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223650 Spring Cover Ass'y. Includes 11 To 13Spring Cover Ass'y. Includes 11 To 13
-
13293370065 CirclipCirclip
-
14417223752 Seat SpringSeat Spring
-
15417223751 Clutch Spring, Yellow/RedClutch Spring, Yellow/Red
-
16250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300169 O RingO Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250200144 Conical Spring Washer M14Conical Spring Washer M14
-
23417300432 Pulley Drive BoltPulley Drive Bolt
-
24516005503 Decal, EnglishDecal, English
-
26417127433 Fixed Flange Ass'y. includes 26 To 30Fixed Flange Ass'y. includes 26 To 30
-
27417127189 RollerRoller
-
28417127294 Pivot StudPivot Stud
-
29250200009 Lock Washer 8 mmLock Washer 8 mm
-
30250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
31417127366 Slider Flange Ass'y. Includes 31 To 32Slider Flange Ass'y. Includes 31 To 32
-
32293370049 CirclipCirclip
-
33417127412 Cam Ass'y. Includes 33 To 35Cam Ass'y. Includes 33 To 35
-
34417127318 BushingBushing
-
35293370049 CirclipCirclip
-
36417127467 Release SpringRelease Spring
-
37250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
38415129604 Calibration Ass'yCalibration Ass'y
-
39205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
40234051410 Flat Washer M5Flat Washer M5
-
41232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
42417127155 WasherWasher
-
43517302322 Strength WasherStrength Washer
-
44417300453 SleeveSleeve
-
45207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
46417300252 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
47417300265 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
48504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
49417300391 BeltBelt
-
50417300382 Belt GuardBelt Guard
-
51516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
52417300380 ReinforcementReinforcement
-
53390909200 Avex RivetAvex Rivet
-
54417300381 GuideGuide
-
55417300356 Side ProtectorSide Protector
-
56293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
57417300363 Belt Guard BracketBelt Guard Bracket
-
58293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
59417300373 Belt Guard BracketBelt Guard Bracket
-
60518325626 Brake Hose CoverBrake Hose Cover
-
61293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
62114045200 Hair PinHair Pin
-
63417300468 Air DuctAir Duct
-
64250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
65417300396 Belt Guard BracketBelt Guard Bracket
-
66241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
