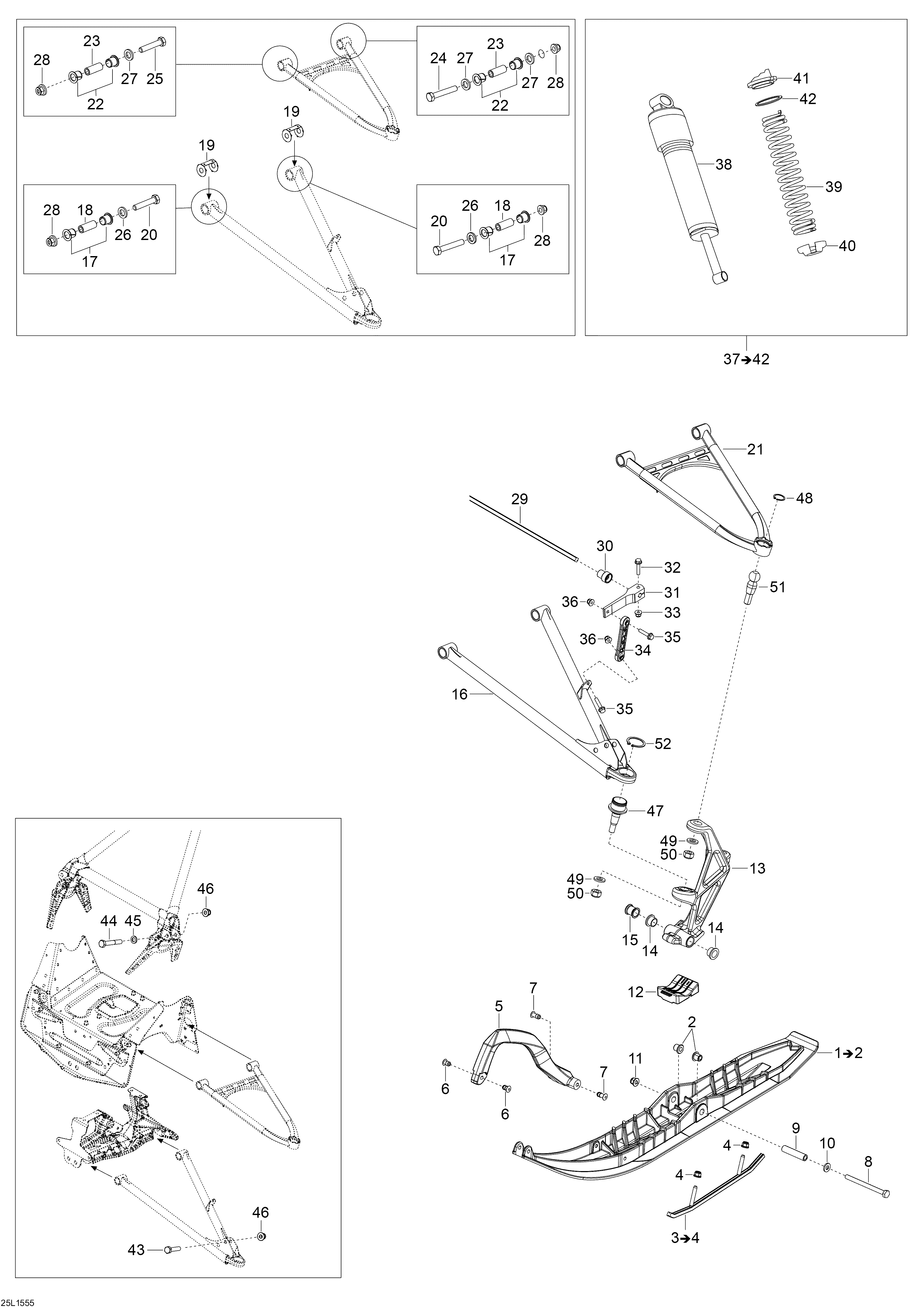

07- Front Suspension _25M1555 для BRP Ski-Doo Expedition SE 900 ACE - 2015
-
№АртикулНазвание
-
1505073227 Black DS Ski 2. Includes 1 To 2Black DS Ski 2. Includes 1 To 2
-
2505071781 CushionCushion
-
3860201044 Carbide Runner Kit. Includes 3 To 4Carbide Runner Kit. Includes 3 To 4
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505071779 Ski StopperSki Stopper
-
13505073043 LH Machined Ski LegLH Machined Ski Leg
-
13505073012 Clear RH Ski LegClear RH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
15505071999 SpacerSpacer
-
16505072497 Black RH Lower ArmBlack RH Lower Arm
-
16505072498 Black LH Lower ArmBlack LH Lower Arm
-
17505073330 CushionCushion
-
18505072393 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073468 LH Upper Arm 39''LH Upper Arm 39''
-
21505073469 RH Upper Arm 39''RH Upper Arm 39''
-
22505073329 Swivel BushingSwivel Bushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072517 Front ShockFront Shock
-
39505072879 White Spring 300mm-18N/MMWhite Spring 300mm-18N/MM
-
40230076 Spring SeatSpring Seat
-
41505073625 Adjustement CamAdjustement Cam
-
42503191872 Spring GuideSpring Guide
-
43207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
44207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
45503189564 WasherWasher
-
46233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47505072682 Lower Ball JointLower Ball Joint
-
48293370070 CirclipCirclip
-
49234021410 Flat Washer 12 mmFlat Washer 12 mm
-
50250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
51505072913 Upper Ball JointUpper Ball Joint
-
52293370035 CirclipCirclip
