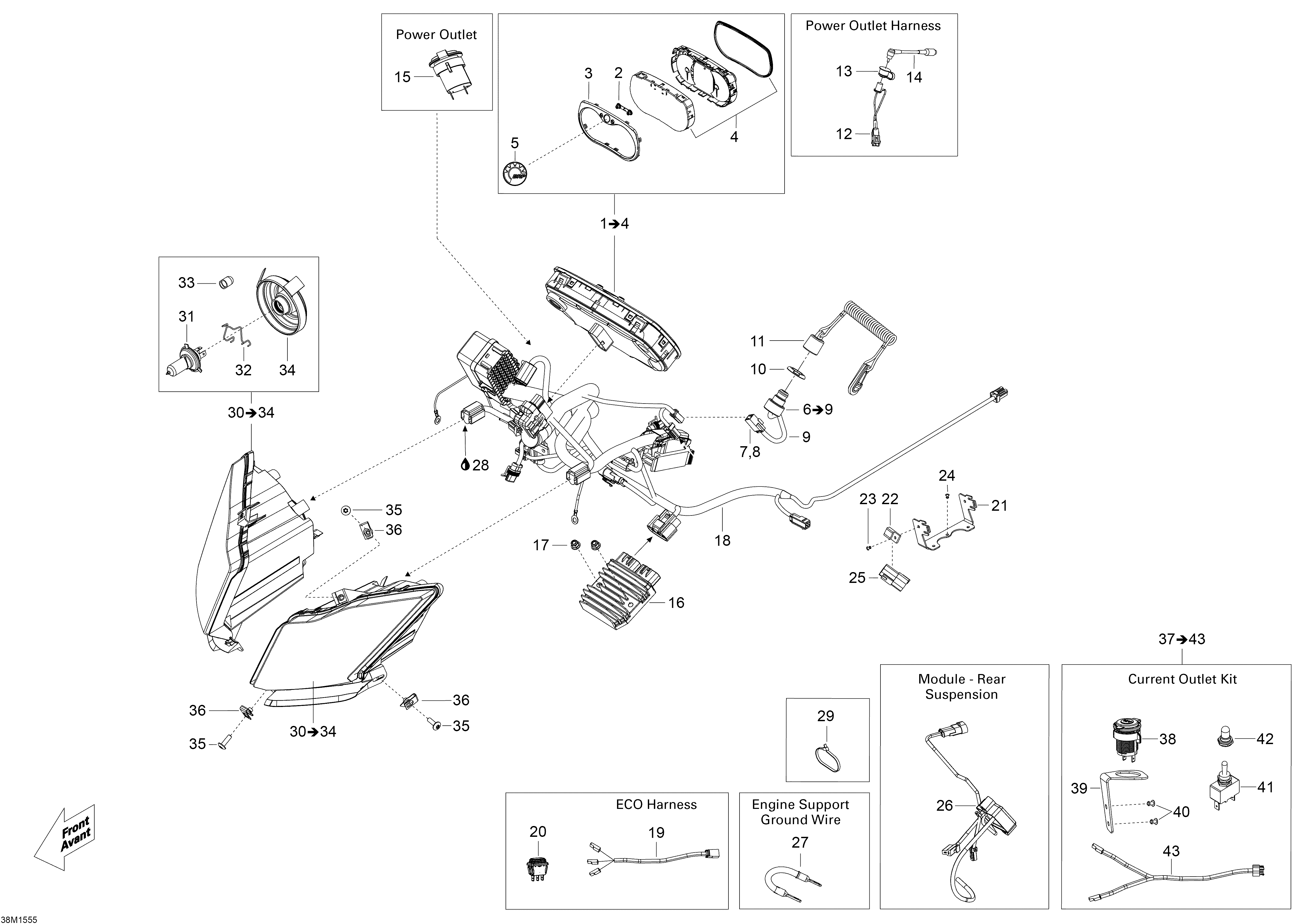

10- Electrical System _38M1555 для BRP Ski-Doo Expedition SE 900 ACE - 2015
-
№АртикулНазвание
-
1515177848 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6515177249 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515177057 DESS CapDESS Cap
-
11860200907 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12515177187 Visor HarnessVisor Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 Outlet DCOutlet DC
-
16515177325 Voltage RegulatorVoltage Regulator
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18515177482 Main HarnessMain Harness
-
19515177568 ECO HarnessECO Harness
-
20515177569 ECO Rocker SwitchECO Rocker Switch
-
21515177073 Fusebox SupportFusebox Support
-
22270000141 ClipClip
-
23293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
26515177125 Compressor ModuleCompressor Module
-
27515176883 Ground WireGround Wire
-
28293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
29293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
30517304194 RH Headlamp Ass'y. Includes 30 To 34RH Headlamp Ass'y. Includes 30 To 34
-
30517304195 LH Headlamp Ass'y. Includes 30 To 34LH Headlamp Ass'y. Includes 30 To 34
-
31515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
33515176498 CapCap
-
34515176499 CoverCover
-
35250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
36250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
37860200285 Current Outlet Kit. Includes 37 To 43Current Outlet Kit. Includes 37 To 43
-
38710001248 Outlet DCOutlet DC
-
39515176801 BracketBracket
-
4036108 RivetRivet
-
41410110700 Heat Grip SwitchHeat Grip Switch
-
42515175281 Switch CoverSwitch Cover
-
43515176802 HarnessHarness
