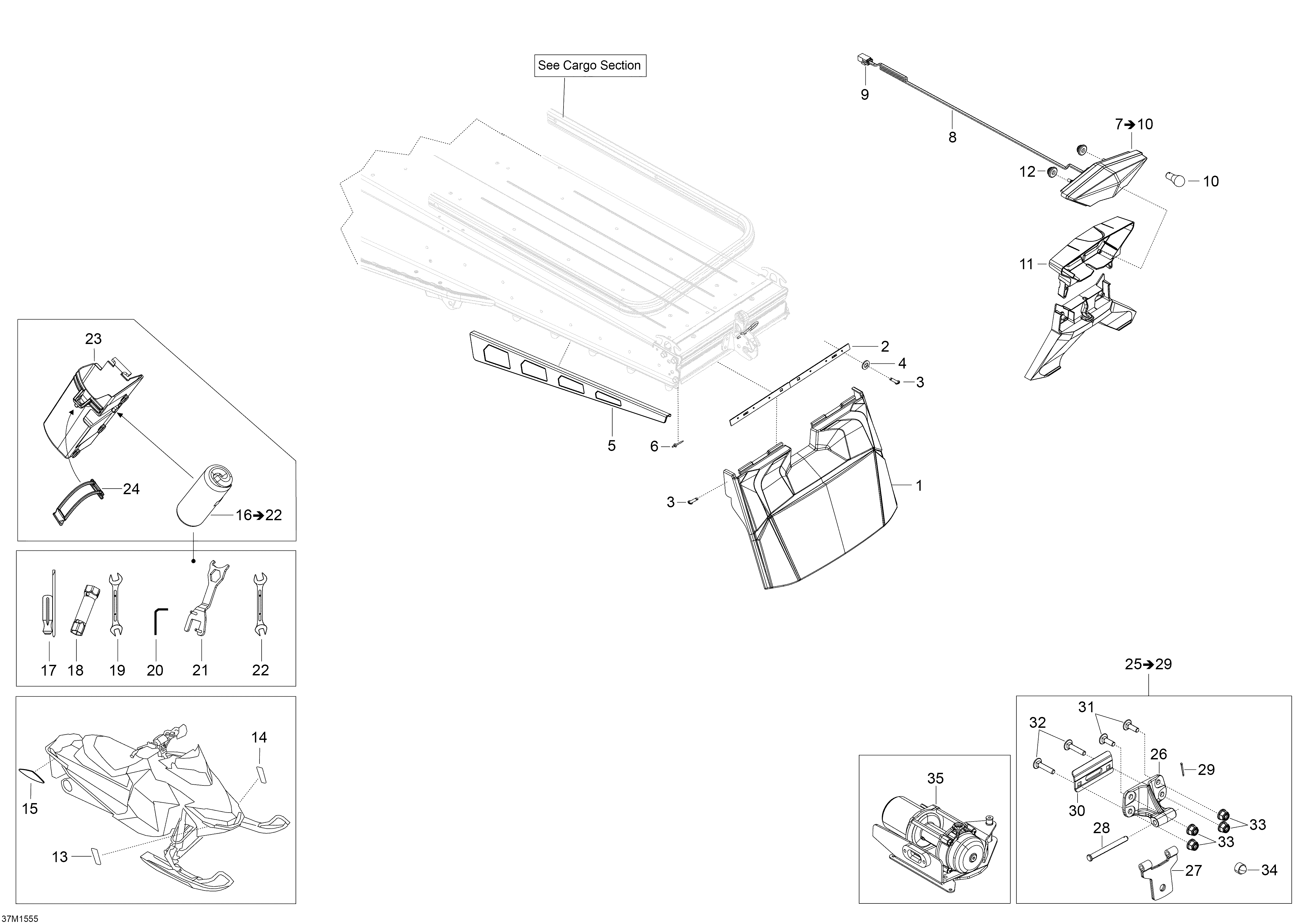

09- Utilities _37M1555 для BRP Ski-Doo Expedition SE 900 ACE - 2015
-
№АртикулНазвание
-
1520001406 Snow GuardSnow Guard
-
2520001021 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000848 Rear Light. Includes 7 To 10Rear Light. Includes 7 To 10
-
8520000849 Rear Wiring HarnessRear Wiring Harness
-
9515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
13520000843 Yellow RH ReflectorYellow RH Reflector
-
14520000844 Yellow LH ReflectorYellow LH Reflector
-
15705003412 Red Lateral ReflectorRed Lateral Reflector
-
16529000066 Tool Kit. Includes 16 To 22Tool Kit. Includes 16 To 22
-
17529000004 Screw DriverScrew Driver
-
18529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
19529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
20520001142 Spacing ToolSpacing Tool
-
21520000988 Wrench SuspensionWrench Suspension
-
2234017 WrenchWrench
-
23520000894 Tool Kit RackTool Kit Rack
-
24520000528 LatchLatch
-
25520001398 Hitch Ass'y. Includes 25 To 29Hitch Ass'y. Includes 25 To 29
-
28560309200 Pin-RetainerPin-Retainer
-
2941031 Cotter PinCotter Pin
-
30520000727 PlatePlate
-
31207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
32207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3428056 CoverCover
-
35619400069 Winch KitWinch Kit
