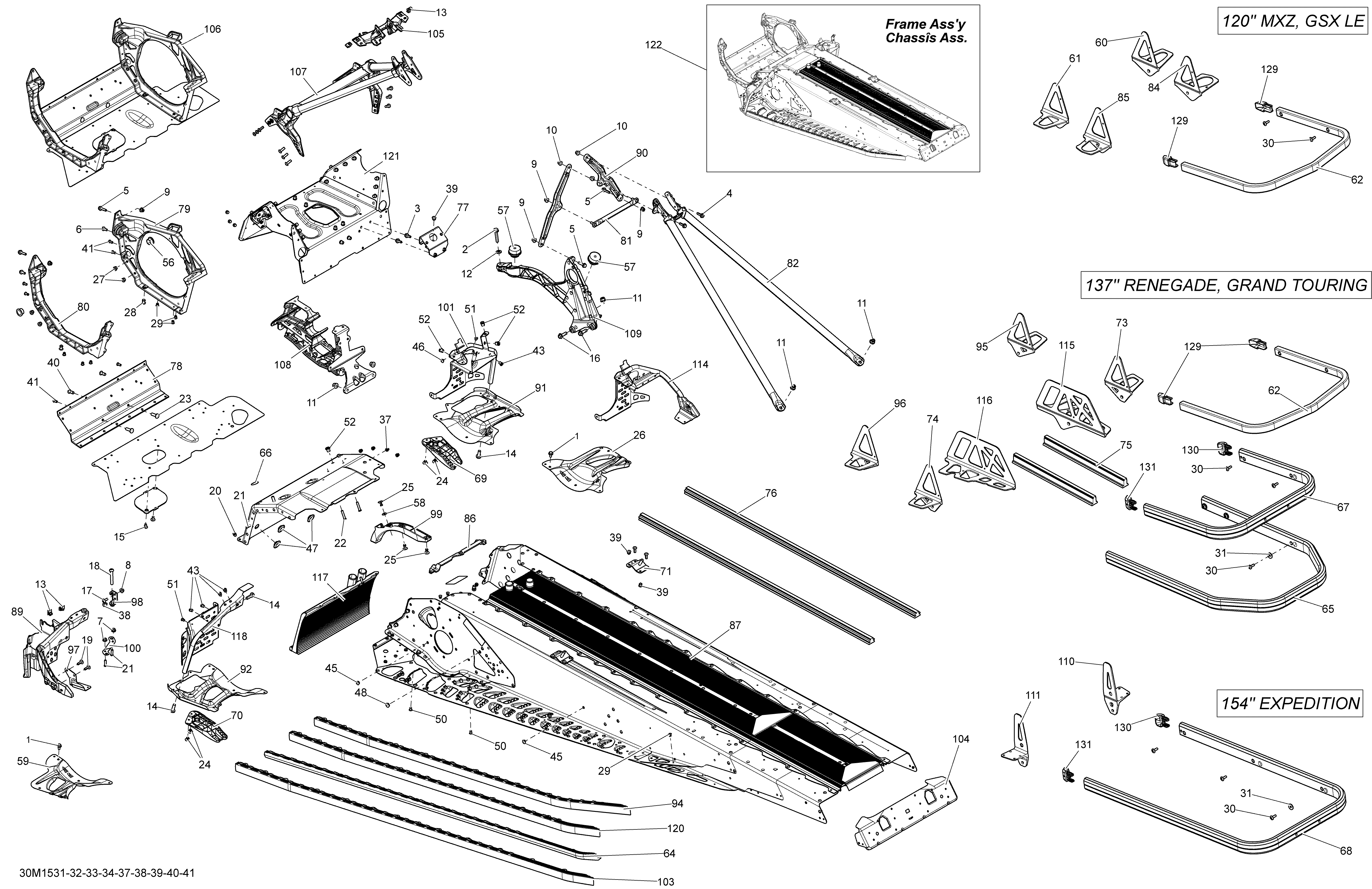

09- Frame _30M1534 для BRP Ski-Doo Expedition Sport 600ACE XS154 - 2015
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
3207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
10233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
14250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
16250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
21250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
22250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
23250300038 Clinch StudClinch Stud
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
27293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
28293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
29293150144 Stavex RivetStavex Rivet
-
30250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
31210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
37293150146 Henrob RivetHenrob Rivet
-
38293150147 Hemlock RivetHemlock Rivet
-
39293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
40293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
41293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
43293450268 InsertInsert
-
45293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
46293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
48293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
49390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
50390909100 Avex RivetAvex Rivet
-
51390909200 Avex RivetAvex Rivet
-
52293450275 InsertInsert
-
56505073317 Leg CushionLeg Cushion
-
57512060295 Rubber MountRubber Mount
-
66518325560 Adhesive PatchAdhesive Patch
-
68518325579 Clear Rear BumperClear Rear Bumper
-
69518325782 RH DeflectorRH Deflector
-
70518325783 LH DeflectorLH Deflector
-
71518325973 RH Rear BaseRH Rear Base
-
71518325974 LH Rear BaseLH Rear Base
-
77518326178 Engine SupportEngine Support
-
78518326198 Front MemberFront Member
-
79518326328 RH Side MemberRH Side Member
-
80518326330 LH Side MemberLH Side Member
-
81518326355 Center Column SupportCenter Column Support
-
82518326559 Rear MemberRear Member
-
86518326656 SealSeal
-
87518326692 Rear Radiator Ass'y, 154''Rear Radiator Ass'y, 154''
-
90518326848 Upper Column SupportUpper Column Support
-
91518326937 RH ReinforcementRH Reinforcement
-
92518326938 LH ReinforcementLH Reinforcement
-
101518327014 RH StirupRH Stirup
-
104518327105 Rear CapRear Cap
-
105518327145 Sub A SupportSub A Support
-
106518328078 'E'' Module'E'' Module
-
107518327565 Front MemberFront Member
-
108518327487 Front Suspension Support. Included With 518328320 S ModuleFront Suspension Support. Included With 518328320 S Module
-
109518327535 Brace Ass'yBrace Ass'y
-
110518327605 RH Suspension BracketRH Suspension Bracket
-
111518327606 LH Suspension BracketLH Suspension Bracket
-
117518327907 Front Radiator Ass'yFront Radiator Ass'y
-
118518327937 LH StirupLH Stirup
-
120518328098 RH RollerRH Roller
-
120518328099 LH RollerLH Roller
-
121518328320 Cross Member S Module. Include 518327487 Front Susp SupportCross Member S Module. Include 518327487 Front Susp Support
-
122415129939 Frame Ass'y 154Frame Ass'y 154
-
130520000711 Full Moon RH CapFull Moon RH Cap
-
131520000712 Full Moon LH CapFull Moon LH Cap
