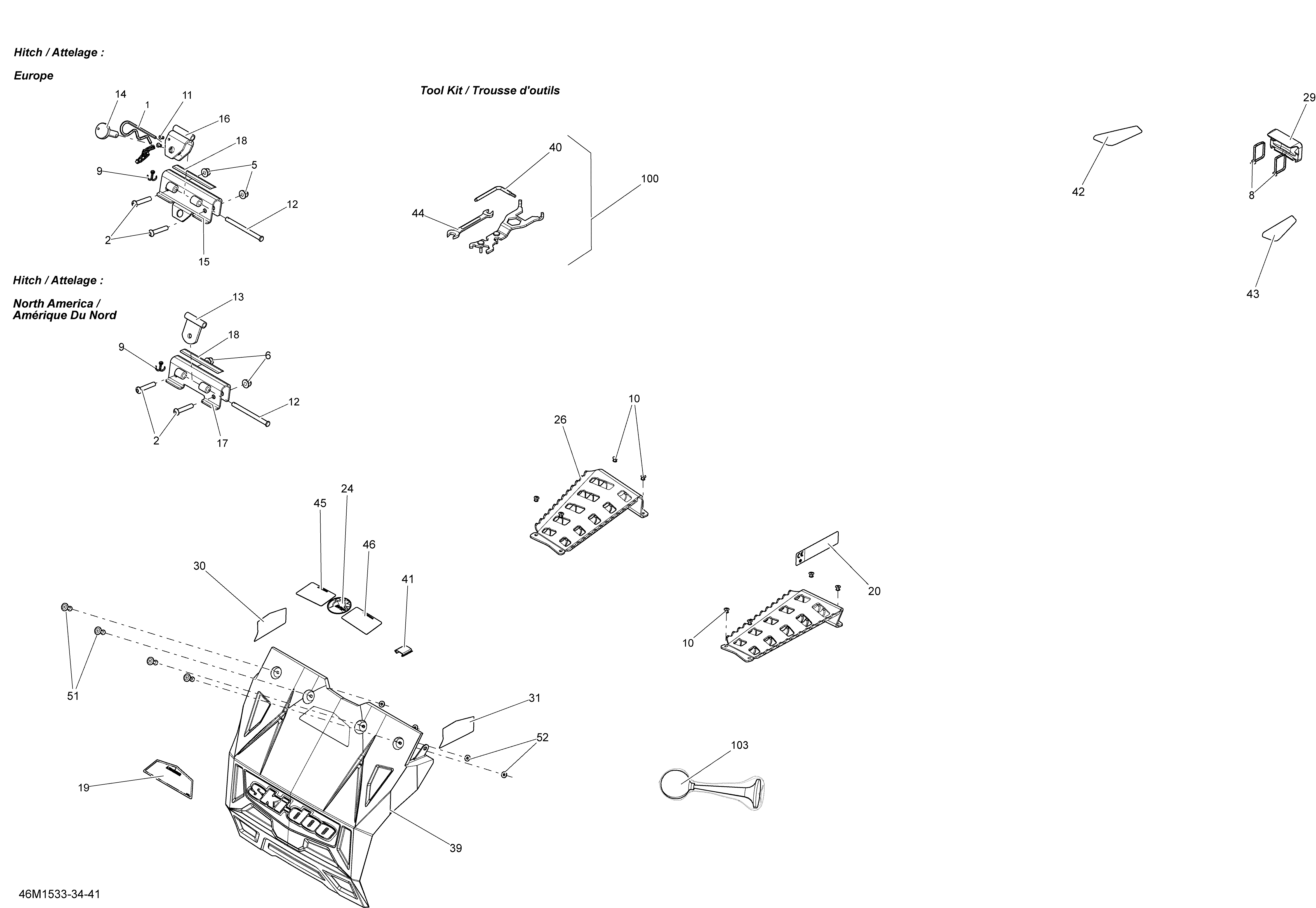

09- Utilities _46M1534 для BRP Ski-Doo Expedition Sport 600ACE XS154 - 2015
-
№АртикулНазвание
-
2205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
6233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
9371800200 Cotter PinCotter Pin
-
12511000520 Clevis PinClevis Pin
-
13511000521 Hitch Plate WeldedHitch Plate Welded
-
17511000768 SupportSupport
-
18516004568 Warning Decal, SecurityWarning Decal, Security
-
19516005175 Warning Decal, TrackWarning Decal, Track
-
24219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
30520000880 Red LH Rear ReflectorRed LH Rear Reflector
-
31520000881 Red RH Rear ReflectorRed RH Rear Reflector
-
39520001340 Snow GuardSnow Guard
-
40520001142 Spacing ToolSpacing Tool
-
41520000829 Radiator TrimRadiator Trim
-
42520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
43520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
44529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
45516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
46516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
51293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
52517124300 WasherWasher
-
100520001290 Tools KitTools Kit
