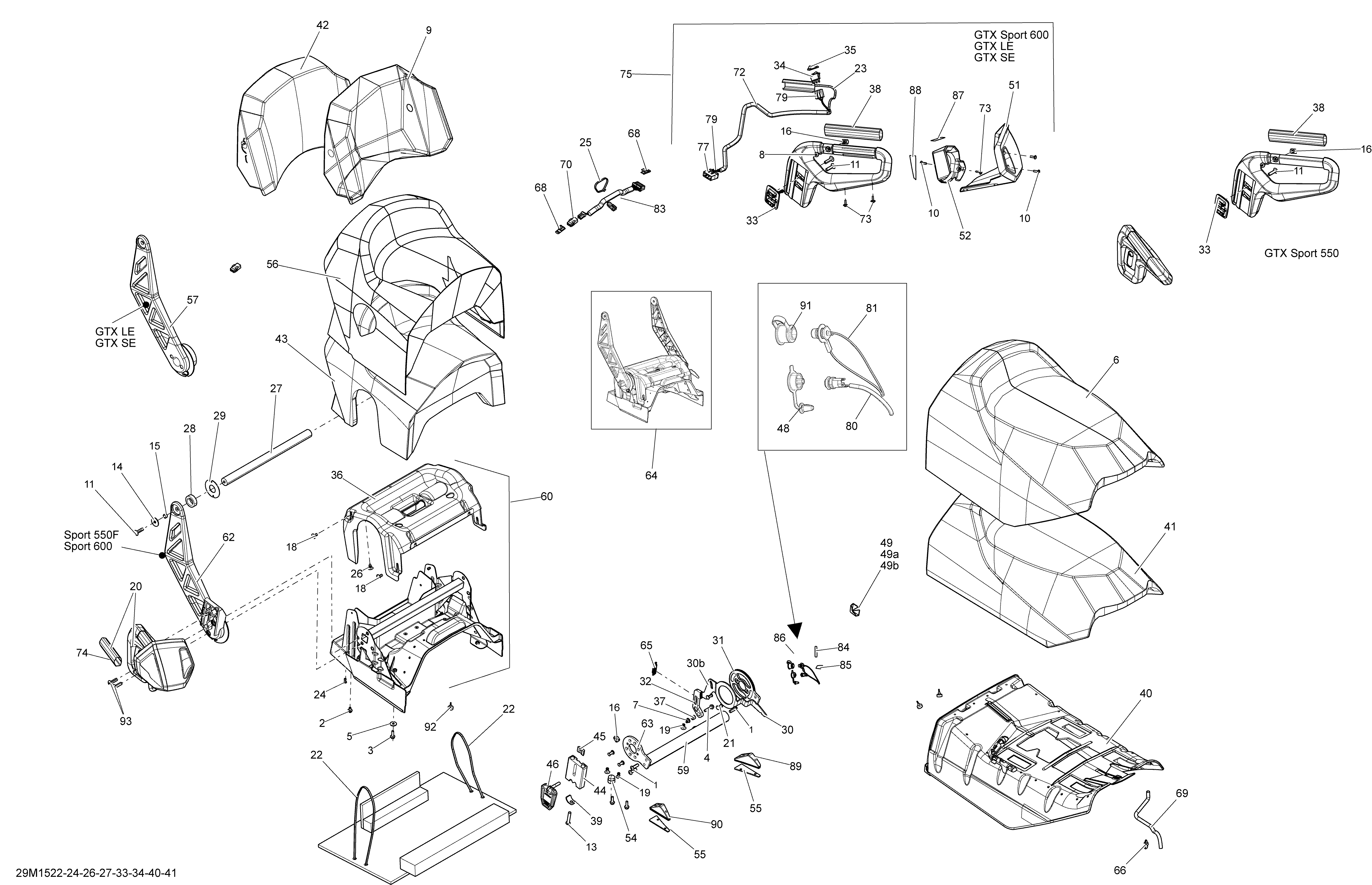

09- Seat _29M1534 для BRP Ski-Doo Expedition Sport 600ACE XS154 - 2015
-
№АртикулНазвание
-
6510005181 Seat CoverSeat Cover
-
8250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
9510005309 Backrest CoverBackrest Cover
-
11250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
14250200128 Flat Washer 8 mmFlat Washer 8 mm
-
15271000558 SpacerSpacer
-
16293100003 Nut M6Nut M6
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20510005851 RH Handle Ass'yRH Handle Ass'y
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
26414644300 DartDart
-
27510004377 Upper Backrest AxleUpper Backrest Axle
-
28510004378 Rubber ShimRubber Shim
-
29510004379 WasherWasher
-
33510004405 MouldingMoulding
-
36510004423 Foam SupportFoam Support
-
38510004449 Handle GripHandle Grip
-
40510004775 Front Seat BaseFront Seat Base
-
41510004777 Front Seat FoamFront Seat Foam
-
42510004782 Backrest FoamBackrest Foam
-
43510004791 Rear Seat FoamRear Seat Foam
-
56510005399 Rear Seat CoverRear Seat Cover
-
60510005535 Seat Base Ass'ySeat Base Ass'y
-
62510005538 LH Arm, BlackLH Arm, Black
-
62510005539 RH Arm, BlackRH Arm, Black
-
74510005814 Reinforcement HandleReinforcement Handle
-
75510005850 LH Handle Ass'yLH Handle Ass'y
-
92708000759 Rubber StopperRubber Stopper
