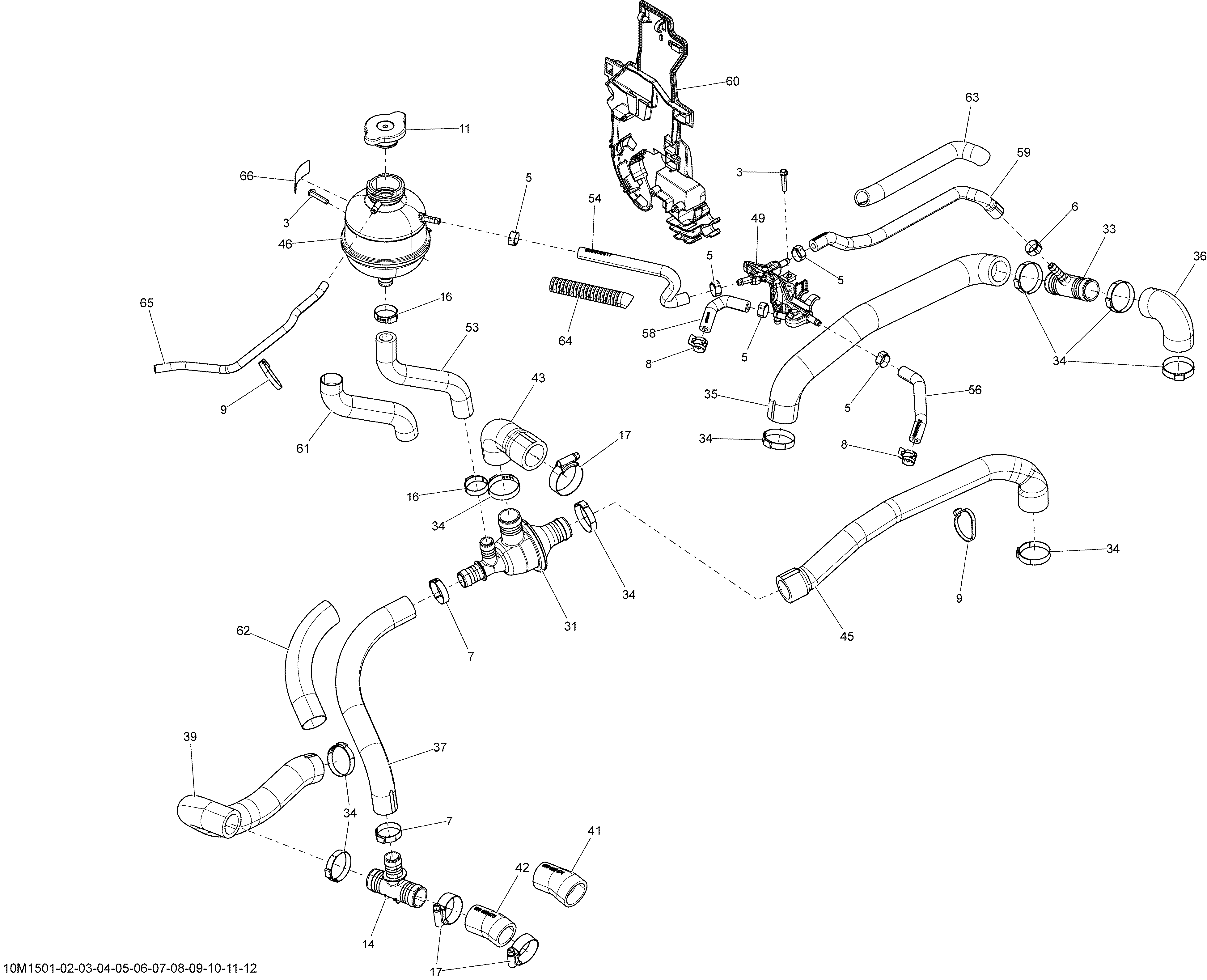

01- Cooling System 800RETEC_10M1508 для BRP Ski-Doo Renegade Backcountry 800RETEC XS137 - 2015
-
№АртикулНазвание
-
3241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
5293650046 Oetiker ClampOetiker Clamp
-
6293650047 Crimp ClampCrimp Clamp
-
7293650099 Crimp ClampCrimp Clamp
-
8293650210 Spring ClampSpring Clamp
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11509000180 Pressure CapPressure Cap
-
14509000372 T-FittingT-Fitting
-
16509000442 Oetiker Gear ClampOetiker Gear Clamp
-
17509000443 Aba Gear ClampAba Gear Clamp
-
31509000499 Thermostat HousingThermostat Housing
-
33509000510 T-FittingT-Fitting
-
34509000529 Oetiker Gear ClampOetiker Gear Clamp
-
35509000670 Radiator HoseRadiator Hose
-
36509000671 Radiator HoseRadiator Hose
-
37509000672 Bypass HoseBypass Hose
-
39509000673 Radiator HoseRadiator Hose
-
41509000674 Engine Inlet HoseEngine Inlet Hose
-
43509000678 Engine Outlet HoseEngine Outlet Hose
-
45509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
46509000802 Coolant TankCoolant Tank
-
49509000803 Bleed CollectorBleed Collector
-
53509000812 Filling HoseFilling Hose
-
54509000817 HoseHose
-
56509000818 Bleeder HoseBleeder Hose
-
58509000819 Bleeder HoseBleeder Hose
-
59509000906 Bleeder HoseBleeder Hose
-
60509000908 Tank SupportTank Support
-
61509000513 Protector Tube 32 mmProtector Tube 32 mm
-
63415080000 Tubing 16 mmTubing 16 mm
-
64409901800 Tubing 13 mmTubing 13 mm
-
65276000048 Hose 6 mmHose 6 mm
-
66516005904 Warning DecalWarning Decal
