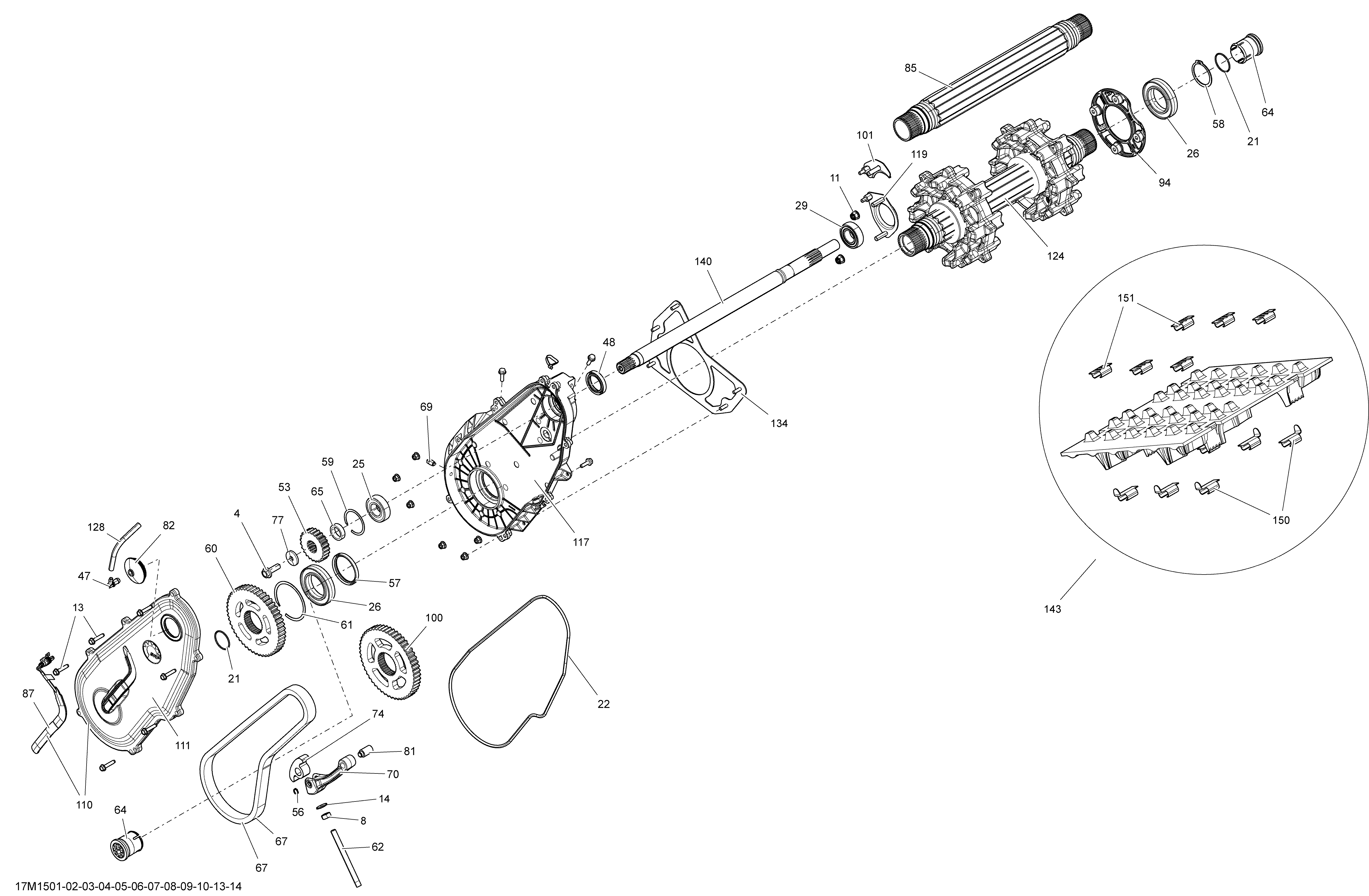

05- Drive System _17M1508 для BRP Ski-Doo Renegade Backcountry 800RETEC XS137 - 2015
-
№АртикулНазвание
-
4207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
8232006414 Hex. Nut M10Hex. Nut M10
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14250200100 Bonded WasherBonded Washer
-
21293300122 O-RingO-Ring
-
22293300130 O-RingO-Ring
-
25293350055 Ball BearingBall Bearing
-
26293350059 Ball BearingBall Bearing
-
47414580700 Male ConnectorMale Connector
-
48415049300 Oil SealOil Seal
-
53504096200 Sprocket, 21 Teeth. 600HO ETECSprocket, 21 Teeth. 600HO ETEC
-
53504091000 Sprocket, 23 Teeth. 800R ETECSprocket, 23 Teeth. 800R ETEC
-
56504152282 CirclipCirclip
-
57504152571 SealSeal
-
58504152572 CirclipCirclip
-
59504152576 CirclipCirclip
-
60504152581 Sprocket, 49 Teeth. 600HO ETECSprocket, 49 Teeth. 600HO ETEC
-
60504152593 Sprocket, 45 Teeth. 800R ETECSprocket, 45 Teeth. 800R ETEC
-
61504152582 CirclipCirclip
-
62504152602 Adjustment ScrewAdjustment Screw
-
64504152619 Magnetic CapMagnetic Cap
-
65504152628 ShimShim
-
67504152629 Drive Chain, 104 Links. 800R ETECDrive Chain, 104 Links. 800R ETEC
-
67504152630 Drive Chain, 106 Links. 600HO ETECDrive Chain, 106 Links. 600HO ETEC
-
69504152854 Magnetic PlugMagnetic Plug
-
70504152685 Chain TensionerChain Tensioner
-
74504152739 Slider ChainSlider Chain
-
77504152784 Spring Washer M10Spring Washer M10
-
81504152841 Tensionner AxleTensionner Axle
-
82504152860 CapCap
-
87504152896 SensorSensor
-
94504152949 Housing BearingHousing Bearing
-
101504152974 Bearing HousingBearing Housing
-
110504153335 Cover Ass'yCover Ass'y
-
111504153151 Casting CoverCasting Cover
-
117504153333 Chain CaseChain Case
-
123504153335 Cover Ass'yCover Ass'y
-
124504153083 Drive Axle Ass'yDrive Axle Ass'y
-
128415080200 Hose, PolyurethaneHose, Polyurethane
-
134518325816 PlatePlate
-
143504153294 Track Ass'y 16'' X 137'' X 1.7PSH''Track Ass'y 16'' X 137'' X 1.7PSH''
-
150415129528 Track GuideTrack Guide
-
151415129529 CleatCleat
