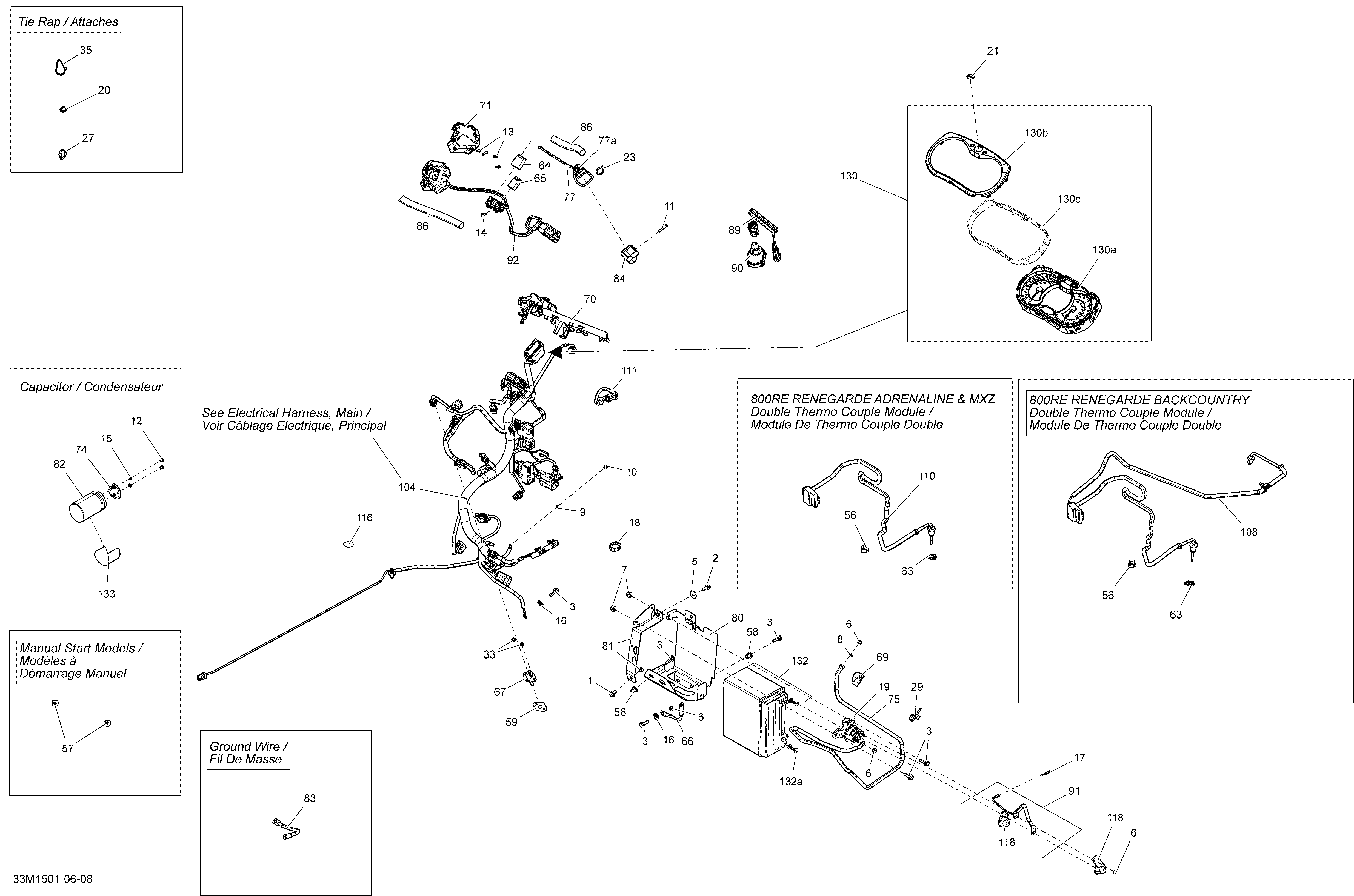

10- Electrical System 800RETEC_33M1508 для BRP Ski-Doo Renegade Backcountry 800RETEC XS137 - 2015
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5224061201 Flat WasherFlat Washer
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9234141601 Lock Washer 4 mmLock Washer 4 mm
-
10250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
11250000263 Torx Screw #8-18Torx Screw #8-18
-
12250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
13250000671 Torx ScrewTorx Screw
-
14250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
15250200026 Lock washerLock washer
-
16250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
17278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
18278002963 Safety NutSafety Nut
-
19278003012 Starter RelayStarter Relay
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
21704904616 BRP Logo, 20mmBRP Logo, 20mm
-
23293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
29293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
33389804300 Push NutPush Nut
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
56414227300 ClipClip
-
57414644300 DartDart
-
58293450275 InsertInsert
-
59508000769 SealSeal
-
63514055100 Tab LockTab Lock
-
64515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
65515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
66515176358 Ground WireGround Wire
-
67515176366 Air Temperature SensorAir Temperature Sensor
-
69515177066 ClipClip
-
70515177134 Connector PlateConnector Plate
-
71515177147 Housing PlateHousing Plate
-
74515177193 CapCap
-
75515177208 Battery/Starter WireBattery/Starter Wire
-
77515177362 Kill Switch. Includes 77 To 77aKill Switch. Includes 77 To 77a
-
77a515175232 Male TerminalMale Terminal
-
80515177264 Battery SupportBattery Support
-
81515177266 Battery StripBattery Strip
-
82515177272 CapacitorCapacitor
-
83515177289 Fil de MasseFil de Masse
-
84515177310 Kill Switch SupportKill Switch Support
-
86415129879 Protector TubeProtector Tube
-
89515177457 KeyKey
-
90515177458 SwitchSwitch
-
91515177576 Fuse Battery WireFuse Battery Wire
-
92515177676 HousingHousing
-
104515177748 Main Harness. 600HO ETECMain Harness. 600HO ETEC
-
104515177749 Main Harness. 800R ETECMain Harness. 800R ETEC
-
108515177758 ModuleModule
-
111515177813 Temperature SensorTemperature Sensor
-
116518325560 Adhesive PatchAdhesive Patch
-
118710000495 Protector CapProtector Cap
-
130515177762 Speedometer. Includes 130 To 130cSpeedometer. Includes 130 To 130c
-
130a415129355 Speedometer ButtonSpeedometer Button
-
130b415129370 Gauge RingGauge Ring
-
130c415129349 LensLens
-
132410301203 Lead Battery 18 Amperes. 600HO ETEC, Includes 132 To 132aLead Battery 18 Amperes. 600HO ETEC, Includes 132 To 132a
-
132415129898 Lead Battery 18 Amperes. 800R ETEC, Includes 132 To 132aLead Battery 18 Amperes. 800R ETEC, Includes 132 To 132a
-
132a250000282 Battery Bolt KitBattery Bolt Kit
-
133516006206 Capacitor DecalCapacitor Decal
