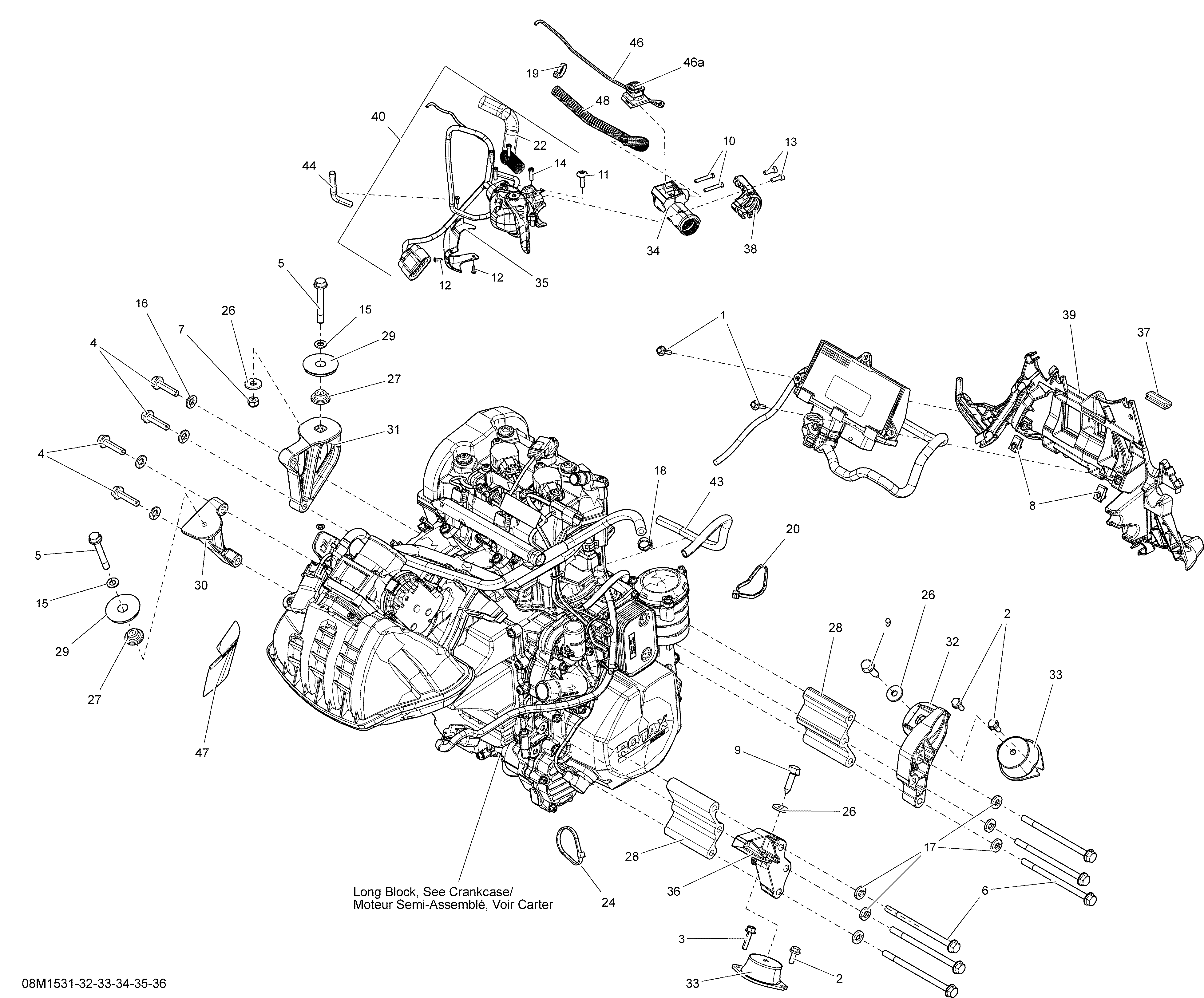

01- Engine _08M1532 для BRP Ski-Doo Renegade Sport 600ACE XS137 - 2015
-
№АртикулНазвание
-
1207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
2207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
6230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
7232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
8250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
9250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
13250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
14250000671 Torx ScrewTorx Screw
-
15250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
16250200146 Conical Spring Washer M8Conical Spring Washer M8
-
17250200157 Conical Spring Washer M8Conical Spring Washer M8
-
18293650025 Oetiker Gear ClampOetiker Gear Clamp
-
19293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
20293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22515177716 Protector TubeProtector Tube
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26503183200 Washer, YellowWasher, Yellow
-
27512060285 SpacerSpacer
-
28512060505 ShimShim
-
29512060647 StopperStopper
-
30512060660 Rear Support, PTORear Support, PTO
-
31512060661 Front Support, PTOFront Support, PTO
-
32512060663 Front Support, MAGFront Support, MAG
-
33512060729 Rubber MountRubber Mount
-
34512060844 SupportSupport
-
35512060862 CapCap
-
36512060894 Rear Support, MAGRear Support, MAG
-
37271000110 Protection TrimProtection Trim
-
38512060987 Front HousingFront Housing
-
39512060994 Module SupportModule Support
-
40512061017 Housing Ass'y. Include 40aHousing Ass'y. Include 40a
-
40a415130047 Handle Assembly kitHandle Assembly kit
-
43512061067 Protector TubeProtector Tube
-
44219702532 Protector Tube 25 mm - 210 mmProtector Tube 25 mm - 210 mm
-
46515177362 Kill Switch. Includes 46 To 46aKill Switch. Includes 46 To 46a
-
46a515175232 Male TerminalMale Terminal
-
47516005521 Caution Decal, Oil LevelCaution Decal, Oil Level
-
48515177716 Protector TubeProtector Tube
