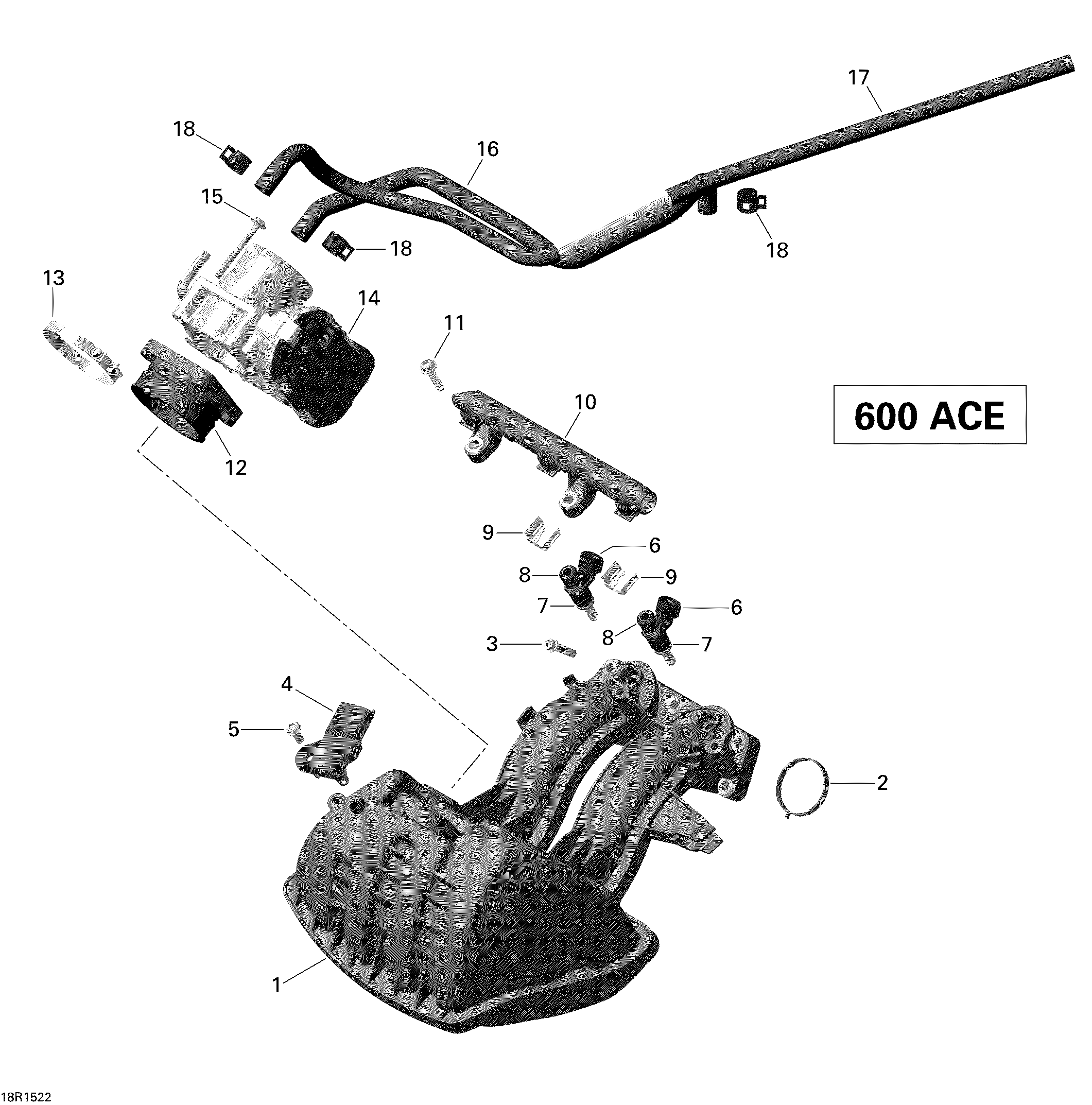

02- Air Intake Manifold And Throttle Body _18R1522 для BRP Ski-Doo Renegade Sport 600ACE XS137 - 2015
-
№АртикулНазвание
-
1420867025 Air Intake Manifold Ass'y. Includes 1 to 2Air Intake Manifold Ass'y. Includes 1 to 2
-
2420431660 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
5420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
6420874838 Injection Valve Ass'y. Includes 6 to 8Injection Valve Ass'y. Includes 6 to 8
-
7420431890 O-RingO-Ring
-
8420631220 O-RingO-Ring
-
9420853030 ClipClip
-
10420874960 Fuel RailFuel Rail
-
11420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
12420867110 Intake NeckIntake Neck
-
13420251830 Hose ClampHose Clamp
-
14420893148 Throttle BodyThrottle Body
-
15420441588 Flanged Torx Screw M6 X 50Flanged Torx Screw M6 X 50
-
16420201490 Molded HoseMolded Hose
-
17420201495 Molded HoseMolded Hose
-
18420853511 ClampClamp
