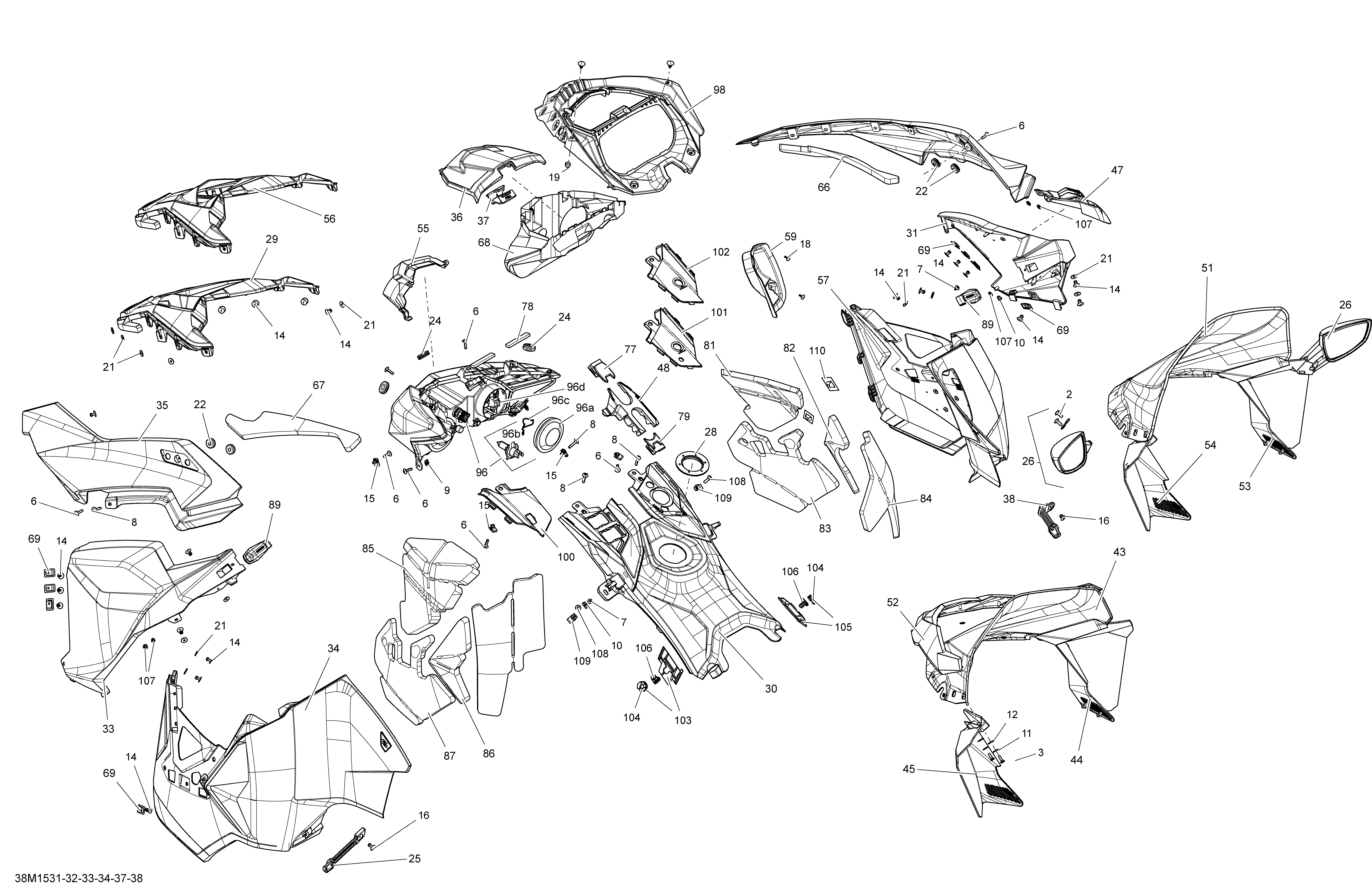

09- Hood _38M1532 для BRP Ski-Doo Renegade Sport 600ACE XS137 - 2015
-
№АртикулНазвание
-
3250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
6250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
7250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
8250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
9250100035 Jack Nut M5Jack Nut M5
-
10250100156 Weld Nut M4Weld Nut M4
-
11250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
12250200025 Washer M5Washer M5
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
16293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
18250000725 Screw M4 X 16Screw M4 X 16
-
21517124300 WasherWasher
-
22517302841 GrommetGrommet
-
24517303756 GrommetGrommet
-
25517303808 LH Panel LatchLH Panel Latch
-
28517304518 Console NutConsole Nut
-
29517305624 Orange Race Center HoodOrange Race Center Hood
-
30517305659 Catalyste Gray Rear ConsoleCatalyste Gray Rear Console
-
31517305658 Orange Race RH PanelOrange Race RH Panel
-
33517305668 Orange Race LH PanelOrange Race LH Panel
-
34517305666 Orange Race LH Flashing PanelOrange Race LH Flashing Panel
-
35517305661 Gray Catalyste RH HoodGray Catalyste RH Hood
-
35517305662 Gray Catalyste LH HoodGray Catalyste LH Hood
-
36517304912 Upper Storage Access CoverUpper Storage Access Cover
-
37517304917 Cover LatchCover Latch
-
38517304919 RH Panel LatchRH Panel Latch
-
43517304927 Windshield 345mmWindshield 345mm
-
44517304928 RH Air DeflectorRH Air Deflector
-
45517304929 LH Air DeflectorLH Air Deflector
-
47517304935 RH Panel Vent GridRH Panel Vent Grid
-
48517304970 Console SupportConsole Support
-
52517305007 Windshield SupportWindshield Support
-
55517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
57517305652 Orange Race RH Panel TrimOrange Race RH Panel Trim
-
59517305061 Deep Black RH ConsoleDeep Black RH Console
-
66517305090 RH Rear Hood FoamRH Rear Hood Foam
-
67517305091 LH Rear Hood FoamLH Rear Hood Foam
-
68517305095 TrunkTrunk
-
69517305109 Rivet PlateRivet Plate
-
77517305148 Support Console CapSupport Console Cap
-
78517305157 Seal JointSeal Joint
-
79517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
81517305196 RH Upper Panel FoamRH Upper Panel Foam
-
82517305197 RH Center Panel FoamRH Center Panel Foam
-
83517305198 RH Lower Panel FoamRH Lower Panel Foam
-
84517305199 RH Rear Panel FoamRH Rear Panel Foam
-
85517305200 LH Upper Panel FoamLH Upper Panel Foam
-
86517305201 LH Center Panel FoamLH Center Panel Foam
-
87517305202 LH Lower Panel FoamLH Lower Panel Foam
-
88517305203 LH Rear Panel FoamLH Rear Panel Foam
-
89517305279 Panel LatchPanel Latch
-
96517305497 Headlamp. Includes 96 To 96dHeadlamp. Includes 96 To 96d
-
96a219400070 CapCap
-
96b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
96c219800282 Holder BracketHolder Bracket
-
96d219800281 SpringSpring
-
98517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
100517305513 Deep Black LH Front ConsoleDeep Black LH Front Console
-
102517305549 RH Front ConsoleRH Front Console
-
103517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
104517305723 RingRing
-
105517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
106517305734 PinPin
-
107732610072 Push NutPush Nut
-
107250100158 Push NutPush Nut
-
108250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
109250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
110517305451 Heat ShieldHeat Shield
