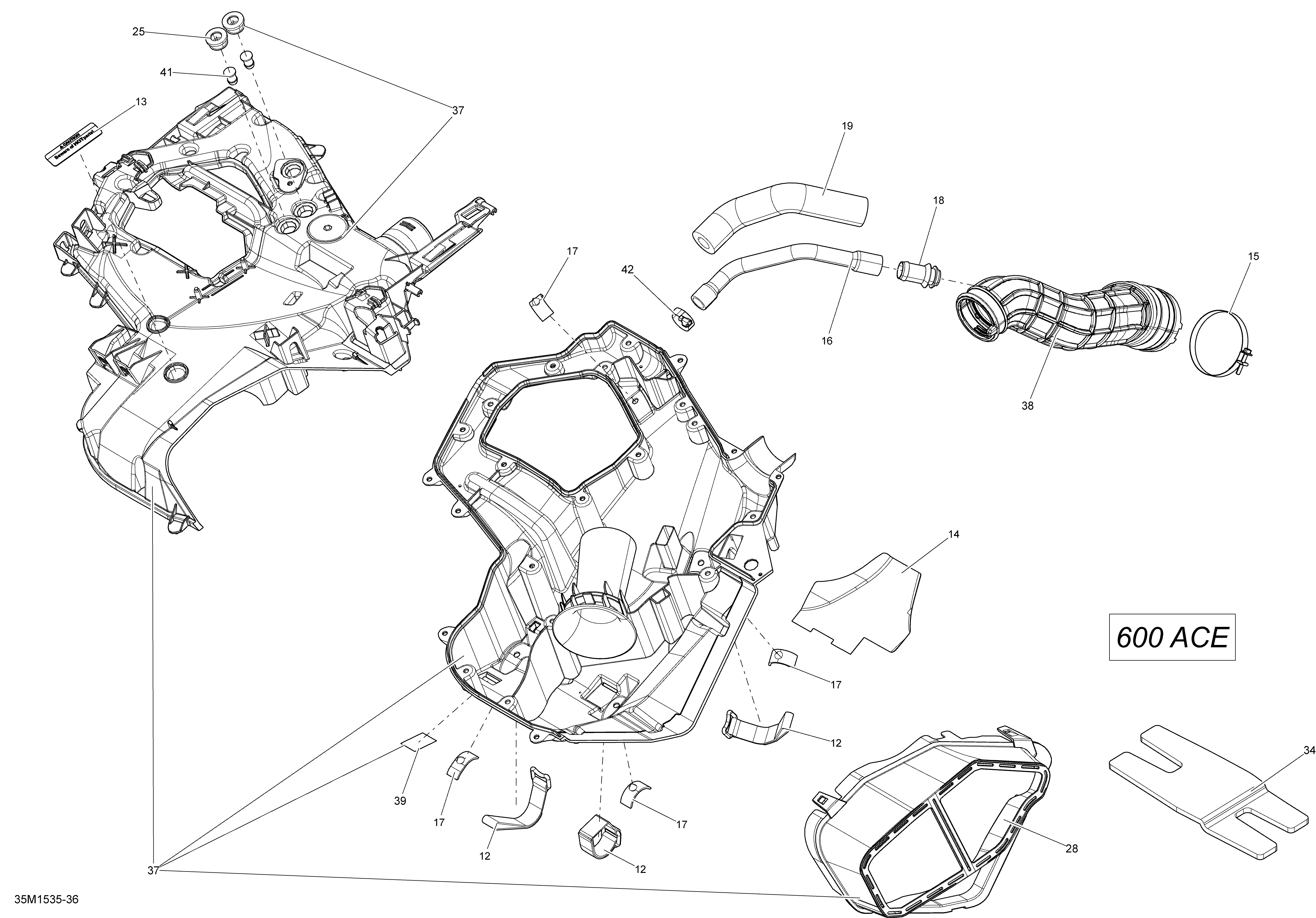

02- Air Intake System _35M1535 для BRP Ski-Doo Tundra Sport 600ACE XU137 - 2015
-
№АртикулНазвание
-
12508000532 Velcro StripVelcro Strip
-
13516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
14508000622 Reflective SheetReflective Sheet
-
15293650212 GEMI ClampGEMI Clamp
-
16508000774 Formed Vent HoseFormed Vent Hose
-
17508000537 StopperStopper
-
18273000234 BreatherBreather
-
19508000648 Tube IsolatorTube Isolator
-
25508000574 GrommetGrommet
-
28508000595 Air Intake FilterAir Intake Filter
-
34508000674 Insulated FoamInsulated Foam
-
37508000715 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
38508000773 Air Intake HoseAir Intake Hose
-
39509000688 Reflective SheetReflective Sheet
-
41572092900 CapCap
-
42293650172 Tridon Gear ClampTridon Gear Clamp
