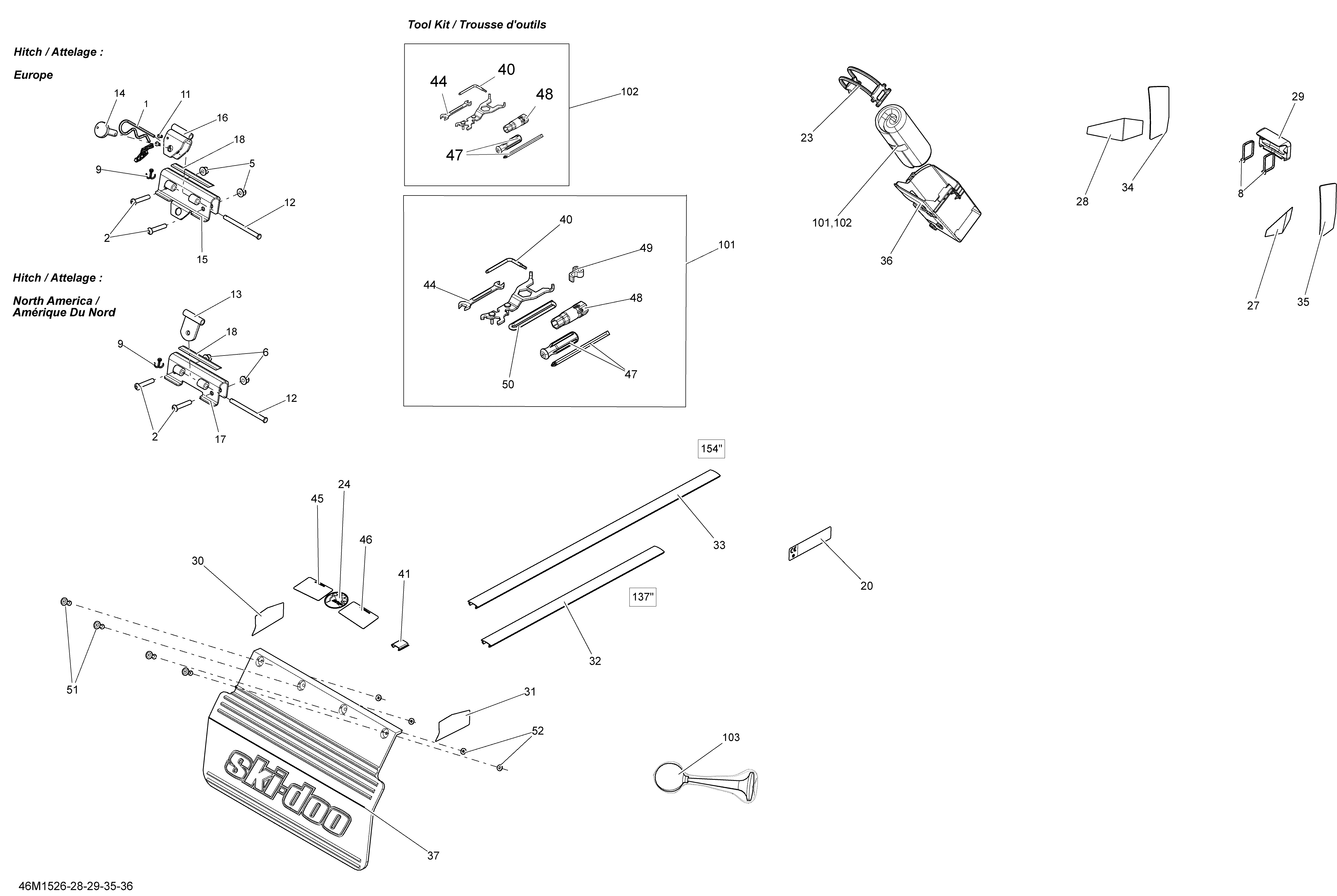

09- Utilities _46M1535 для BRP Ski-Doo Tundra Sport 600ACE XU137 - 2015
-
№АртикулНазвание
-
23520000528 LatchLatch
-
24219903947 BRP Logo, 48 mmBRP Logo, 48 mm
-
30520000880 Red LH Rear ReflectorRed LH Rear Reflector
-
31520000881 Red RH Rear ReflectorRed RH Rear Reflector
-
34520000891 Yellow RH Front ReflectorYellow RH Front Reflector
-
35520000892 Yellow LH Front ReflectorYellow LH Front Reflector
-
36520000894 Tool Kit RackTool Kit Rack
-
37520000949 Snow GuardSnow Guard
-
40520001142 Spacing ToolSpacing Tool
-
41520000829 Radiator TrimRadiator Trim
-
44529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
45516006431 LH Warning Decal, SafetyLH Warning Decal, Safety
-
46516005587 RH Warning Decal, SafetyRH Warning Decal, Safety
-
47529000004 Screw DriverScrew Driver
-
48529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
51293150101 Pop Rivet 3/16''Pop Rivet 3/16''
-
52517124300 WasherWasher
-
102529000078 Tool KitTool Kit
