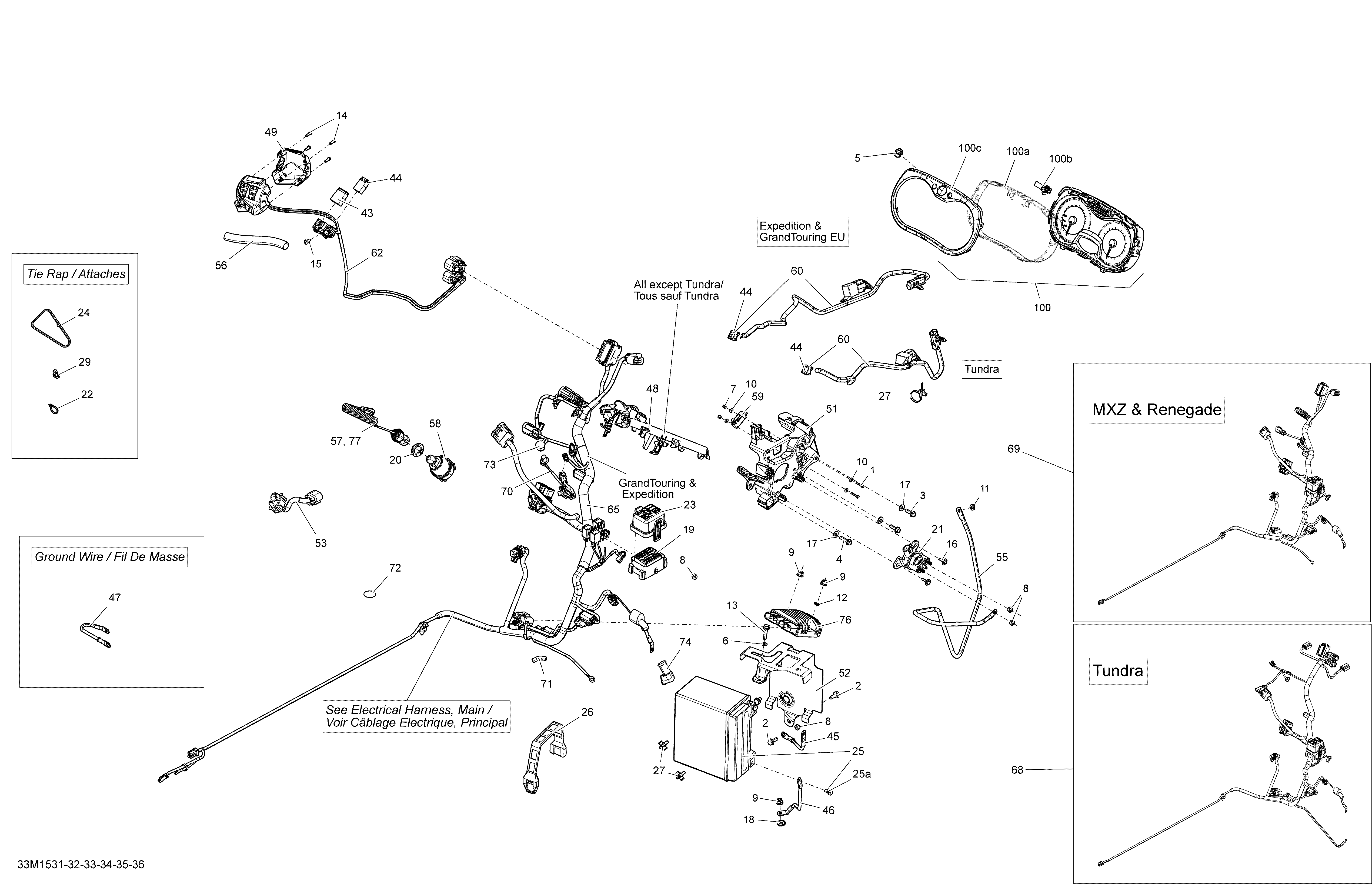

10- Electrical System _33M1535 для BRP Ski-Doo Tundra Sport 600ACE XU137 - 2015
-
№АртикулНазвание
-
1207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
3210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
7232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
11234061410 Flat Washer 6 mmFlat Washer 6 mm
-
12234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
14250000671 Torx ScrewTorx Screw
-
15250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
16250000725 Screw M4 X 16Screw M4 X 16
-
17250200039 Flat WasherFlat Washer
-
18250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
20278002963 Safety NutSafety Nut
-
21278003012 Starter RelayStarter Relay
-
22293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25415129898 Lead Battery 18 Amperes. Includes 25 To 25aLead Battery 18 Amperes. Includes 25 To 25a
-
25a250000282 Battery Bolt KitBattery Bolt Kit
-
26515176944 StrapStrap
-
27293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
44515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
46515176943 Ground WireGround Wire
-
47515177014 Ground WireGround Wire
-
49515177147 Housing PlateHousing Plate
-
51515177347 PlatePlate
-
53515177394 SwitchSwitch
-
55515177427 Battery WireBattery Wire
-
56415129879 Protector TubeProtector Tube
-
57515177457 KeyKey
-
58515177458 SwitchSwitch
-
59515177460 Switch Ass'ySwitch Ass'y
-
60515177646 Fan HarnessFan Harness
-
62515177676 HousingHousing
-
68515177755 Main Harness Ass'yMain Harness Ass'y
-
71414506600 TrimTrim
-
72518325560 Adhesive PatchAdhesive Patch
-
74710000495 Protector CapProtector Cap
-
76515177325 Voltage RegulatorVoltage Regulator
-
77860201162 KeyKey
-
100515177649 Speedometer. Model-North America, Includes 100 To 100cSpeedometer. Model-North America, Includes 100 To 100c
-
100515177806 Speedometer. Model Europe, Includes 100 To 100cSpeedometer. Model Europe, Includes 100 To 100c
-
100a415129349 LensLens
-
100b415129355 Speedometer ButtonSpeedometer Button
-
100c415129370 Gauge RingGauge Ring
