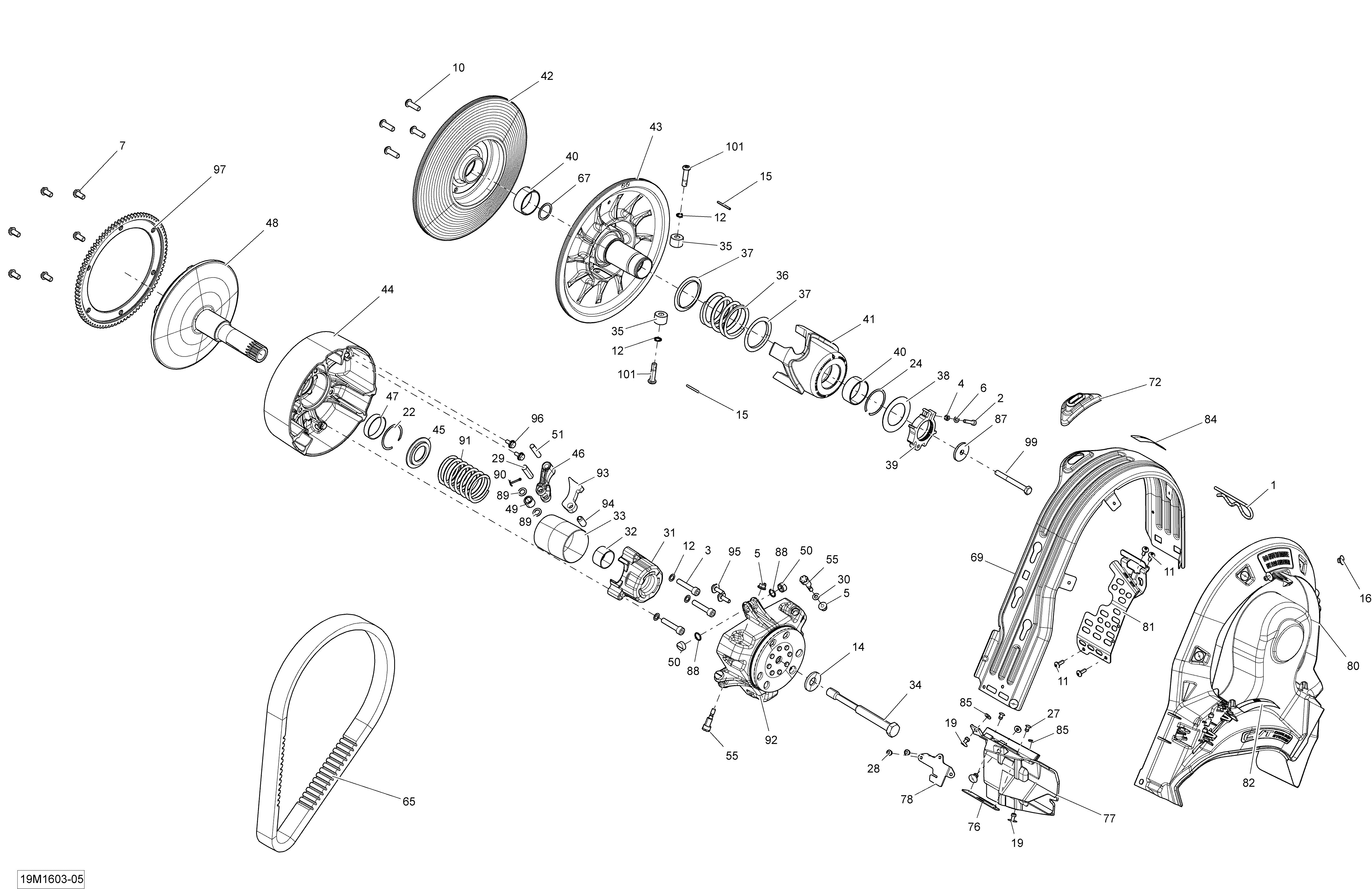

05- Pulley System - 600 CARB для BRP Ski-Doo RENEGADE 600 CARB - 2016
-
№АртикулНазвание
-
1114045200 Hair PinHair Pin
-
2205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234051410 Flat Washer M5Flat Washer M5
-
7250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
10250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
11250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
12250200009 Lock Washer 8 mmLock Washer 8 mm
-
14250200144 Conical Spring Washer M14Conical Spring Washer M14
-
15250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
16293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293370037 CirclipCirclip
-
24293370049 CirclipCirclip
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29417004308 PinPin
-
30417005600 WasherWasher
-
31417007500 Spring Cover Ass'ySpring Cover Ass'y
-
32417009204 BushingBushing
-
33417009205 GuardGuard
-
34417120000 Drive Pulley BoltDrive Pulley Bolt
-
35417127016 RollerRoller
-
36417127039 Black SpringBlack Spring
-
37417127116 Swivel AbutmentSwivel Abutment
-
38417127155 WasherWasher
-
39415129604 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
40417127318 BushingBushing
-
41417127372 Cam Ass'yCam Ass'y
-
42417127366 Slider Flange Ass'ySlider Flange Ass'y
-
43417127392 Fixe Flange Ass'yFixe Flange Ass'y
-
44417222181 Sliding Flange Ass'ySliding Flange Ass'y
-
45417222312 Spring SeatSpring Seat
-
46417222671 LeverLever
-
47417222758 BushingBushing
-
48417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
49417222947 RollerRoller
-
50417222992 Slider ShoeSlider Shoe
-
51417223164 Lever AxleLever Axle
-
55417223501 Calibration ScrewCalibration Screw
-
65417300197 Drive BeltDrive Belt
-
67417300265 SpacerSpacer
-
69417300357 Belt GuardBelt Guard
-
72417300381 GuideGuide
-
76417300421 Reinforcement PlateReinforcement Plate
-
77417300422 Front SupportFront Support
-
78417300423 Front BracketFront Bracket
-
80417300439 CVT Air DuctCVT Air Duct
-
81417300448 Belt Guard BracketBelt Guard Bracket
-
82516005503 Decal, EnglishDecal, English
-
84516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
85517225900 Flat WasherFlat Washer
-
87517302322 Strength WasherStrength Washer
-
88732401030 O-RingO-Ring
-
89417004302 Stopper WasherStopper Washer
-
90250400060 Cotter PinCotter Pin
-
91414817800 Spring (Blue/Violet)Spring (Blue/Violet)
-
92417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
93417222515 Ramp 412Ramp 412
-
94250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
95250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
96250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
97417223738 Ring GearRing Gear
-
99207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
101417127294 Pivot StudPivot Stud
