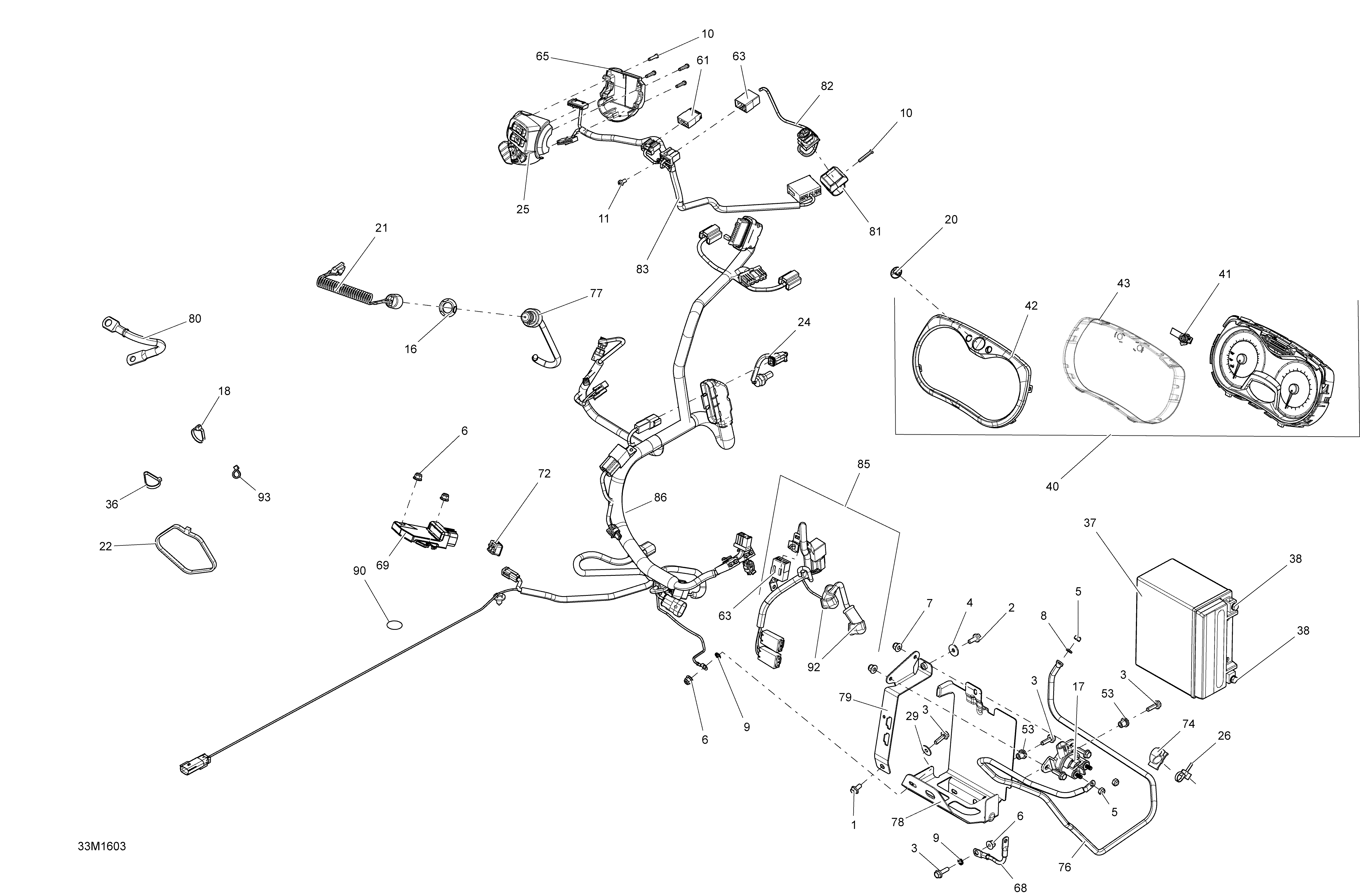

10- Electrical System - 600 CARB для BRP Ski-Doo RENEGADE 600 CARB - 2016
-
№АртикулНазвание
-
1207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4224061201 Flat WasherFlat Washer
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
16278002963 Safety NutSafety Nut
-
17278003012 Starter RelayStarter Relay
-
18293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
21515178146 Cap-Dess.Cap-Dess.
-
22293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24515177814 Sensor TemperatureSensor Temperature
-
25515177022 LH HousingLH Housing
-
26293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
27293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
29250200082 Flat WasherFlat Washer
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
38250000282 Battery Bolt KitBattery Bolt Kit
-
40515177914 SpeedometerSpeedometer
-
41415129355 Speedometer ButtonSpeedometer Button
-
42415129370 Gauge RingGauge Ring
-
43415129349 LensLens
-
53293450275 InsertInsert
-
61515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
63515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
65515175926 Housing Switch PlateHousing Switch Plate
-
68515176358 Ground WireGround Wire
-
69515176364 Voltage RegulatorVoltage Regulator
-
72515176681 LockLock
-
74515177066 ClipClip
-
76515177208 Battery/Starter WireBattery/Starter Wire
-
77515177249 DESS SwitchDESS Switch
-
78515177264 Battery SupportBattery Support
-
79515177266 Battery StripBattery Strip
-
80515177289 Ground WireGround Wire
-
81515177310 Kill Switch SupportKill Switch Support
-
82515177362 Kill SwitchKill Switch
-
83515177609 Steering Wiring HarnessSteering Wiring Harness
-
85515177832 Electrical Start HarnesElectrical Start Harnes
-
86515177980 Main HarnessMain Harness
-
90518325560 Adhesive PatchAdhesive Patch
-
92710000495 Protector CapProtector Cap
-
93293750001 Tie-Rap 94 mmTie-Rap 94 mm
