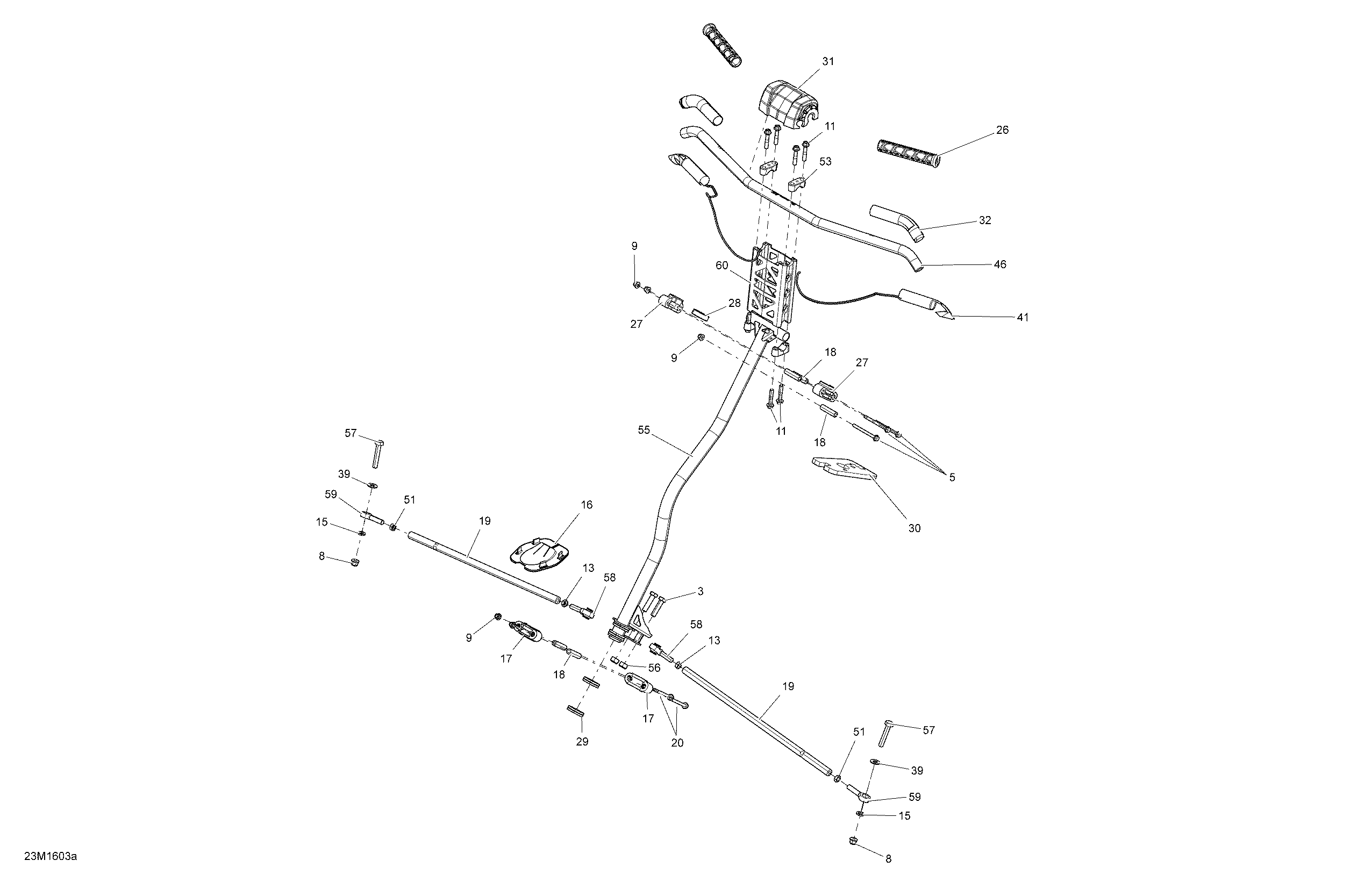

07- Steering - 600 CARB для BRP Ski-Doo RENEGADE 600 CARB - 2016
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
5207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
8233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
9233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
15503192496 WasherWasher
-
16506152163 PlatePlate
-
17506152217 Lower Half-HousingLower Half-Housing
-
18506152297 Housing BushingHousing Bushing
-
19506152496 Tie-Rod Ass'y. Includes 13 + 51 + 58 + 59Tie-Rod Ass'y. Includes 13 + 51 + 58 + 59
-
26506152486 GripGrip
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
30506152521 BushingBushing
-
31506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
32506152548 IsolantIsolant
-
32506152611 IsolantIsolant
-
39506152194 WasherWasher
-
41506152602 Heating Element 28 WATTHeating Element 28 WATT
-
46506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152751 Steering SupportSteering Support
-
55506152962 Steering ColumnSteering Column
-
56232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
57207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
58506152081 LH Thread Ball JointLH Thread Ball Joint
-
59506152019 RH Thread Ball JointRH Thread Ball Joint
-
60506152571 Handlebar Extension (115mm)Handlebar Extension (115mm)
