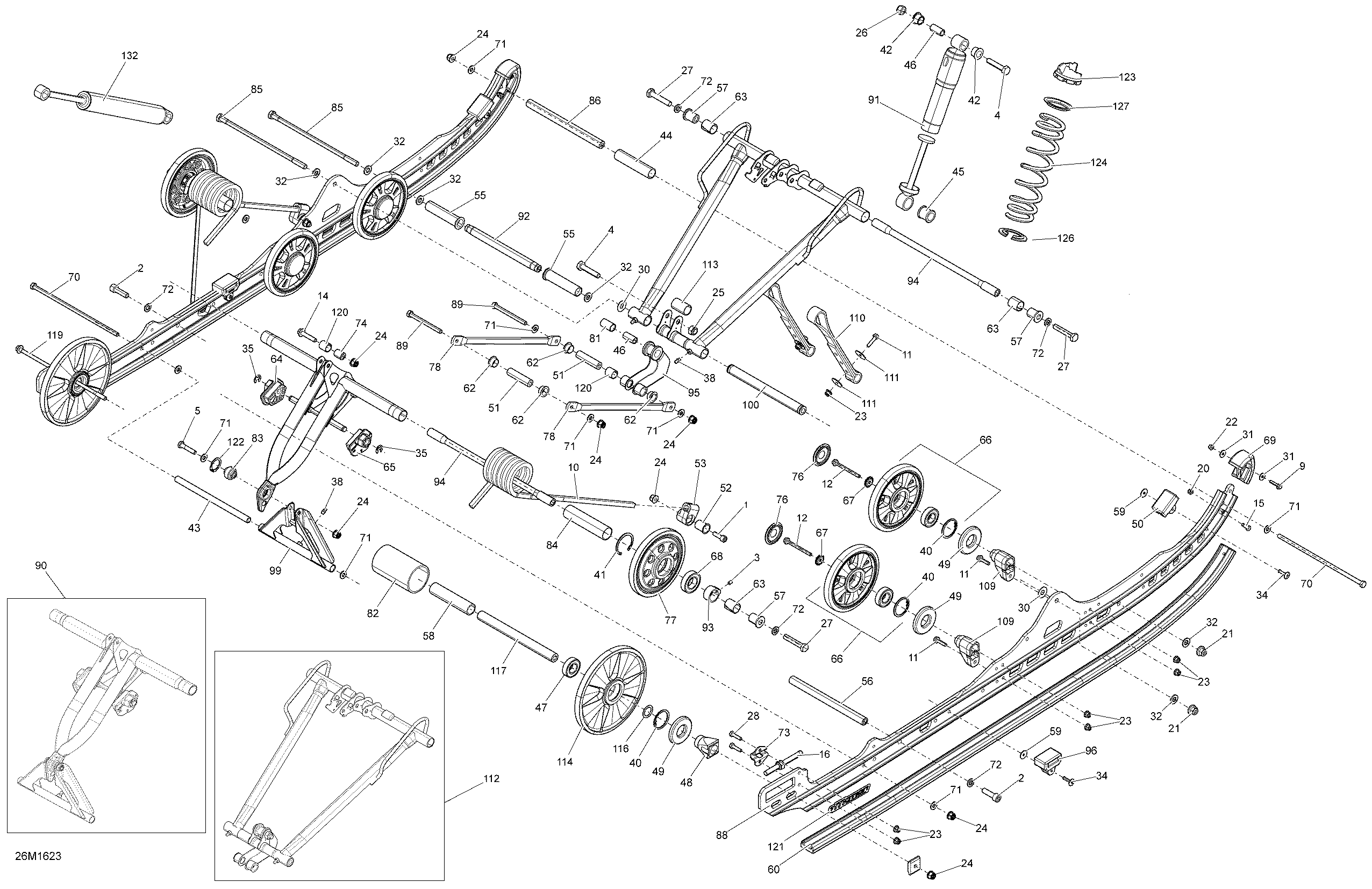

08- Rear Suspension - 600HO ETEC для BRP Ski-Doo SUMMIT 600HO E-TEC - 2016
-
№АртикулНазвание
-
1205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
2205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
3206260844 Socket Set Screw M6 X 1.0 X 8Socket Set Screw M6 X 1.0 X 8
-
4207005044 Hex. Screw M10 X 1.5 X 50Hex. Screw M10 X 1.5 X 50
-
5207084056 Hexagonal Screw M8 X 1.25 X 40Hexagonal Screw M8 X 1.25 X 40
-
10503193003 Black Spring LH, SquareBlack Spring LH, Square
-
10503193002 Black Spring RH, SquareBlack Spring RH, Square
-
11207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
11207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
12207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
14207684044 Hex. Flanged Screw M8 X 1.25 X 40Hex. Flanged Screw M8 X 1.25 X 40
-
15208562531 Phillips Screw M6 X 1.0 X 25Phillips Screw M6 X 1.0 X 25
-
16230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
20232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
21233201466 Flanged Elastic Nut M10 X 1.5Flanged Elastic Nut M10 X 1.5
-
22233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
23233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
25233601416 Elastic Locking Nut M10 X 1.5Elastic Locking Nut M10 X 1.5
-
26233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
27250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
28250000619 Hex Screw M6 X 25Hex Screw M6 X 25
-
30250200032 WasherWasher
-
31250200140 WasherWasher
-
32250200143 Flat WasherFlat Washer
-
34293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
35293370013 E-CirclipE-Circlip
-
38408200700 Grease FittingGrease Fitting
-
39414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
40415129371 Retaining RingRetaining Ring
-
41415129780 Retaining RingRetaining Ring
-
42503189117 BushingBushing
-
43503189156 Pivot Arm AxlePivot Arm Axle
-
44503189265 SpacerSpacer
-
45503189271 BushingBushing
-
46503189282 BushingBushing
-
47503190396 Ball BearingBall Bearing
-
48503190428 Rear Wheel SpacerRear Wheel Spacer
-
49503190434 Labyrinth SealLabyrinth Seal
-
50503190576 Rubber StopperRubber Stopper
-
51503190643 Axle Bar (Long)Axle Bar (Long)
-
52503190754 Retainer CushionRetainer Cushion
-
53503191183 Spring SupportSpring Support
-
55503191259 Center BushingCenter Bushing
-
56503191260 Axle StrapAxle Strap
-
57503191262 BushingBushing
-
58503191263 Rear SpacerRear Spacer
-
59503191273 WasherWasher
-
60503191198 Black Slider Shoe 154''. Package SP 154''Black Slider Shoe 154''. Package SP 154''
-
60503191499 Black Slider Shoe 146''. Package SP 146''Black Slider Shoe 146''. Package SP 146''
-
62503191555 Swivel BushingSwivel Bushing
-
63503191556 Extended BushingExtended Bushing
-
64503191565 LH Cam AdjusterLH Cam Adjuster
-
65503191566 RH Cam AdjusterRH Cam Adjuster
-
66503191755 Black Wheel Ass'y, 152 mmBlack Wheel Ass'y, 152 mm
-
67503191820 Wheel Cup M6Wheel Cup M6
-
68503193548 Ball BearingBall Bearing
-
69503192299 Runner ProtectorRunner Protector
-
70503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
71503192494 WasherWasher
-
72503192496 WasherWasher
-
73503192583 TensionerTensioner
-
74503192606 Rear Shock AxleRear Shock Axle
-
76503192771 Black - Wheel CapBlack - Wheel Cap
-
77503192808 Black Wheel Ass'y 155 mmBlack Wheel Ass'y 155 mm
-
78503192900 Acceleration Link RodAcceleration Link Rod
-
81503193037 BushingBushing
-
82503193097 BushingBushing
-
83503193148 Spherical BearingSpherical Bearing
-
84503193218 BushingBushing
-
85503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
86503193332 Strap AxleStrap Axle
-
88503193827 Black Runner 146''. Package-SP Model Black-BlackBlack Runner 146''. Package-SP Model Black-Black
-
88503193828 Black Runner 154''. Package-SP Model Black-BlackBlack Runner 154''. Package-SP Model Black-Black
-
88503193936 White Runner 146''. Package-SP (CXGA, CXGB, CXGE) Model Red-RedWhite Runner 146''. Package-SP (CXGA, CXGB, CXGE) Model Red-Red
-
88503193938 White Runner 154''. Package-SP (CCGA, CCGB, CCGE) Model Red-RedWhite Runner 154''. Package-SP (CCGA, CCGB, CCGE) Model Red-Red
-
89503193372 Screw M8 X 90Screw M8 X 90
-
90503193419 Rear Arm Ass'yRear Arm Ass'y
-
91503193207 Central ShockCentral Shock
-
92503193435 Pivot AxlePivot Axle
-
93503193439 Retaining RingRetaining Ring
-
94503193441 Upper ShaftUpper Shaft
-
95503193464 RockerRocker
-
96503193504 Rubber StopperRubber Stopper
-
99503193699 Pivot ArmPivot Arm
-
100503193702 Lower AxleLower Axle
-
109503193894 Casted SupportCasted Support
-
110503193991 Stopper StrapStopper Strap
-
111503193995 WasherWasher
-
112503194020 Front Arm Ass'yFront Arm Ass'y
-
113503194029 SpacerSpacer
-
114503194055 ROUE 200 Wheel 200ROUE 200 Wheel 200
-
115503194143 HookHook
-
116503194177 WasherWasher
-
117503194200 Rear AxleRear Axle
-
119503194265 BoltBolt
-
120505072663 Leg CushionLeg Cushion
-
121516006381 Runner DecalRunner Decal
-
122293370090 Inner CirclipInner Circlip
-
123505073625 Adjustment CamAdjustment Cam
-
124503191882 Black SpringBlack Spring
-
126503194270 Spring StopperSpring Stopper
-
127503191872 Spring GuideSpring Guide
-
132503193189 Rear ShockRear Shock
