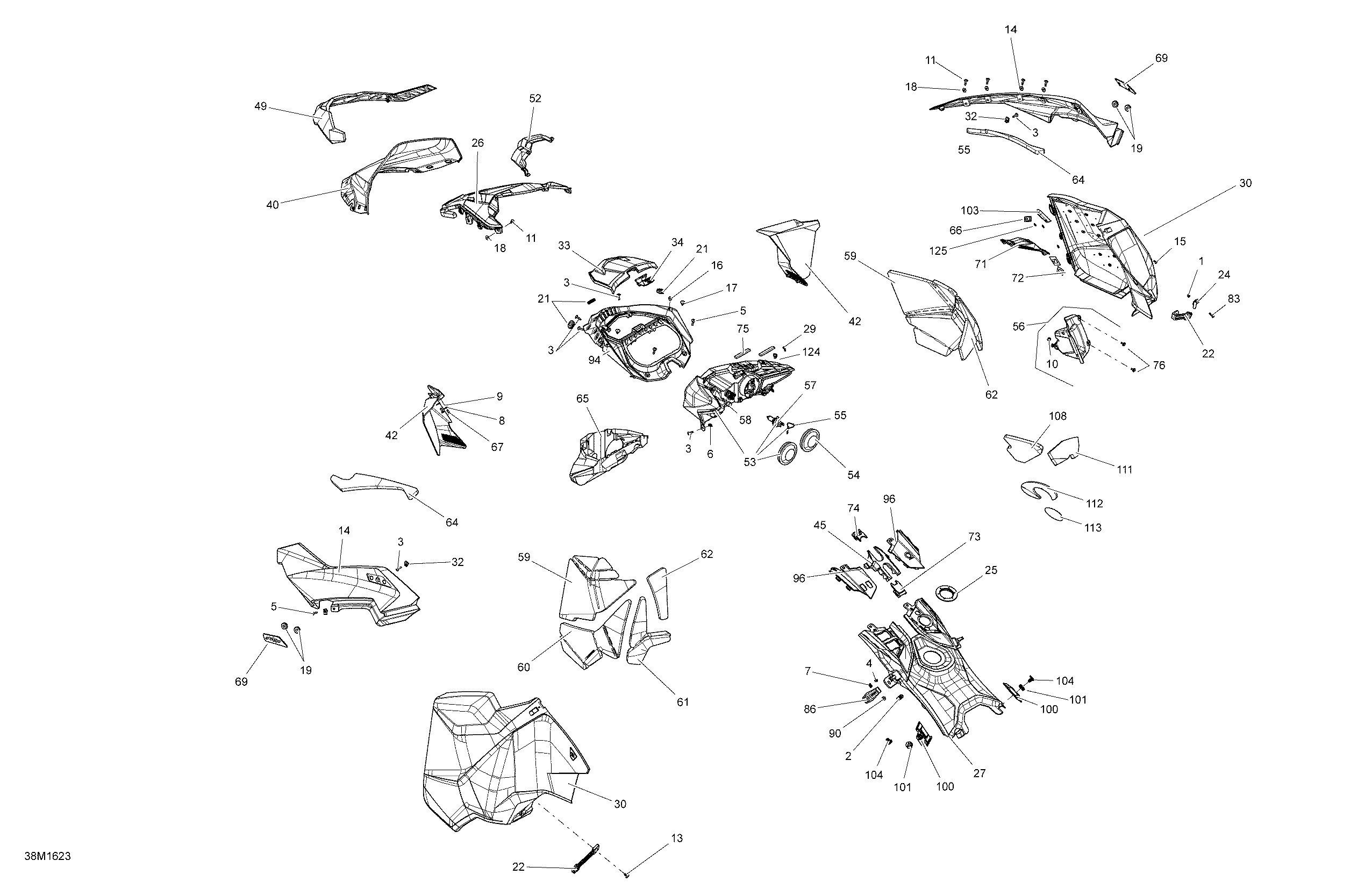

09- Hood - 600HO ETEC для BRP Ski-Doo SUMMIT 600HO E-TEC - 2016
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
3250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
5250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
6250100035 Jack Nut M5Jack Nut M5
-
7250100156 Weld Nut M4Weld Nut M4
-
8250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
9250200025 Washer M5Washer M5
-
10275500241 Black - CapBlack - Cap
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
14517305239 Deep Black - RH Hood. Black-Black ModelDeep Black - RH Hood. Black-Black Model
-
14517305240 Deep Black - LH Hood. Black-Black ModelDeep Black - LH Hood. Black-Black Model
-
14517305633 Red LH Hood. CanAm Red ModelRed LH Hood. CanAm Red Model
-
14517305634 Red RH Hood. CanAm Red ModelRed RH Hood. CanAm Red Model
-
16293830005 Rubber BumperRubber Bumper
-
17414644300 DartDart
-
18517124300 WasherWasher
-
19517302841 GrommetGrommet
-
21517303756 GrommetGrommet
-
22517303612 RH Panel LatchRH Panel Latch
-
22517303808 LH Panel LatchLH Panel Latch
-
24517304221 Latch SupportLatch Support
-
25517304518 Console NutConsole Nut
-
26517304796 Deep Black - Center Hood. Black-Black ModelDeep Black - Center Hood. Black-Black Model
-
26517305632 White Center Hood. CanAm Red ModelWhite Center Hood. CanAm Red Model
-
27517305641 Deep Black - Rear Console. Black-Black ModelDeep Black - Rear Console. Black-Black Model
-
27517305786 CanAm Red, Rear Console. Can-Am Red ModelCanAm Red, Rear Console. Can-Am Red Model
-
29250000725 Screw M4 X 16Screw M4 X 16
-
30517305689 Red LH Panel. CanAm Red ModelRed LH Panel. CanAm Red Model
-
30517305681 Red RH Panel. Panel Without Handle Opening, Can-Am Red Model,Red RH Panel. Panel Without Handle Opening, Can-Am Red Model,
-
30517305679 Red RH Panel. Panel With Handle Opening, Can-Am Red Model,Red RH Panel. Panel With Handle Opening, Can-Am Red Model,
-
30517305510 Deep Black LH Panel. Black-Black ModelDeep Black LH Panel. Black-Black Model
-
30517305507 Deep Black - RH Panel. Panel Without Handle Opening, Black-Black ModelDeep Black - RH Panel. Panel Without Handle Opening, Black-Black Model
-
30517305508 Deep Black - RH Panel. Panel With Handle Opening, Black-Black ModelDeep Black - RH Panel. Panel With Handle Opening, Black-Black Model
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
33517304912 Upper Storage Access Cover, Deep BlackUpper Storage Access Cover, Deep Black
-
34517304917 Cover LatchCover Latch
-
40517304921 Windshield 235mm. Package SP North AmericaWindshield 235mm. Package SP North America
-
40517304927 Windshield 345mm. Package SP EURWindshield 345mm. Package SP EUR
-
42517304928 RH Air Deflector, Black 63% Transm.. Package SP EURRH Air Deflector, Black 63% Transm.. Package SP EUR
-
42517304929 LH Air Deflector, Black 63% Transm.. Package SP EURLH Air Deflector, Black 63% Transm.. Package SP EUR
-
45517304970 Console Support, Deep BlackConsole Support, Deep Black
-
49517304922 Deep Black, Windshield Support - Short. Package SP North AmericaDeep Black, Windshield Support - Short. Package SP North America
-
49860200944 Windshield Support Long, Yellow 2000. Package SP EURWindshield Support Long, Yellow 2000. Package SP EUR
-
52517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
53517305762 HeadlampHeadlamp
-
54219400070 CapCap
-
57515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
55219800282 Holder BracketHolder Bracket
-
58219800281 SpringSpring
-
56517305060 Deep Black RH ConsoleDeep Black RH Console
-
59517305082 RH Upper Panel FoamRH Upper Panel Foam
-
59517305086 LH Upper Panel FoamLH Upper Panel Foam
-
60517305087 LH Center Panel FoamLH Center Panel Foam
-
61517305088 LH Lower Panel FoamLH Lower Panel Foam
-
62517305085 RH Rear Panel FoamRH Rear Panel Foam
-
62517305089 LH Rear Panel FoamLH Rear Panel Foam
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
64517305091 LH Rear Hood FoamLH Rear Hood Foam
-
65517305095 Trunk, Deep BlackTrunk, Deep Black
-
66517305109 Rivet PlateRivet Plate
-
67250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
69517305137 RH Hood Filler Plate, SKI-DOORH Hood Filler Plate, SKI-DOO
-
69517305138 LH Hood Filler Plate, SKI-DOOLH Hood Filler Plate, SKI-DOO
-
71517305140 RH Panel Vent GridRH Panel Vent Grid
-
72517305451 Heat ShieldHeat Shield
-
73517305148 Support Console Cap, Deep BlackSupport Console Cap, Deep Black
-
74517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
75517305157 Seal JointSeal Joint
-
76250000725 Screw M4 X 16Screw M4 X 16
-
83250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
86517305279 Panel LatchPanel Latch
-
94517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
96517305128 Deep Black - LH Front ConsoleDeep Black - LH Front Console
-
96517305549 Deep Black - RH Front ConsoleDeep Black - RH Front Console
-
100517305722 LH Panel Clip Ass'y, BlackLH Panel Clip Ass'y, Black
-
100517305724 RH Panel Clip Ass'y, BlackRH Panel Clip Ass'y, Black
-
101517305723 RingRing
-
103517305731 BumperBumper
-
104517305734 PinPin
-
108517305791 FoamFoam
-
111517305794 FoamFoam
-
112517305795 FoamFoam
-
113517305796 Rubber SheetRubber Sheet
-
121250000721 Torx ScrewTorx Screw
-
124250100158 Push NutPush Nut
-
125732610072 Push NutPush Nut
