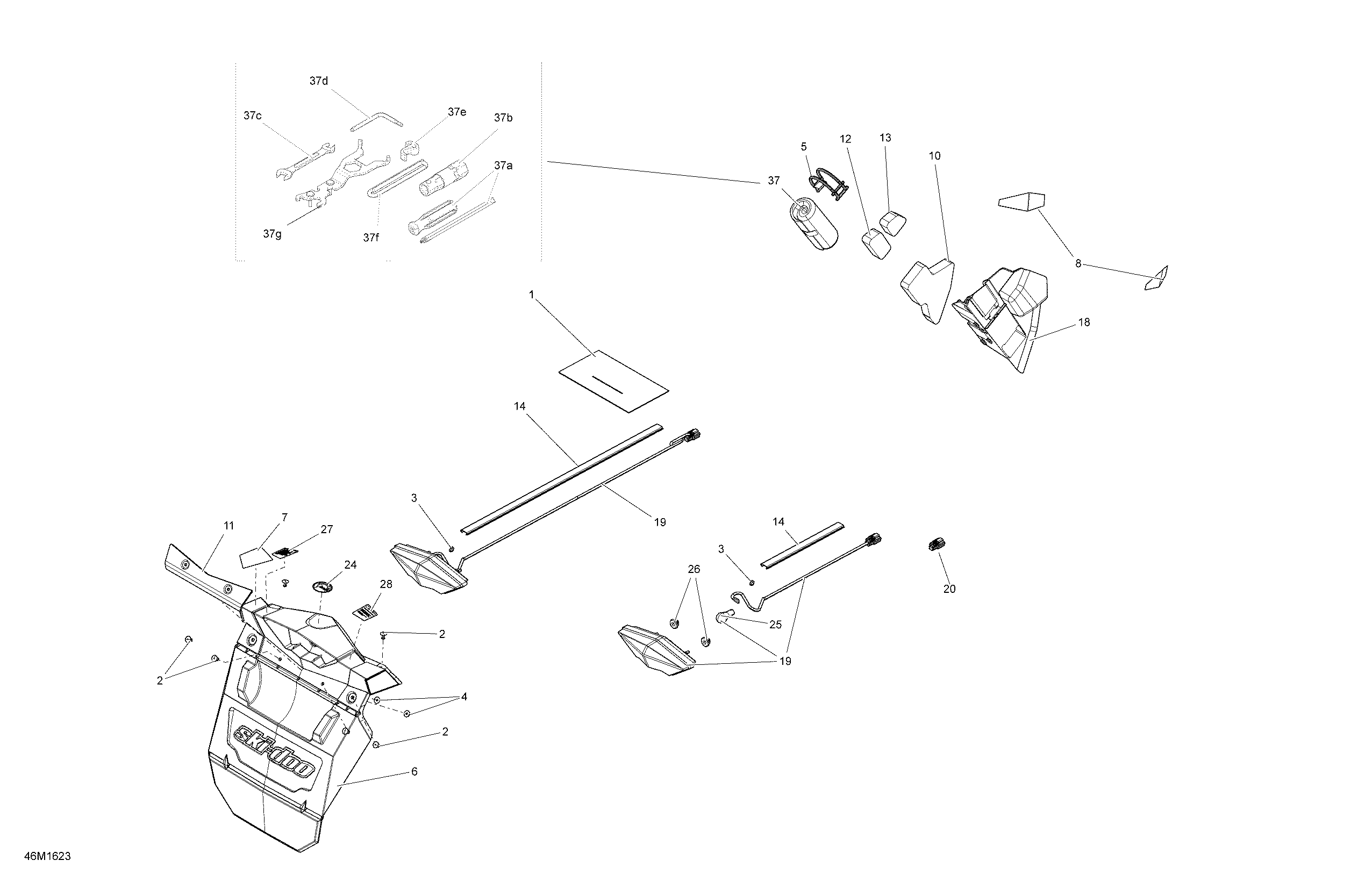

09- Utilities - 600 HO ETEC для BRP Ski-Doo SUMMIT 600HO E-TEC - 2016
-
№АртикулНазвание
-
1219400038 Form WarantyForm Waranty
-
2293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
3293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4517124300 WasherWasher
-
5520000528 LatchLatch
-
6520000784 Snow GuardSnow Guard
-
7520001161 Red LH Rear ReflectorRed LH Rear Reflector
-
7520001162 Red RH Rear ReflectorRed RH Rear Reflector
-
8520000718 Yellow RH Front ReflectorYellow RH Front Reflector
-
8520000719 Yellow LH Front ReflectorYellow LH Front Reflector
-
10520001059 FoamFoam
-
11520000751 ReinforcementReinforcement
-
12520001061 FoamFoam
-
13520001062 FoamFoam
-
14520000829 Radiator TrimRadiator Trim
-
18520000842 Tool Kit RackTool Kit Rack
-
19520001559 Rear LightRear Light
-
20515178024 HousingHousing
-
23520000991 DVD OwnerDVD Owner
-
24516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
25520000758 BulbBulb
-
26705003666 Rubber GrommetRubber Grommet
-
27516006910 Safety LabelSafety Label
-
28516005591 Warning Decal, CargoWarning Decal, Cargo
-
30520001556 OPER GUIDE 16. Not illustratedOPER GUIDE 16. Not illustrated
-
37529000077 Tool KitTool Kit
-
37a529000004 Screw DriverScrew Driver
-
37b520001142 Spacing ToolSpacing Tool
-
37c529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
37D529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
37e529000060 Starter GripStarter Grip
-
37f412500200 Starter Rope, MeterStarter Rope, Meter
-
37g520001499 WrenchWrench
