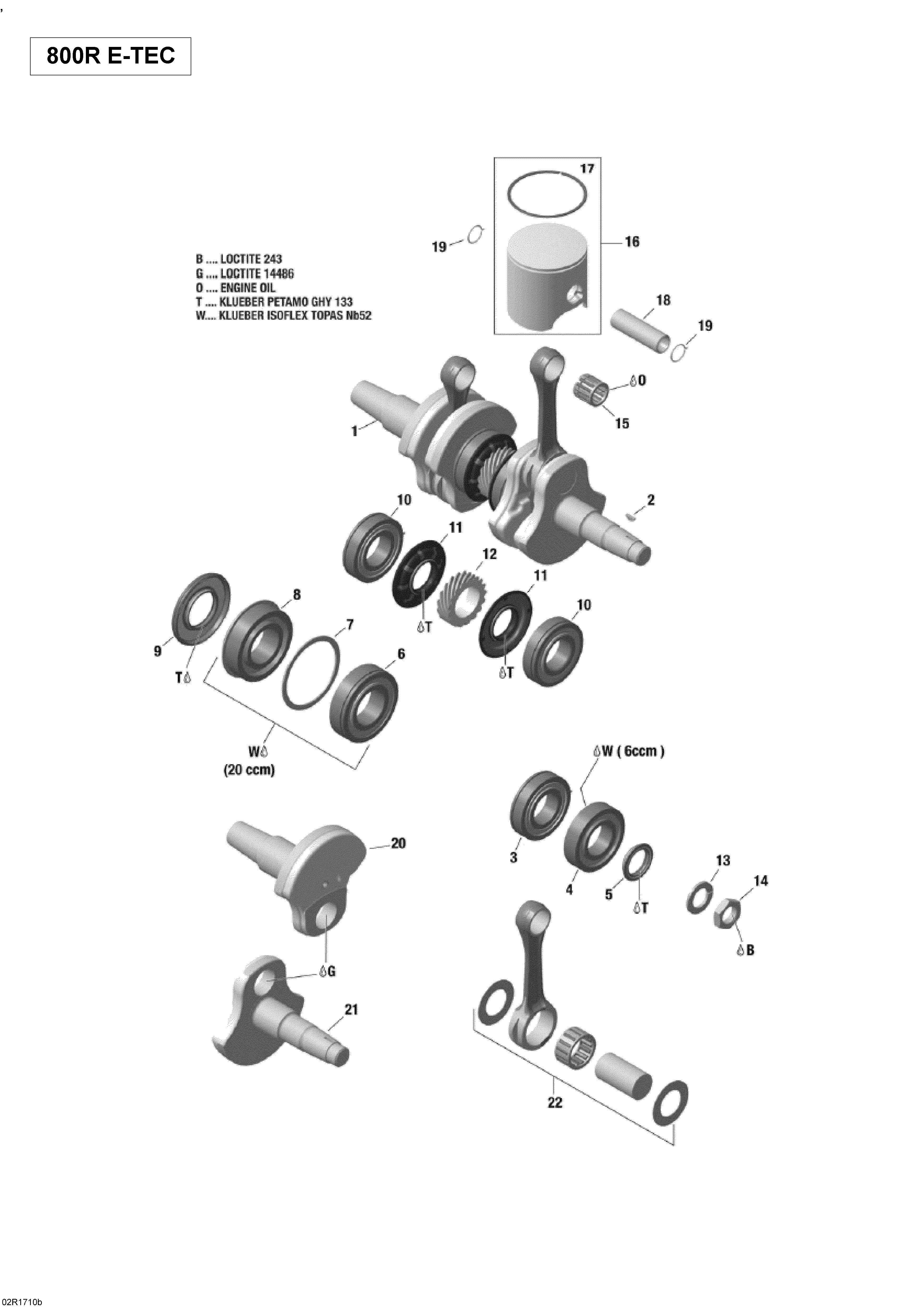

01- Crankshaft And Pistons - 800R E-TEC для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017
-
№АртикулНазвание
-
1420893480 Crankshaft Ass'y. Includes 1 To 12Crankshaft Ass'y. Includes 1 To 12
-
2420246015 Woodruff KeyWoodruff Key
-
3420832175 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931795 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
6420832602 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420832702 Ball BearingBall Bearing
-
9420931284 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
10420832175 Ball BearingBall Bearing
-
11420931455 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
12420834565 Central GearCentral Gear
-
13420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
14420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
15420832030 Needle BearingNeedle Bearing
-
16420893436 Piston Ass'y, 81.852 mm. Includes 16 To 17Piston Ass'y, 81.852 mm. Includes 16 To 17
-
17420815416 Semi-Trapez RingSemi-Trapez Ring
-
18420916480 Piston PinPiston Pin
-
19420845467 Piston Circlip. Included In Gasket KitPiston Circlip. Included In Gasket Kit
-
22420892568 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420892569 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
