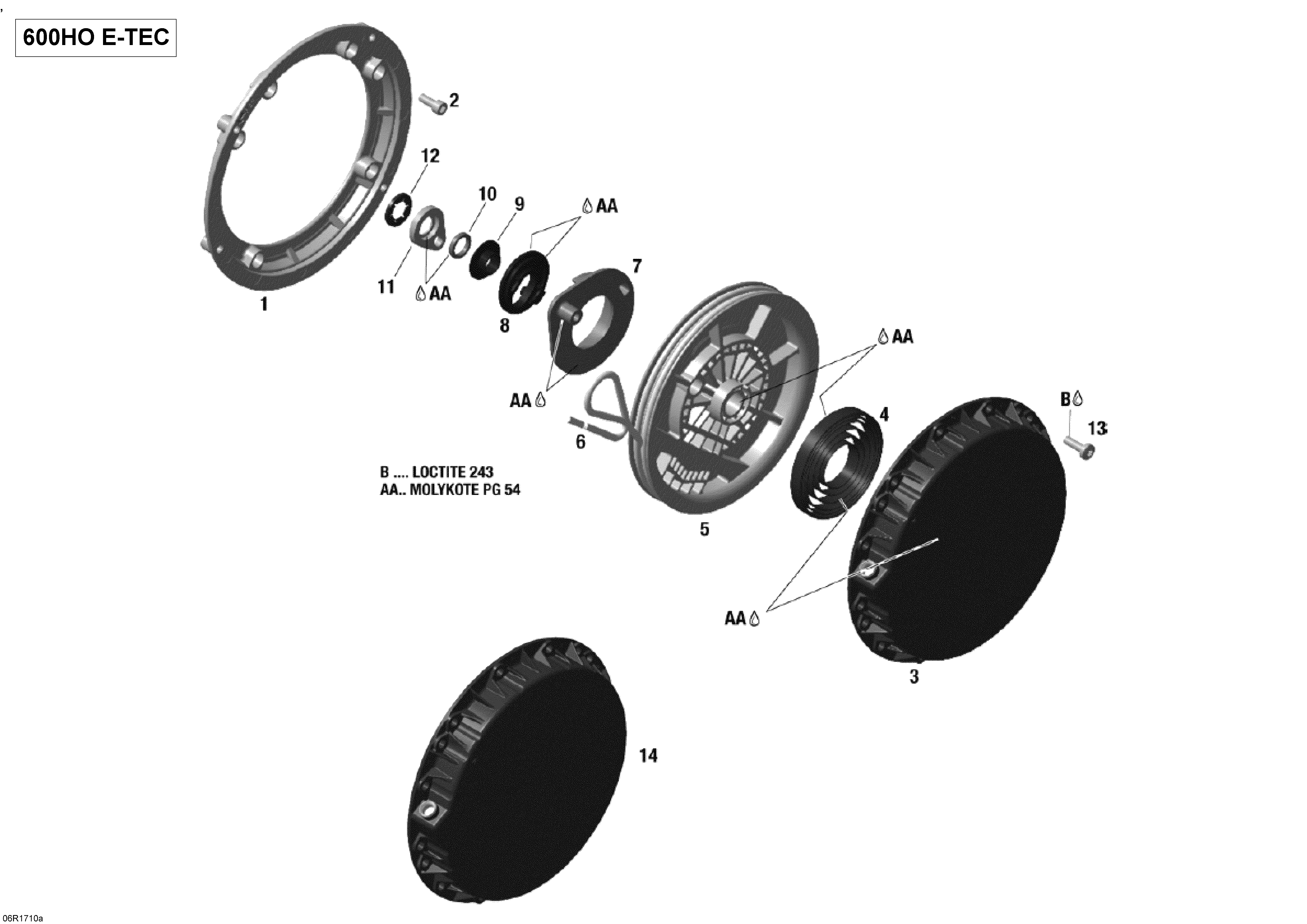

04- Rewind Starter - 600HO E-TEC для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017
-
№АртикулНазвание
-
1420810868 Flange ConnectorFlange Connector
-
2420241237 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
3420892614 Rewind Starter Ass'y. (Manual Start). Includes 3 To 12Rewind Starter Ass'y. (Manual Start). Includes 3 To 12
-
3420910256 Starter Housing. (Manual Start)Starter Housing. (Manual Start)
-
4420939115 Rewind Spring. (Manual Start)Rewind Spring. (Manual Start)
-
5420852288 Rope Sheave. (Manual Start)Rope Sheave. (Manual Start)
-
6412500200 Starter Rope, Meter. (Manual Start)Starter Rope, Meter. (Manual Start)
-
7420852633 Pawl. (Manual Start)Pawl. (Manual Start)
-
8420852640 Pawl Lock. (Manual Start)Pawl Lock. (Manual Start)
-
9420847926 Stage Sleeve. (Manual Start)Stage Sleeve. (Manual Start)
-
10420250407 O-Ring. (Manual Start). Included In Gasket KitO-Ring. (Manual Start). Included In Gasket Kit
-
11420852520 Lock Ring. (Manual Start)Lock Ring. (Manual Start)
-
12420845560 Locking Element. (Manual Start)Locking Element. (Manual Start)
-
13420941256 Hex. Collar ScrewHex. Collar Screw
-
14420910254 Cover. (Electric Start)Cover. (Electric Start)
