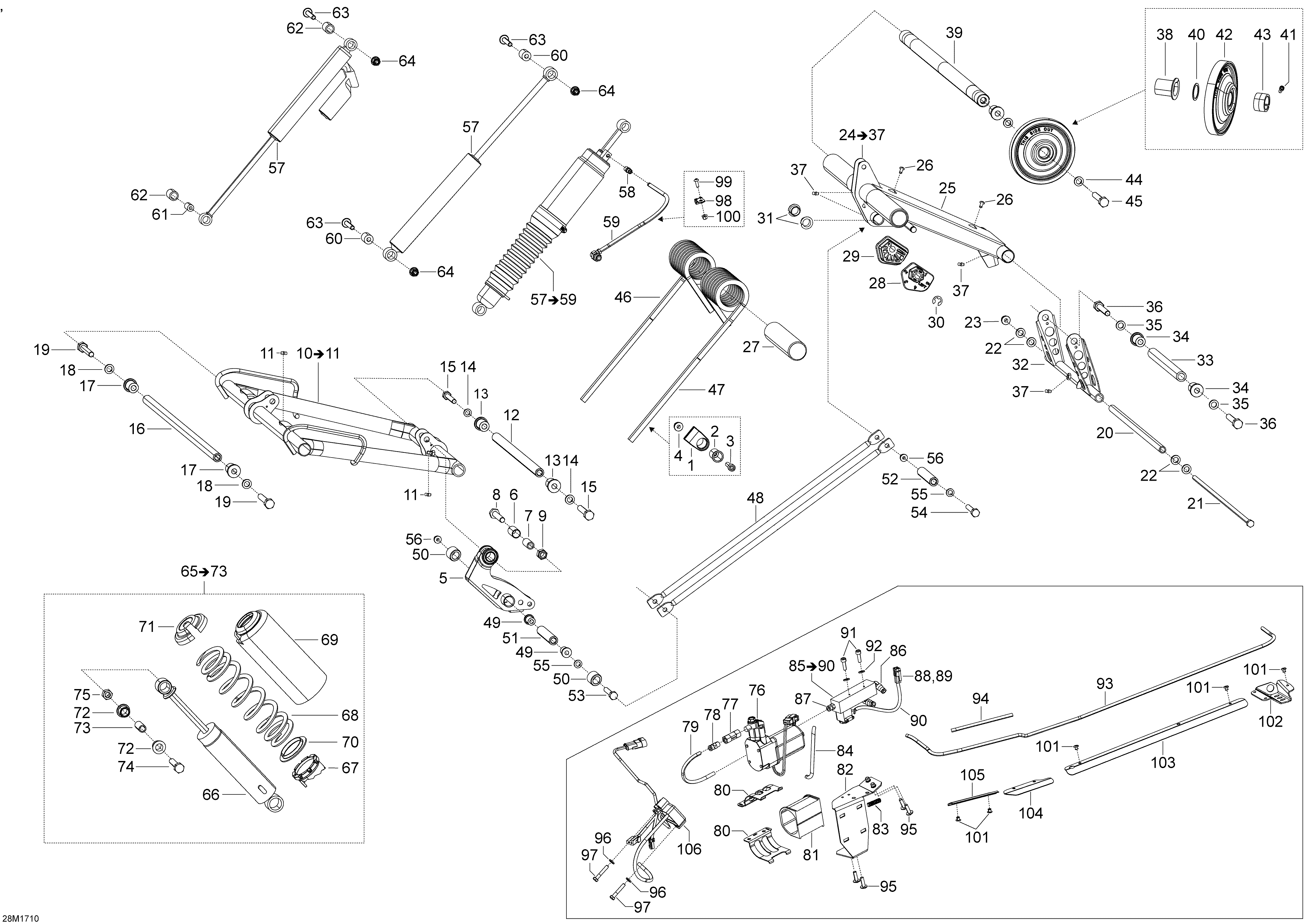

08- Rear Suspension - B для BRP Ski-Doo EXPEDITION - 2-STROKE - LE-SE-XTREME - 2017

№

Артикул

Название
1

503191183 Spring Support

Spring Support

400 ₽
2

503190754 Retainer Cushion

Retainer Cushion

890 ₽
3

205082544 Socket Head Screw M8 X 25

Socket Head Screw M8 X 25

390 ₽
4

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
5

503192211 Rocker. Model LE, SE

Rocker. Model LE, SE

26 010 ₽
5

503193464 Rocker. Model Extreme

Rocker. Model Extreme

6 700 ₽
6

503193037 Bushing

Bushing

11 760 ₽
7

503189282 Bushing

Bushing

1 530 ₽
8

207005044 Hex. Screw M10 X 50

Hex. Screw M10 X 50

1 230 ₽
9

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
10

503193274 Front arm assy. Includes 10 To 11

Front arm assy. Includes 10 To 11

71 400 ₽
11

408200700 Grease Fitting

Grease Fitting

1 330 ₽
12

503191390 Lower Shaft

Lower Shaft

9 280 ₽
13

503189324 Bushing

Bushing

3 780 ₽
14

503192496 Washer

Washer

280 ₽
15

250000605 Hex. ScrewS.GRIP M10 X 55

Hex. ScrewS.GRIP M10 X 55

2 650 ₽
16

503191391 Upper Shaft

Upper Shaft

11 450 ₽
17

503189324 Bushing

Bushing

3 780 ₽
18

503189564 Washer

Washer

250 ₽
19

250000605 Hex. ScrewS.GRIP M10 X 55

Hex. ScrewS.GRIP M10 X 55

2 650 ₽
20

503191396 Axle Pivot

Axle Pivot

26 010 ₽
21

503191397 Bolt 369mm

Bolt 369mm

2 130 ₽
22

503189157 Washer

Washer

1 730 ₽
23

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
24

503191709 Rear Arm Ass'y. Model LE, SE. Includes 24 To 37

Rear Arm Ass'y. Model LE, SE. Includes 24 To 37

33 700 ₽
25

503191398 Rear Arm. Model LE, SE

Rear Arm. Model LE, SE

101 850 ₽
25

503194186 Rear Arm. Model Extreme

Rear Arm. Model Extreme

25 070 ₽
26

414644300 Dart

Dart

370 ₽
28

503191565 LH Cam Adjuster

LH Cam Adjuster

4 620 ₽
29

503191566 RH Cam Adjuster

RH Cam Adjuster

4 620 ₽
30

293370013 E-Circlip

E-Circlip

240 ₽
31

503191555 Swivel Bushing

Swivel Bushing

1 930 ₽
32

503191393 Welded Arm Pivot

Welded Arm Pivot

5 610 ₽
33

503192330 Lower Shaft

Lower Shaft

15 470 ₽
34

503191640 Cushion

Cushion

2 900 ₽
35

503189148 Washer. Model LE, SE

Washer. Model LE, SE

980 ₽
35

503189276 Washer. Model Extreme

Washer. Model Extreme

1 150 ₽
36

205523554 Socket Head Screw M12 X 35

Socket Head Screw M12 X 35

410 ₽
37

408200700 Grease Fitting

Grease Fitting

1 330 ₽
38

503191451 Cushion

Cushion

970 ₽
39

503191405 Upper Shaft

Upper Shaft

29 720 ₽
40

503190328 Washer

Washer

3 780 ₽
41

206260844 Socket Set Screw M6 X 8

Socket Set Screw M6 X 8

540 ₽
42

503190803 Wheel 165

Wheel 165

7 920 ₽
43

503194366 Retaining Ring

Retaining Ring

12 670 ₽
44

503192491 Washer

Washer

1 590 ₽
45

250000484 Socket Screw M12 X 35

Socket Screw M12 X 35

2 650 ₽
46

503192377 Black RH Square Spring. Model LE, SE

Black RH Square Spring. Model LE, SE

16 560 ₽
46

503194340 RH Spring. Model Extreme

RH Spring. Model Extreme

10 090 ₽
47

503192378 Black LH Square Spring. Model LE, SE

Black LH Square Spring. Model LE, SE

16 560 ₽
47

503194341 LH Spring. Model Extreme

LH Spring. Model Extreme

10 090 ₽
48

503191765 Link Rod. Model LE

Link Rod. Model LE

5 990 ₽
48

503193026 Link Rod. Model SE

Link Rod. Model SE

8 650 ₽
48

503194153 Link Rod. Model Extreme

Link Rod. Model Extreme

2 430 ₽
49

503191555 Swivel Bushing

Swivel Bushing

1 930 ₽
50

503190114 Spacer. Model SE

Spacer. Model SE

5 180 ₽
51

503190643 Axle Bar (Long). Model LE

Axle Bar (Long). Model LE

5 180 ₽
51

503190113 Bar Axle (Short). Model SE

Bar Axle (Short). Model SE

12 670 ₽
52

503190643 Axle Bar (Long)

Axle Bar (Long)

5 180 ₽
53

207089044 Hex. Screw M8 X 90. Model LE, Extreme

Hex. Screw M8 X 90. Model LE, Extreme

1 210 ₽
53

230083044 Hex. Screw M8 X 130. Model SE

Hex. Screw M8 X 130. Model SE

680 ₽
54

207089044 Hex. Screw M8 X 90

Hex. Screw M8 X 90

1 210 ₽
55

503189157 Washer

Washer

1 730 ₽
56

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
57

503194217 Rear Shock. Model Extreme

Rear Shock. Model Extreme

73 830 ₽
57

503193520 Rear Shock. Model LE

Rear Shock. Model LE

67 410 ₽
57

503193000 Rear Shock Ass'y. Model SE. Includes 57 To 59

Rear Shock Ass'y. Model SE. Includes 57 To 59

226 800 ₽
58

503191939 Male Pneumatic Connector

Male Pneumatic Connector

4 420 ₽
59

503192649 Pneumatic Hose Ass'y

Pneumatic Hose Ass'y

41 230 ₽
60

414936000 Bushing. Model LE, SE

Bushing. Model LE, SE

1 910 ₽
61

503192606 Rear Shock Axle. Model Extreme

Rear Shock Axle. Model Extreme

870 ₽
62

505072663 Leg Cushion. Model Extreme

Leg Cushion. Model Extreme

2 520 ₽
63

207684044 Hex. Flanged Screw M8 X 40. Model LE, SE

Hex. Flanged Screw M8 X 40. Model LE, SE

540 ₽
63

207684044 Hex. Flanged Screw M8 X 40. Model Extreme

Hex. Flanged Screw M8 X 40. Model Extreme

540 ₽
64

233281414 Hex. Flanged Elastic Nut M8. Model LE, SE

Hex. Flanged Elastic Nut M8. Model LE, SE

490 ₽
64

233281414 Hex. Flanged Elastic Nut M8. Model Extreme

Hex. Flanged Elastic Nut M8. Model Extreme

490 ₽
66

503192266 Center Shock. Model LE, SE

Center Shock. Model LE, SE

42 350 ₽
66

503194337 Shock. Model Extreme

Shock. Model Extreme

28 290 ₽
67

505073625 Adjustment Cam. Model LE, SE

Adjustment Cam. Model LE, SE

4 340 ₽
68

503191880 Black Spring

Black Spring

7 080 ₽
69

503193663 Protector. Model LE, SE

Protector. Model LE, SE

11 760 ₽
70

503191872 Spring Guide. Model LE, SE

Spring Guide. Model LE, SE

790 ₽
71

706200881 Spring Stopper. Model LE, SE

Spring Stopper. Model LE, SE

4 340 ₽
71

503189912 Spring Stopper. Model Extreme

Spring Stopper. Model Extreme

2 520 ₽
72

503189117 Bushing

Bushing

2 700 ₽
73

503189282 Bushing

Bushing

1 530 ₽
74

207005044 Hex. Screw M10 X 50

Hex. Screw M10 X 50

1 230 ₽
75

233601416 Elastic Locking Nut M10

Elastic Locking Nut M10

610 ₽
76

706001349 Compressor. Model SE

Compressor. Model SE

157 150 ₽
77

706000940 Check Valve. Model SE

Check Valve. Model SE

12 740 ₽
78

706000869 Connector. Model SE

Connector. Model SE

3 320 ₽
79

415129507 Hose. Model SE

Hose. Model SE

6 690 ₽
80

503193103 Compressor Bracket. Model SE

Compressor Bracket. Model SE

1 590 ₽
81

706000631 Compressor Isolator. Model SE

Compressor Isolator. Model SE

4 730 ₽
82

503193484 Support. Model SE

Support. Model SE

15 470 ₽
83

513033638 Protector Tube. Model SE

Protector Tube. Model SE

0 ₽
84

515175442 Tubing 6 mm. Model SE

Tubing 6 mm. Model SE

1 590 ₽
85

503193009 Air manifold Ass'y. Model SE. Includes 85 To 90

Air manifold Ass'y. Model SE. Includes 85 To 90

106 400 ₽
86

706000872 Elbow 90°. Model SE

Elbow 90°. Model SE

2 760 ₽
87

706000869 Connector. Model SE

Connector. Model SE

3 320 ₽
88

515175232 Male Terminal. Model SE

Male Terminal. Model SE

540 ₽
89

515175654 Male Terminal Housing, 2 Circuits. Model SE

Male Terminal Housing, 2 Circuits. Model SE

710 ₽
90

515175442 Tubing 6 mm. Model SE

Tubing 6 mm. Model SE

1 590 ₽
91

205562044 Socket Head Screw M6 X 20, Scotch Grip. Model SE

Socket Head Screw M6 X 20, Scotch Grip. Model SE

200 ₽
92

234061410 Flat Washer 6 mm. Model SE

Flat Washer 6 mm. Model SE

690 ₽
93

503193034 Tube. Model SE

Tube. Model SE

1 440 ₽
94

515175442 Tubing 6 mm. Model SE

Tubing 6 mm. Model SE

1 590 ₽
95

250000722 Torx Screw M6 X 20. Model SE

Torx Screw M6 X 20. Model SE

890 ₽
96

234061410 Flat Washer 6 mm. Model SE

Flat Washer 6 mm. Model SE

690 ₽
97

207063544 Hex. Flanged Screw M6 X 35. Model SE

Hex. Flanged Screw M6 X 35. Model SE

130 ₽
98

503193393 Clamp. Model SE

Clamp. Model SE

2 490 ₽
99

235551454 Screw-Torx Button Head M5 X 14. Model SE

Screw-Torx Button Head M5 X 14. Model SE

690 ₽
100

233251434 Flanged Elastic Nut M5. Model SE

Flanged Elastic Nut M5. Model SE

740 ₽
101

293150102 Rivet 3/16''. Model SE

Rivet 3/16''. Model SE

270 ₽
102

503193004 Bracket. Model SE

Bracket. Model SE

1 650 ₽
103

503193006 Hose Protector. Model SE

Hose Protector. Model SE

870 ₽
104

503193007 Hose Protector. Model SE

Hose Protector. Model SE

760 ₽
105

503193011 Painted Hose Protector. Model SE

Painted Hose Protector. Model SE

1 190 ₽
106

515177125 Compressor Module. Model SE

Compressor Module. Model SE

166 600 ₽
