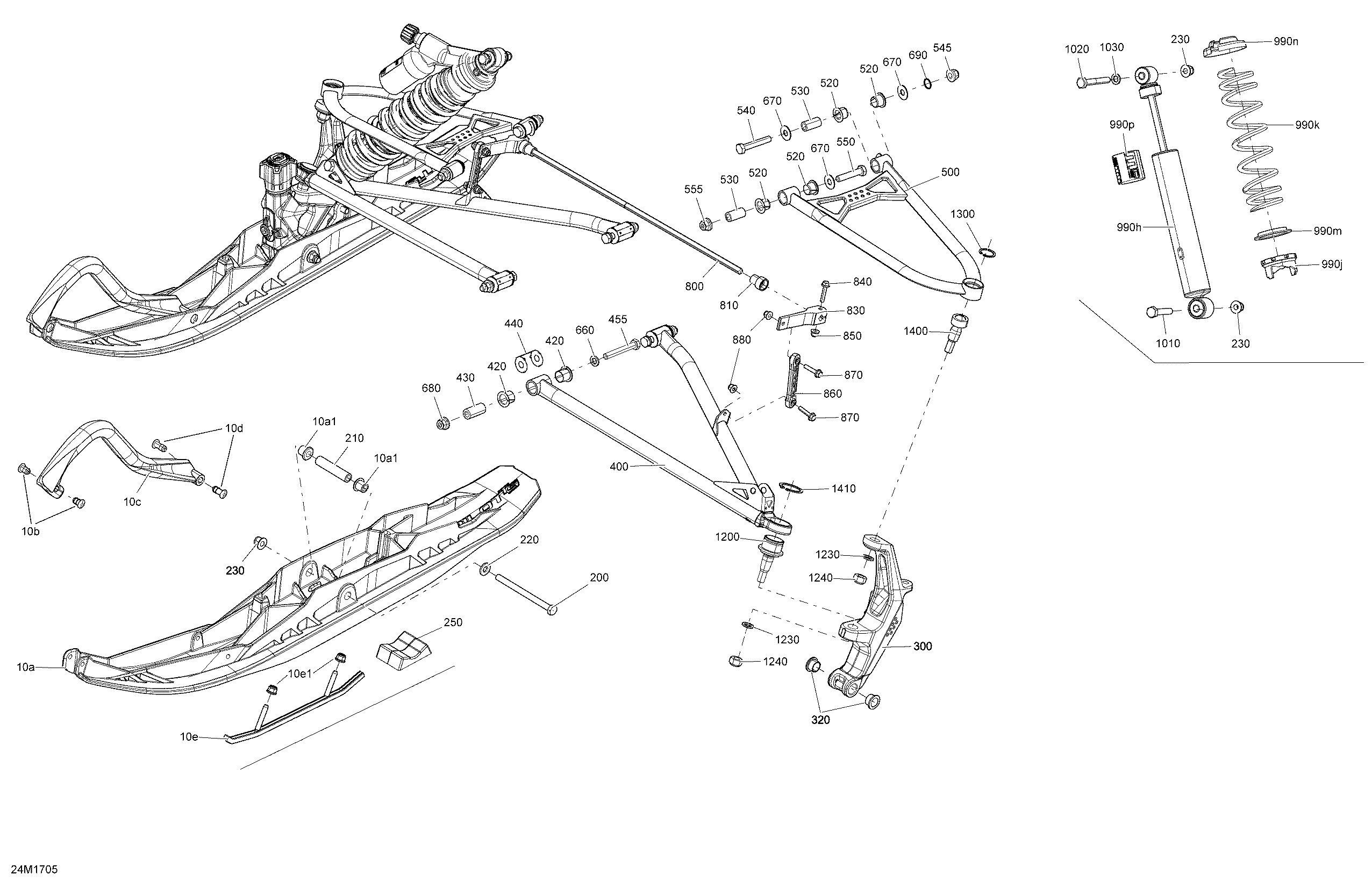

07- Front Suspension And Ski для BRP Ski-Doo MXZ - 2-STROKE - 600HO E-TEC - 2017

№

Артикул

Название
10a

505073227 Black DS 2 Ski. Package X-RS, Model Europe (MYHD). Includes 10a to 10a1

Black DS 2 Ski. Package X-RS, Model Europe (MYHD). Includes 10a to 10a1

43 060 ₽
10a

505073786 Deep Black LH Pilot TS Ski. Package Blizzard, X With Adjustable Ski Pilot TS. Includes 10a to 10a1

Deep Black LH Pilot TS Ski. Package Blizzard, X With Adjustable Ski Pilot TS. Includes 10a to 10a1

13 920 ₽
10a

505073796 Deep Black RH Pilot TS Ski. Package Blizzard, X With Adjustable Ski Pilot TS. Includes 10a to 10a1

Deep Black RH Pilot TS Ski. Package Blizzard, X With Adjustable Ski Pilot TS. Includes 10a to 10a1

12 940 ₽
10a

505072854 Deep Black LH Pilot 5.7 Ski. Package TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1

Deep Black LH Pilot 5.7 Ski. Package TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1

57 960 ₽
10a

505072855 Deep Black RH Pilot 5.7 Ski. Package TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1

Deep Black RH Pilot 5.7 Ski. Package TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1

12 690 ₽
10a1

505071781 Ski Bushing

Ski Bushing

5 570 ₽
10b

505071812 Retainer 17mm long

Retainer 17mm long

1 490 ₽
10c

505070963 Black Handle. Package TNT, X, XRS (MYHC)

Black Handle. Package TNT, X, XRS (MYHC)

11 130 ₽
10c

505072976 Black Handle. Package X-RS, Model Europe (MYHD)

Black Handle. Package X-RS, Model Europe (MYHD)

8 270 ₽
10c

505072102 White Handle. Package Blizzard

White Handle. Package Blizzard

9 350 ₽
10d

505072133 Retainer 23mm Long

Retainer 23mm Long

2 490 ₽
10e

860201044 Carbide Runner Kit (Square Runner). Except Package X-RS (MXHA, MXHC, MXHE, MXHG, MYHC). Includes 10e to 10e1

Carbide Runner Kit (Square Runner). Except Package X-RS (MXHA, MXHC, MXHE, MXHG, MYHC). Includes 10e to 10e1

26 460 ₽
10e

860201220 Carbide Runner Kit (Rond Runner). Package X-RS (MXHA, MXHC, MXHE, MXHG, MYHC). Includes 10e to 10e1

Carbide Runner Kit (Rond Runner). Package X-RS (MXHA, MXHC, MXHE, MXHG, MYHC). Includes 10e to 10e1

19 660 ₽
10e1

233281414 Hex. Flanged Elastic Nut M8 X 1.25

Hex. Flanged Elastic Nut M8 X 1.25

490 ₽
30a

505073789 Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6

Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6

30 020 ₽
30a

505073792 Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6

Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6

30 020 ₽
30a1

505073773 Bushing. With Adjustable Ski Pilot TS

Bushing. With Adjustable Ski Pilot TS

2 260 ₽
30a2

505073771 Shaft. With Adjustable Ski Pilot TS

Shaft. With Adjustable Ski Pilot TS

3 510 ₽
30a3

205562560 Socket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TS

Socket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TS

720 ₽
30a4

505073761 Tip. With Adjustable Ski Pilot TS

Tip. With Adjustable Ski Pilot TS

6 190 ₽
30a5

505073767 Screw. With Adjustable Ski Pilot TS

Screw. With Adjustable Ski Pilot TS

280 ₽
30a6

293300013 O-Ring. With Adjustable Ski Pilot TS

O-Ring. With Adjustable Ski Pilot TS

2 260 ₽
30b

860201178 Carbide Runner Kit, Ajustable TS Ski. With Adjustable Ski Pilot TS

Carbide Runner Kit, Ajustable TS Ski. With Adjustable Ski Pilot TS

19 430 ₽
30d

505073782 Pin. With Adjustable Ski Pilot TS

Pin. With Adjustable Ski Pilot TS

760 ₽
30e

505073772 Black Rubber Grommet. With Adjustable Ski Pilot TS

Black Rubber Grommet. With Adjustable Ski Pilot TS

760 ₽
30f

505073788 Ski Stopper. With Adjustable Ski Pilot TS

Ski Stopper. With Adjustable Ski Pilot TS

1 080 ₽
200

250000703 Hex. Screw M10 X 130

Hex. Screw M10 X 130

3 610 ₽
210

506133300 Spacer

Spacer

5 430 ₽
220

503192496 Washer

Washer

280 ₽
230

233201464 Hex. Elast. Flanged Nut M10 x 1.5

Hex. Elast. Flanged Nut M10 x 1.5

2 650 ₽
250

505072594 Ski Stopper. Without Adjustable Ski Pilot TS

Ski Stopper. Without Adjustable Ski Pilot TS

10 660 ₽
300

505073807 Black LH Ski Leg. Package TNT, Blizzard, X, X-RS

Black LH Ski Leg. Package TNT, Blizzard, X, X-RS

20 490 ₽
300

505073867 White LH Ski Leg. Package Blizzard, X

White LH Ski Leg. Package Blizzard, X

20 640 ₽
300

505073808 Black RH Ski Leg. Package TNT, Blizzard, X, X-RS

Black RH Ski Leg. Package TNT, Blizzard, X, X-RS

20 490 ₽
300

505073868 White RH Ski Leg. Package Blizzard, X

White RH Ski Leg. Package Blizzard, X

20 640 ₽
320

505072690 Leg Bushing

Leg Bushing

6 510 ₽
330

505073779 Leg Stopper

Leg Stopper

1 070 ₽
400

505073426 RH Lower Arm 42'', Black Epoxy. Except Package Sport

RH Lower Arm 42'', Black Epoxy. Except Package Sport

23 350 ₽
400

505073420 LH Lower Arm 42'', Black Epoxy. Except Package Sport

LH Lower Arm 42'', Black Epoxy. Except Package Sport

80 150 ₽
420

505072208 Bushing

Bushing

1 790 ₽
430

505072209 Bushing

Bushing

8 330 ₽
440

505072634 Wear Plate

Wear Plate

1 470 ₽
450

250000291 Screw Hex. M10 X 1.25 X 70

Screw Hex. M10 X 1.25 X 70

570 ₽
500

505073412 LH Upper Arm 42'', Black Epoxy. Except Package Sport

LH Upper Arm 42'', Black Epoxy. Except Package Sport

59 610 ₽
500

505073416 RH Upper Arm 42'', Black Epoxy. Except Package Sport

RH Upper Arm 42'', Black Epoxy. Except Package Sport

59 610 ₽
520

505072250 Bushing

Bushing

1 790 ₽
530

505072143 Bushing

Bushing

6 580 ₽
540

250000290 Screw Hex. M10 X 1.25 X 60

Screw Hex. M10 X 1.25 X 60

610 ₽
545

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
550

250000289 Screw Hex. M10 X 1.25 X 50

Screw Hex. M10 X 1.25 X 50

610 ₽
555

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
660

503189564 Washer

Washer

250 ₽
670

505072392 Washer

Washer

1 540 ₽
680

250100165 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

310 ₽
690

505072448 O-Ring

O-Ring

750 ₽
800

505072602 Stabilisator

Stabilisator

24 150 ₽
810

505072064 Bushing

Bushing

1 500 ₽
830

505072394 Stabilisator Lever

Stabilisator Lever

5 600 ₽
840

207663056 Hex Flanged Screw M6 X 1.0 X 30

Hex Flanged Screw M6 X 1.0 X 30

410 ₽
850

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
860

505072204 Double Ball Joint Link

Double Ball Joint Link

1 520 ₽
870

207663056 Hex Flanged Screw M6 X 1.0 X 30

Hex Flanged Screw M6 X 1.0 X 30

410 ₽
880

233261466 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

1 470 ₽
990a>990a6

505073613 RH Front Shock. Package X-RS. Includes 990a to 990a6

RH Front Shock. Package X-RS. Includes 990a to 990a6

73 830 ₽
990a>990a6

505073612 LH Front Shock. Package X-RS. Includes 990a to 990a6

LH Front Shock. Package X-RS. Includes 990a to 990a6

73 830 ₽
990a1

415093807 O-Ring. Package X-RS

O-Ring. Package X-RS

2 880 ₽
990a2

415093806 Piston Ring. Package X-RS

Piston Ring. Package X-RS

1 280 ₽
990a3

505070398 Air Valve. Package X-RS

Air Valve. Package X-RS

5 950 ₽
990a4

505070399 Screw. Package X-RS

Screw. Package X-RS

350 ₽
990a5

505070400 O-Ring. Package X-RS

O-Ring. Package X-RS

370 ₽
990a6

415093804 O-Ring. Package X-RS

O-Ring. Package X-RS

370 ₽
990b

505073315 Deep Black Spring. Package X-RS, Engine 600HO E-TEC

Deep Black Spring. Package X-RS, Engine 600HO E-TEC

7 620 ₽
990c

503194270 Spring Stopper. Package X-RS

Spring Stopper. Package X-RS

5 600 ₽
990d

516005534 Shock Adjustment Decal. Package X-RS

Shock Adjustment Decal. Package X-RS

4 170 ₽
990e

505072753 Adjustment Knob. Package X-RS

Adjustment Knob. Package X-RS

680 ₽
990f

503193033 Shock Adjuster Knob. Package X-RS

Shock Adjuster Knob. Package X-RS

2 520 ₽
990g

250000644 Allen Screw M3 X 10. Package X-RS

Allen Screw M3 X 10. Package X-RS

740 ₽
990q

505073699 Front Shock. Package TNT, Blizzard

Front Shock. Package TNT, Blizzard

28 290 ₽
990r

505072537 Deep Black Spring. Package TNT, Blizzard

Deep Black Spring. Package TNT, Blizzard

5 610 ₽
990s

706200881 Spring Stopper. Package TNT, Blizzard

Spring Stopper. Package TNT, Blizzard

4 340 ₽
990t

706200785 Cap. Package TNT, Blizzard

Cap. Package TNT, Blizzard

1 590 ₽
990u7>990u12

505073702 Front Shock. Package X. Includes 990u7 to 990u12

Front Shock. Package X. Includes 990u7 to 990u12

40 250 ₽
990u8

414888312 O-Ring. Package X

O-Ring. Package X

1 380 ₽
990u9

503189308 Piston Ring. Package X

Piston Ring. Package X

6 610 ₽
990u10

505070398 Air Valve. Package X

Air Valve. Package X

5 950 ₽
990u11

505070399 Screw. Package X

Screw. Package X

350 ₽
990u12

505070400 O-Ring. Package X

O-Ring. Package X

370 ₽
990v

505072741 Deep Black Spring. Package X

Deep Black Spring. Package X

5 610 ₽
990w

503194270 Spring Stopper. Package X

Spring Stopper. Package X

5 600 ₽
990x

505072753 Adjustment Knob. Package X

Adjustment Knob. Package X

680 ₽
990y

205031060 Socket Screw M3 X 0.5 x 10. Package X

Socket Screw M3 X 0.5 x 10. Package X

200 ₽
1010

207005554 Hex Screw M10 X 1.5 X 55

Hex Screw M10 X 1.5 X 55

2 650 ₽
1020

207006544 Hex. Screw M10 X 1.5 X 65

Hex. Screw M10 X 1.5 X 65

1 050 ₽
1030

503189564 Washer

Washer

250 ₽
1200

505073636 Ball Joint

Ball Joint

40 250 ₽
1230

503192491 Washer

Washer

1 590 ₽
1240

232521464 Hex Elastic Nut M12 X 1.25

Hex Elastic Nut M12 X 1.25

740 ₽
1300

293370070 Circlip

Circlip

2 490 ₽
1400

505072913 Upper Ball Joint

Upper Ball Joint

37 100 ₽
1410

293370035 Circlip

Circlip

1 380 ₽
6000

503192496 Washer

Washer

280 ₽
6001

233201464 Hex. Elast. Flanged Nut M10 x 1.5

Hex. Elast. Flanged Nut M10 x 1.5

2 650 ₽
6002

505072594 Ski Stopper

Ski Stopper

10 660 ₽
6003

233201464 Hex. Elast. Flanged Nut M10 x 1.5

Hex. Elast. Flanged Nut M10 x 1.5

2 650 ₽
